Compact Marine Electric Actuator for Cooling-System Ball and Butterfly Valves

  • Compact Marine Electric Actuator for Cooling-System Ball and Butterfly Valves
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,
Supply Ability 5000PCS/month
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Standard Torque 18Nm To 2500Nm/160in.lbs To 22125in.lbs Standard Time 15S To 75S
Total Weight 1.2KG To 20KG Motor Power 6W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description

Marine used motorized compact actuator for ship, warship and aircraft carrier

Features

  • Quarter turn with mechanical limits for butterfly valve and 2-way/3-way ball valve
  • Hard high pressure die cast aluminum housing with watertight IP67 and NEMA 4X
  • Thermally bonded polyester powder coating, C3 level corrosion resistance with 1000 hours salt spray test
  • Heavy duty fully enclosed squirrel-cage asynchronous motor with thermal overload protection, duty rate 80%, F rate insulation.
  • Over 10000 times full open/close life cycle with rated torque.
  • All metal gear train with self-locking worm gear, stays in last known position once power loss, no additional brake needed
  • World leading EMC performance, 2500V surge test, 4000V EFT test, 4000V ESD test
  • Visual valve position indicator/flat indicator or convex indicator available
  • Manual override standard with wrench or handwheel
  • ISO5211 multi-flange mounting
  • CSA certificated per UL 429 and CSA C22.2/CE marked/RoHS 3 complied

Description

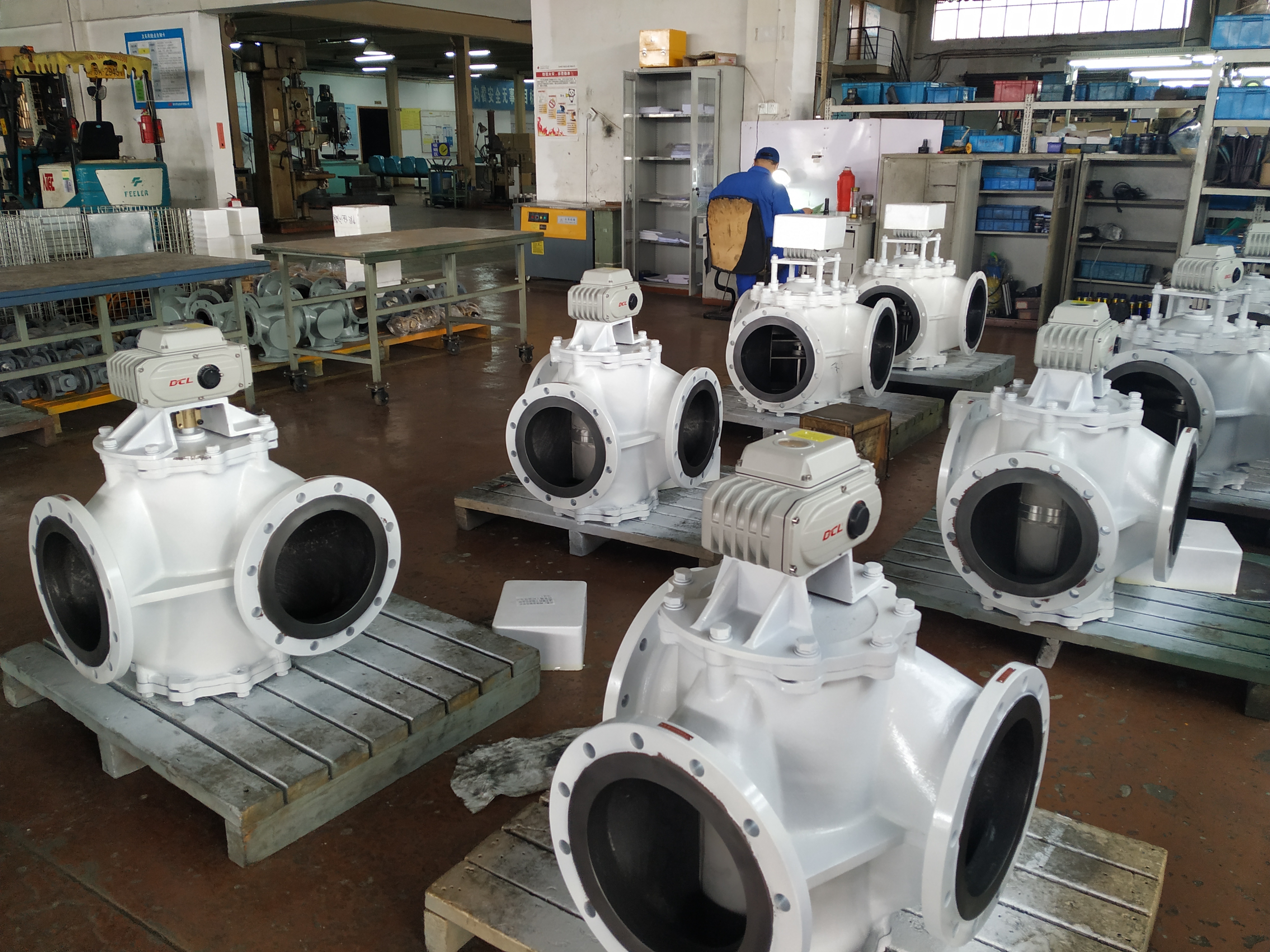

DCL compact marine electric actuators are designed for compatible ball valves, butterfly valves and three-way valves in shipboard cooling and temperature-regulation systems. Typical applications include freshwater, seawater and lubricating-oil circuits serving generator sets, diesel engines and turbine equipment.

The quarter-turn design provides ISO 5211 mounting interfaces for compatible valves. Modulating configurations receive control commands and move the valve to the required opening. The product literature specifies a basic positioning error of no more than ±1% and a repeatability error of no more than 1%. Actual temperature-control performance also depends on valve flow characteristics, sensors, control logic and system load.

The compact aluminum-alloy housing supports integration into marine equipment packages. Enclosure protection, coating, manual operation and electromagnetic compatibility should be confirmed for the selected model to match humidity, salt exposure and shipboard power conditions. For seawater circuits, valve-body materials, internal components and seals require a separate media-compatibility assessment.

DCL participated in drafting Chinese standards for marine electrically controlled butterfly valves and ball valves. Any classification-society approval should be verified against the valid certificate for the complete supplied valve assembly. Approvals held by customer valve assemblies should not be presented as certification of the actuator alone.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC12V/DC24V/AC24V AC110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC12V/DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC12V/DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg DC24V/AC110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-200 90S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-200 DN350~400 DN250 DN900
DCL-300 DN450~600 DN300~350 DN1000~1200
