Smallest modulating 60S 18Nm AC220V Quarter Turn Electric Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Signal | 4-20mA/2-10V/1-5V | Output Signal | 4-20mA |
|---|---|---|---|
| Standard Torque | 15s/18Nm | Power Supply | 24VAC/110VAV/220VAC/380VAC |
| Installation Angle | 360° | Ambient Temperature | -25℃~+55℃ / -13°F~+131°F |
| Protection Grade | IP67 NEMA4/4X | Total Weight | 1.2kg |
| Motor Power | 6W | ||
| High Light | IP67 waterproof Compact Actuator,AC220V Quarter Turn Electric Actuator |
||
Product Description

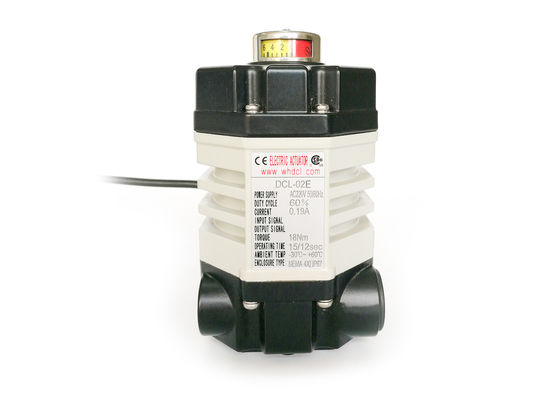

Electric compact actuator with mini control board inside/multiple input signals optional
Features
- Quarter turn with mechanical limits
- Rugged IP67 and NEMA 4X aluminum alloy housing with powder coated
- Modulated by mini smart control board, 4-20mA/2-10V input control signal optional
- All metal self-locking double worm gear
- Heavy duty motor with thermal overload protection
- Visual position indicator/flat and convex optional
- Manual override by wrench
- CSA certified per UL and CSA standard/CE marked/RoHS 3 tested
Description
DCL-02 type electric actuators are the smallest aluminum alloy housing actuators which can be proportional driven by current or voltage signal. Mini control board are self-designed for the body with self-calibrating and problem self-checking functions. The patented hollow shaft design makes the actuator very compact, but can output super torque. Two stage spur gears and double worm gear ensure the end gear will not become abrasion when frequently open and close. Actuator can be used to automate not only ball valve, but also butterfly valve with self-locking gear train.
Actuators are rigorous tested and certified by CSA per UL and CSA standard. Tested by SGS per CE and RoHS 3 requirements.
Specification
| Performance Parameters | |||||
| Type | DCL-02 | DCL-MZZ(Multiple turns) | |||
| Power | DC24V | AC24V | AC110V | AC220V | DC24V |
| Motor Power | 8W | 6W | 6W | 6W | 20W |
| Rated Current | 0.7A | 1.3A | 0.3A | 0.15A | 1.1A |
| Standard Time/Torque | 15S/18Nm | 18Nm | |||
| Optional Time/Torque | 7S/9Nm 60S/18Nm | ||||
| Turning Angle or turns | 0～900 | 3r/min | |||
| Available Control Circuit | Type G | Type of A,B | Type of A,B ,E , | ||
| Total Weight | 1.2kg | ||||
| Insulating Resistance | 100MΩ/250VDC | 100MΩ/500VDC | 100MΩ/250VDC | ||
| Withstand Voltage Class | 500VAC 1 minute | 1500VAC 1 minute | 500VAC 1minute | ||
| Protection Class | IP67 | ||||
| Installation Angle | 3600 at any angle | ||||
| Electric Interface | 7-core cable for connection | ||||
| Ambient Temperature | -25～+55℃ | ||||
| Fuse | 2A | 3A | 1A | 1A | 2A |
