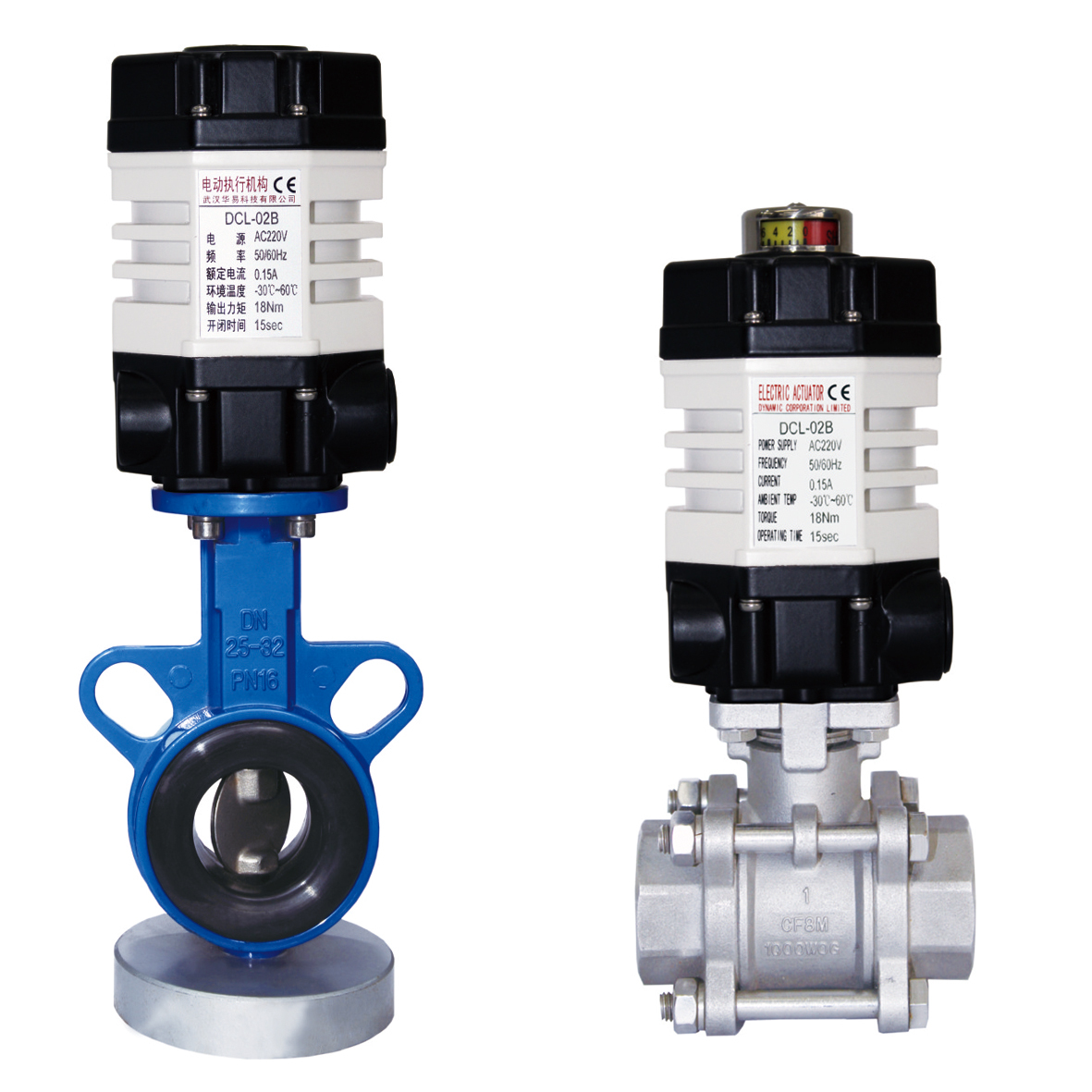

CSA IP67 18Nm Subminiature Quarter-Turn Electric Actuator
Product Details
| Standard Time/Torque | 15S/18Nm | Optional Time/Torque | 7S/9Nm 60S/18Nm |
|---|---|---|---|
| Total Weight | 1.2KG | Power Supply | 24VAC/110VAC/220VAC |
| Motor Power | 6W | Ambient Temperature | -25℃~+55℃ / -13°F~+131°F |
| Installation Angle | 360° | Protection Grade | IP67 NEMA4/4X |
| Highlight | CSA IP67 electric actuator,subminiature quarter-turn actuator,compact 18Nm electric actuator |
||
Product Description
Product Features
-
Standard output of 18 Nm with a 15-second operating time.
-
Maximum torque of 24 Nm.
-
Optional 7 s/9 Nm and 30 s/25 Nm operating configurations.
-
Adjustable 0–90° travel for small ball and butterfly valves.
-
Compact 1.2 kg design for equipment with limited installation space.
-
IP67 enclosure with a stated ambient-temperature range of -25°C to +55°C.
-
Model-dependent DC12V, DC24V, AC24V, AC110V and AC220V power supplies.
-
On-off, intermediate-position and modulating control options.
-
ISO 5211 F03, F04 and F05 direct-mount interfaces.
-
9*9 mm and 11*11 mm drive-square options for valve stems up to 16 mm high.
-
Installation through 360° and a seven-core cable connection.
Product Description
The DCL-02 is a subminiature quarter-turn electric actuator weighing approximately 1.2 kg. It is designed for small ball valves, butterfly valves and other devices requiring adjustable 0–90° rotary motion.
Its standard configuration provides 16 Nm output torque with a 15-second operating time, while the listed maximum torque is 24 Nm. Optional configurations include 7 seconds at 9 Nm and 30 seconds at 25 Nm, allowing the operating speed to be matched to the valve torque requirement.
The actuator has an IP67 enclosure and a stated ambient-temperature range of -25°C to +55°C. Typical applications include water treatment, HVAC, building automation, fire-water systems, industrial equipment and small automated piping systems.
ISO 5211 F03, F04 and F05 direct-mount interfaces are available with 9*9 mm or 11*11 mm drive squares. The permitted valve-stem height is up to 16 mm. The valve flange, stem dimensions and actual operating torque should be checked before ordering rather than selecting the actuator by nominal valve diameter alone.
Depending on the power supply and control circuit, the DCL-02 can provide on-off operation, intermediate-position control or modulating control. Available power supplies include DC12V, DC24V, AC24V, AC110V and AC220V, making the actuator suitable for compact equipment and low-voltage valve-automation systems.
Specification
| Performance Parameters | |||||
| Type | DCL-02 | ||||
| Power | DC24V | AC24V | AC110V | AC220V | DC12V |
| Motor Power | 8W | 6W | 6W | 6W | 8W |
| Rated Current | 0.7A | 1.3A | 0.3A | 0.15A | 1.6A |
| Standard Time/Torque | 15S/18Nm | ||||
| Optional Time/Torque | 7S/9Nm 60S/18Nm | ||||
| Turning Angle or turns | 0～900 | ||||
| Available Control Circuit | Type G | Type of A,B | Type of A,B ,E , | ||
| Total Weight | 1.2kg | ||||
| Insulating Resistance | 100MΩ/250VDC | 100MΩ/500VDC | |||
| Withstand Voltage Class | 500VAC 1 minute | 1500VAC 1 minute | |||
| Protection Class | IP67 | ||||
| Installation Angle | 3600 at any angle | ||||
| Electric Interface | 7-core cable for connection | ||||
| Ambient Temperature | -25～+55℃ | ||||
| Fuse | 2A | 3A | 1A | 1A | |
Features
- Quarter turn operation
- Two auxiliary limit switches to confirm valve position
- Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
- Non-ventilated motor with high starting torque and small inertia force
- All metal self-locking gear train, stays in last known position once power loss
- Valve position indicator/flat indicator or convex indicator available
- Manual override
- Standard ISO5211 direct installation
- CSA certified per UL 429 and CSA C22.2, CE mark
