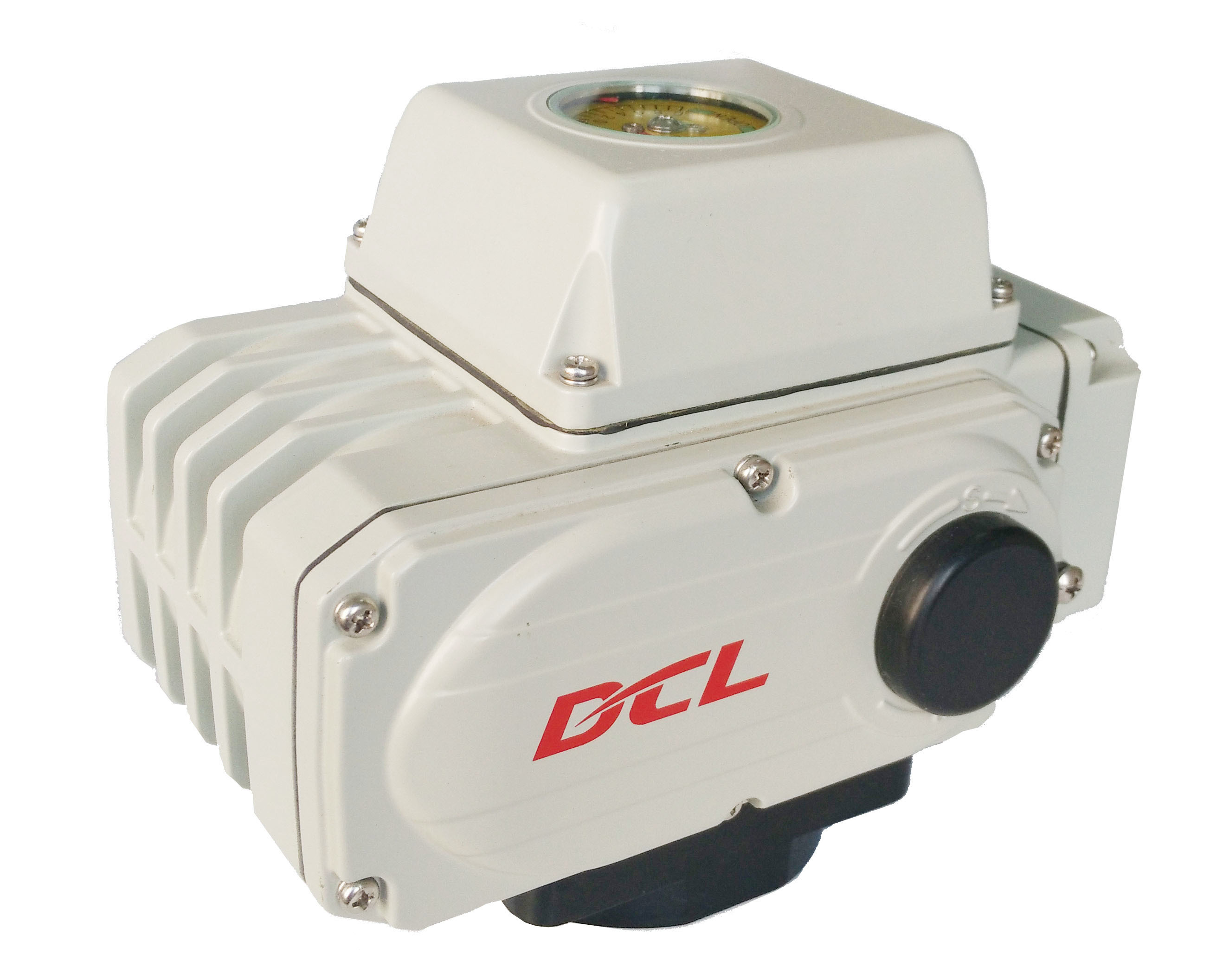

IP67 Weatherproof Quarter-Turn Electric Actuator 16–3000 Nm

• Standard output torque from 16 to 3000 Nm, with maximum torque from 24 to 3900 Nm.
• IP67 enclosure as standard, with IP68 available on selected configurations.
• Stated ambient-temperature range of -25°C to +55°C.
• Designed for ball valves, butterfly valves and other quarter-turn applications.
• ISO 5211 direct-mount interfaces, with flange and drive dimensions depending on the model.
• Available with on-off, position-feedback or modulating control.
• Modulating versions accept 4–20 mA, 1–5 VDC or 2–10 VDC input and provide 4–20 mA feedback.
• Basic modulating error is no more than ±1%, with repeatability error no more than 1%.
• Model-dependent DC12V, DC24V, AC24V, AC110V, AC220V and AC380V power supplies.
• Optional Modbus RTU, over-torque protection, anti-condensation heating, manual operation and fail-safe return.
• Selected quick-opening models provide a 90° operating time as short as two seconds at the specified torque.
• 1/4 turn operation with mechanical limits
• Automate ball valve and butterfly valve to adjust or cut off flow
• All bronze alloy worm sector gear is very durable and resistance to high force friction
• Over 10000 time full open and close life cycles with full rated load with duty rate 80%
• Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
• Corrosion protection robust aluminum alloy with thermally bonded polyester coating
• All metal gear train with self-locking worm gear
• Visual valve position indicator
• Two electric limit switches to confirm valve position, no additional brake required
• Allen handle manual override
• CSA listed/UL complied/CE marked/RoHS 3.0 tested
• Update:The DC12V power supply models DCL-02,DCL-05, DCL-10 and DCL-20 have obtained CSA certification.
• Update:The DC24V power supply models DCL-100/200/300 have obstained CSA certication.

The DCL weatherproof quarter-turn electric actuator is designed for valve automation in water treatment, wastewater systems, HVAC, building automation, power generation, marine equipment, paper processing and general industrial applications.

The range includes models from DCL-02 to DCL-300, with standard output torque from 16 to 3000 Nm. IP67 is standard on the main product range, while IP68 is available on selected configurations. The stated ambient-temperature range is -25°C to +55°C.

ISO 5211 direct-mount interfaces are available for compatible ball valves, butterfly valves and other rotary valves. The flange size, drive square, valve-stem height and required operating torque should be checked before ordering.

Control configurations include on-off operation, passive-contact feedback, resistance feedback and modulating control. Modulating versions accept 4–20 mA, 1–5 VDC or 2–10 VDC commands and provide 4–20 mA valve-position feedback. The specified basic error is no more than ±1%, with repeatability error no more than 1%.

Optional functions include an anti-condensation heater for humid environments, Modbus RTU communication, over-torque protection, manual operation and stored-energy fail-safe return. IP68 should not be interpreted as approval for permanent underwater service unless the required immersion depth and duration are separately confirmed.
