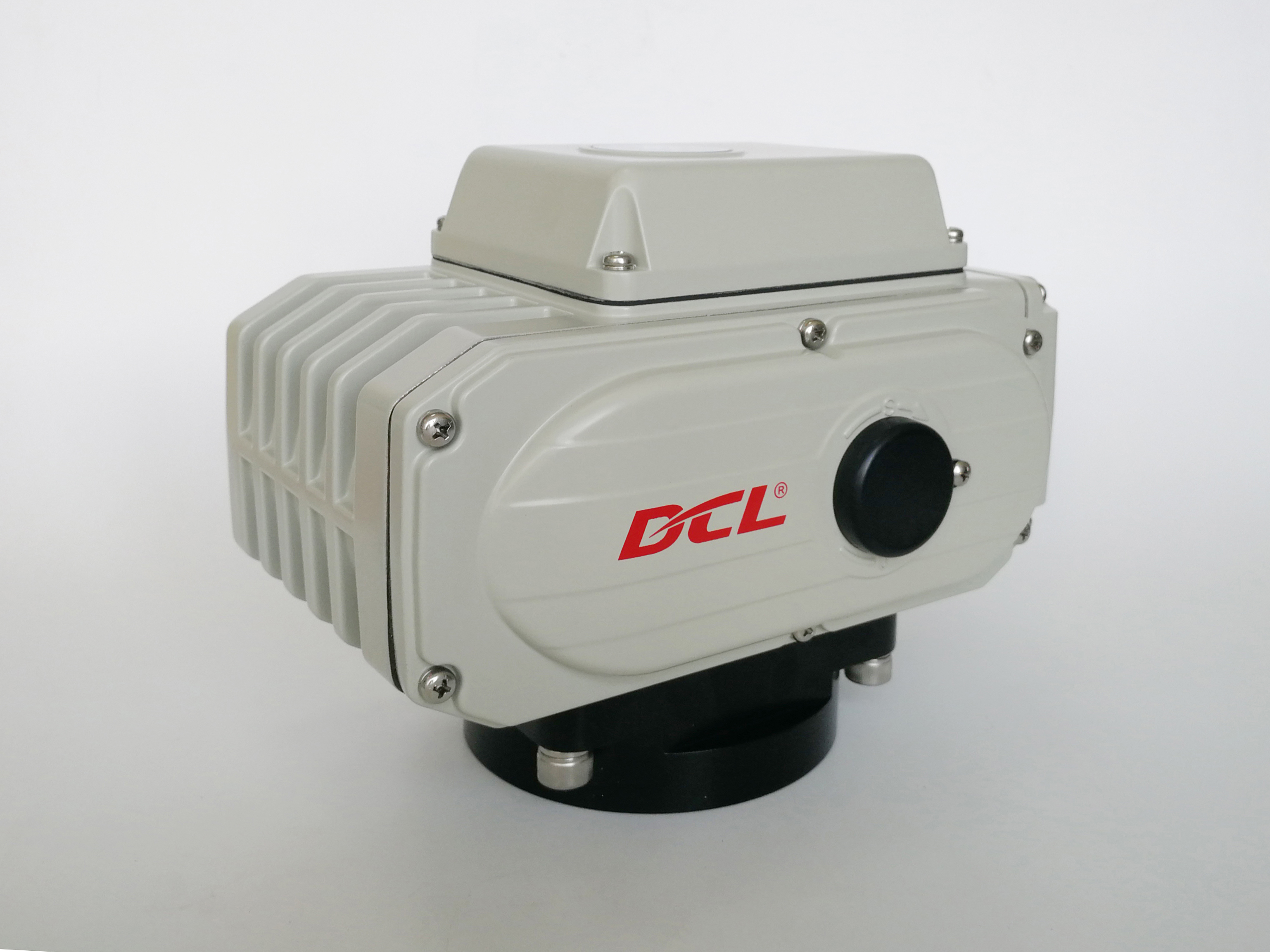

A maintenance-friendly non-ventilated reversible induction motor equipped compact actuator

  • A maintenance-friendly non-ventilated reversible induction motor equipped compact actuator
  • A maintenance-friendly non-ventilated reversible induction motor equipped compact actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Total Weight 1.2KG To 20KG
Motor Power 6W To 140W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description

Compact actuator powered by a maintenance-friendly non-ventilated reversible induction motor

Features

  • 1/4 turn operation with mechanical limits
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • All bronze alloy worm sector gear is very durable and resistance to high force friction
  • Over 10000 time full open and close life cycles with full rated load with duty rate 80%
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Corrosion protection robust aluminum alloy with thermally bonded polyester coating
  • All metal gear train with self-locking worm gear
  • Visual valve position indicator
  • Two electric limit switches to confirm valve position, no additional brake required
  • Allen handle manual override
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
  • Update:The DC12V power supply models DCL-02,DCL-05, DCL-10 and DCL-20 have obtained CSA certification.
  • Update:The DC24V power supply models DCL-100/200/300 have obstained CSA certication.

Description

Compact Electric Actuators for Building Automation Systems

DCL compact electric actuators are engineered for reliable integration into modern building automation systems. Commonly paired with butterfly valves, these actuators provide precise control of indoor temperature, air volume, water flow, and hydraulic balancing in HVAC and building management applications.

High-Frequency Modulating Performance and Long Service Life

Designed for frequent adjustment applications, DCL actuators feature durable motors with a 70% duty cycle, enabling stable operation under repeated modulation conditions. The optimized drive structure supports long-term performance while helping reduce maintenance requirements and overall operating costs throughout the equipment lifecycle.

Reliable Protection for Indoor and Outdoor Applications

Built for diverse installation environments, DCL compact electric actuators are suitable for both indoor and outdoor applications. An optional anti-condensation heater is available to reduce internal moisture accumulation and help protect electrical components in humid environments.

Global Safety Standards and Compliance

DCL HVAC electric actuators are developed according to international safety requirements. The products are tested to meet UL and CSA standards, with CSA certification available. Compliance verification by SGS for CE and RoHS requirements further supports their application in global building automation projects.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC12V/DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC12V/DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC12V/DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg

DC24V/AC110V/

AC220V/AC380V

 Types of A/B/C/D/E/F/H
DCL-200 90S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator
