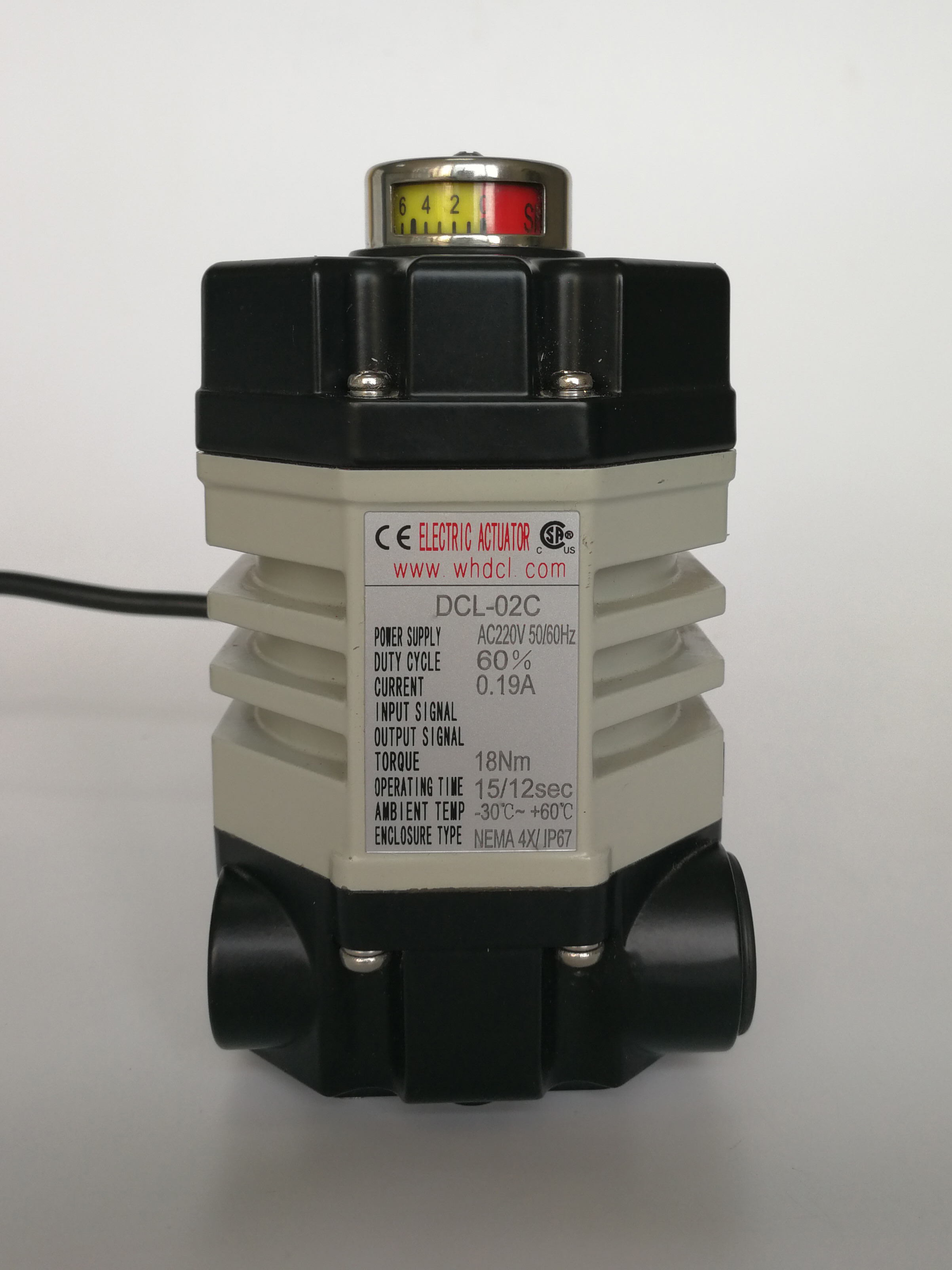

CSA Super torque miniature DC/AC 18Nm electric actuator
Product Details
| Standard Time/Torque | 15S/18Nm | Optional Time/Torque | 7S/9Nm 60S/18Nm |
|---|---|---|---|
| Total Weight | 1.2KG | Power Supply | 24VAC/110VAC/220VAC |
| Motor Power | 6W | Ambient Temperature | -25℃~+55℃ / -13°F~+131°F |
| Installation Angle | 360° | Protection Grade | IP67 NEMA4/4X |
Product Description
Super torque miniature electric actuator with two auxiliary limit switches
Description
The DCL-02 series electric actuator is a compact quarter-turn valve actuator designed for space-limited installations and various industrial automation applications. Featuring a die-cast aluminum alloy housing, the actuator provides IP67 protection with optional IP68 configuration and supports 360° flexible mounting orientation. The ISO5211 standard mounting interface enables quick integration with butterfly valves, ball valves, and other quarter-turn valves. Available with On/Off control, feedback, and 4-20mA modulating control options, the DCL-02 delivers output torque from 15Nm to 25Nm, making it suitable for valve automation applications in HVAC systems, water treatment, industrial equipment, and process control systems.
Specification
| Performance Parameters | |||||
| Type | DCL-02 | ||||
| Power | DC24V | AC24V | AC110V | AC220V | DC12V |
| Motor Power | 8W | 6W | 6W | 6W | 8W |
| Rated Current | 0.7A | 1.3A | 0.3A | 0.15A | 1.6A |
| Standard Time/Torque | 15S/18Nm | ||||
| Optional Time/Torque | 7S/9Nm 60S/18Nm | ||||
| Turning Angle or turns | 0～900 | ||||
| Available Control Circuit | Type G | Type of A,B | Type of A,B ,E , | ||
| Total Weight | 1.2kg | ||||
| Insulating Resistance | 100MΩ/250VDC | 100MΩ/500VDC | |||
| Withstand Voltage Class | 500VAC 1 minute | 1500VAC 1 minute | |||
| Protection Class | IP67 | ||||
| Installation Angle | 3600 at any angle | ||||
| Electric Interface | 7-core cable for connection | ||||
| Ambient Temperature | -25～+55℃ | ||||
| Fuse | 2A | 3A | 1A | 1A | |
Features
- Quarter turn operation
- Two auxiliary limit switches to confirm valve position
- Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
- Non-ventilated motor with high starting torque and small inertia force
- All metal self-locking gear train, stays in last known position once power loss
- Valve position indicator/flat indicator or convex indicator available
- Manual override
- Standard ISO5211 direct installation
- CSA certified per UL 429 and CSA C22.2, CE mark
