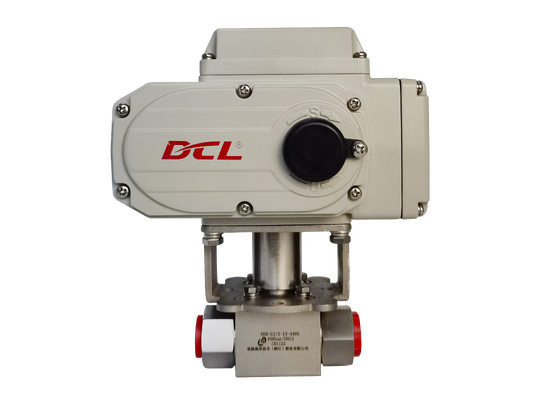

CSA 30S 100Nm Non-ventilated reversible induction type motor equipped compact actuator
Product Details
| Power Supply | 24VAC/110VAV/220VAC/380VAC/24VDC | Installation Angle | 360° |
|---|---|---|---|
| Standard Time/Torque | 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs | Total Weight | 1.2KG To 20KG |
| Motor Power | 6W To 140W | Ambient Temperature | -25℃~+55℃ / -13°F~+131°F |
| Protection Grade | IP67 NEMA4/4X |
Product Description
Non-ventilated reversible induction type motor equipped compact actuator
Features
- 1/4 turn operation with mechanical limits
- Automate ball valve and butterfly valve to adjust or cut off flow
- All bronze alloy worm sector gear is very durable and resistance to high force friction
- Over 10000 time full open and close life cycles with full rated load with duty rate 80%
- Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
- Corrosion protection robust aluminum alloy with thermally bonded polyester coating
- All metal gear train with self-locking worm gear
- Visual valve position indicator
- Two electric limit switches to confirm valve position, no additional brake required
- Allen handle manual override
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
- Update:The DC12V power supply models DCL-02,DCL-05, DCL-10 and DCL-20 have obtained CSA certification.
- Update:The DC24V power supply models DCL-100/200/300 have obstained CSA certication.
Description
DCL compact electric actuators are precision-engineered for seamless integration into modern building automation systems. Frequently paired with butterfly valves, they deliver flawless control over indoor temperature, air volume, water flow, and hydraulic balance.
High-Frequency Precision & Durability To achieve absolute accuracy in modulation, DCL actuators are powered by heavy-duty motors boasting an impressive 70% duty cycle. This enables continuous, high-frequency adjustments without fatigue. Built for an ultra-long service life, these units drastically minimize aftermarket maintenance, effectively driving down your total cost of ownership (TCO).
Rugged Reliability, Indoors and Out Engineered to thrive in harsh conditions, these actuators are fully equipped for both indoor and outdoor installations. An optional anti-condensation heater is available to actively prevent internal moisture and corrosion.
Uncompromised Global Safety When it comes to safety, DCL sets the standard. All DCL HVAC actuators are rigorously tested to stringent UL and CSA standards, hold full CSA certification, and are independently verified by SGS for CE and RoHS compliance.
Specification
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC12V/DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC12V/DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC12V/DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | DC24V/AC110V/ AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-200 | 90S/2000Nm | 19.5Kg | ||||
| DCL-300 | 110S/3000Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~400Nm | 9.5Kg | |||
