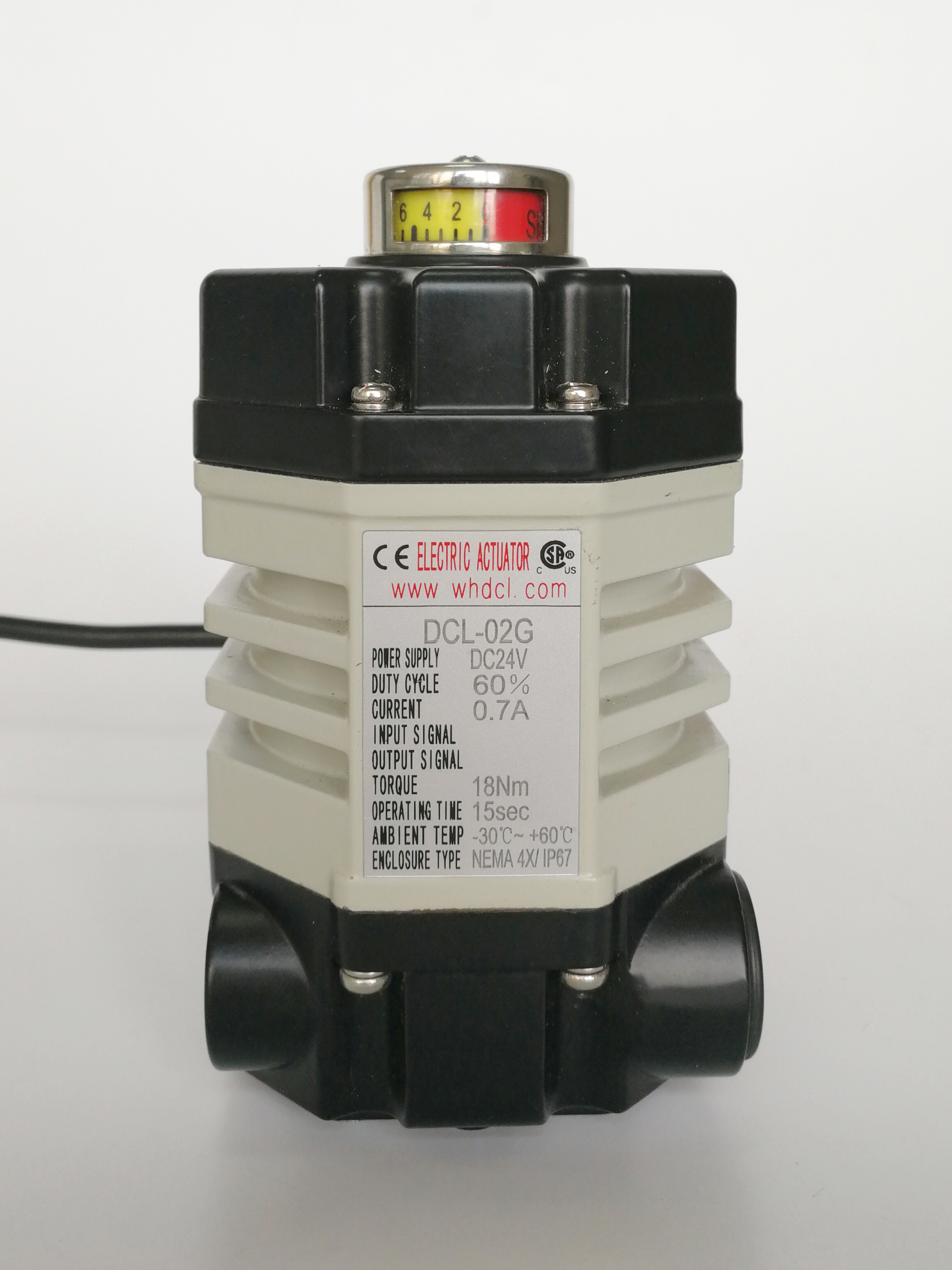

CE CSA RohS DC12V 15S 18Nm Small Quarter Turn Electric Actuator

  • CE CSA RohS DC12V 15S 18Nm Small Quarter Turn Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02G
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000 PCS/month
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VDC / 12VDC Optional
Motor Power 8W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
Highlight

DC12V quarter turn electric actuator

,

15S small electric actuator

,

18Nm torque quarter turn actuator
Leave a Message
Product Description
Features
  • Quarter turn standard, turning angle smaller than 360° optional
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Watertight housing cover with IP67 grade for indoor and outdoor use
  • Two more limit switches to confirm valve position
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Manual operation with handle
  • CE marked/RoHS 3 tested/CSA listed
  • Update:The DC12V power supply models DCL-02,DCL-05, DCL-10 and DCL-20 have obtained CSA certification.
Description

The DCL-02G is custom-engineered for high-security industrial sites that adopt 12VDC or 24VDC safety power supply standards. Its dedicated low-voltage design fundamentally mitigates electrical safety risks, delivering maximum protection for on-site operating personnel.

It is equipped with a built-in rare-earth permanent magnet motor, which produces far higher magnetic flux than ordinary ferrite motors. This enables the actuator to output outstanding torque and achieve high power density while maintaining an ultra-compact structure. In addition, the motor features excellent load stability performance. Unlike conventional DC motors that easily suffer speed deviation under changing loads, the DCL-02G sustains steady running speed amid varying load conditions. Such high operational precision enables smooth valve regulation, effectively reduces equipment vibration, and keeps heat generation at a low level—ensuring stable, efficient and durable operation even in the harshest working conditions.

Performance Parameters
Performance Parameters



Type DCL-02
Power DC24V DC12V AC24V AC110V AC220V
Motor Power 8W 8w 6W 6W 6W
Rated Current 0.7A 1.2A 1.3A 0.3A 0.15A
Standard Time/Torque 15S/18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0～900
Available Control Circuit Type GGEY GGEY Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A
3A 1A 1A
