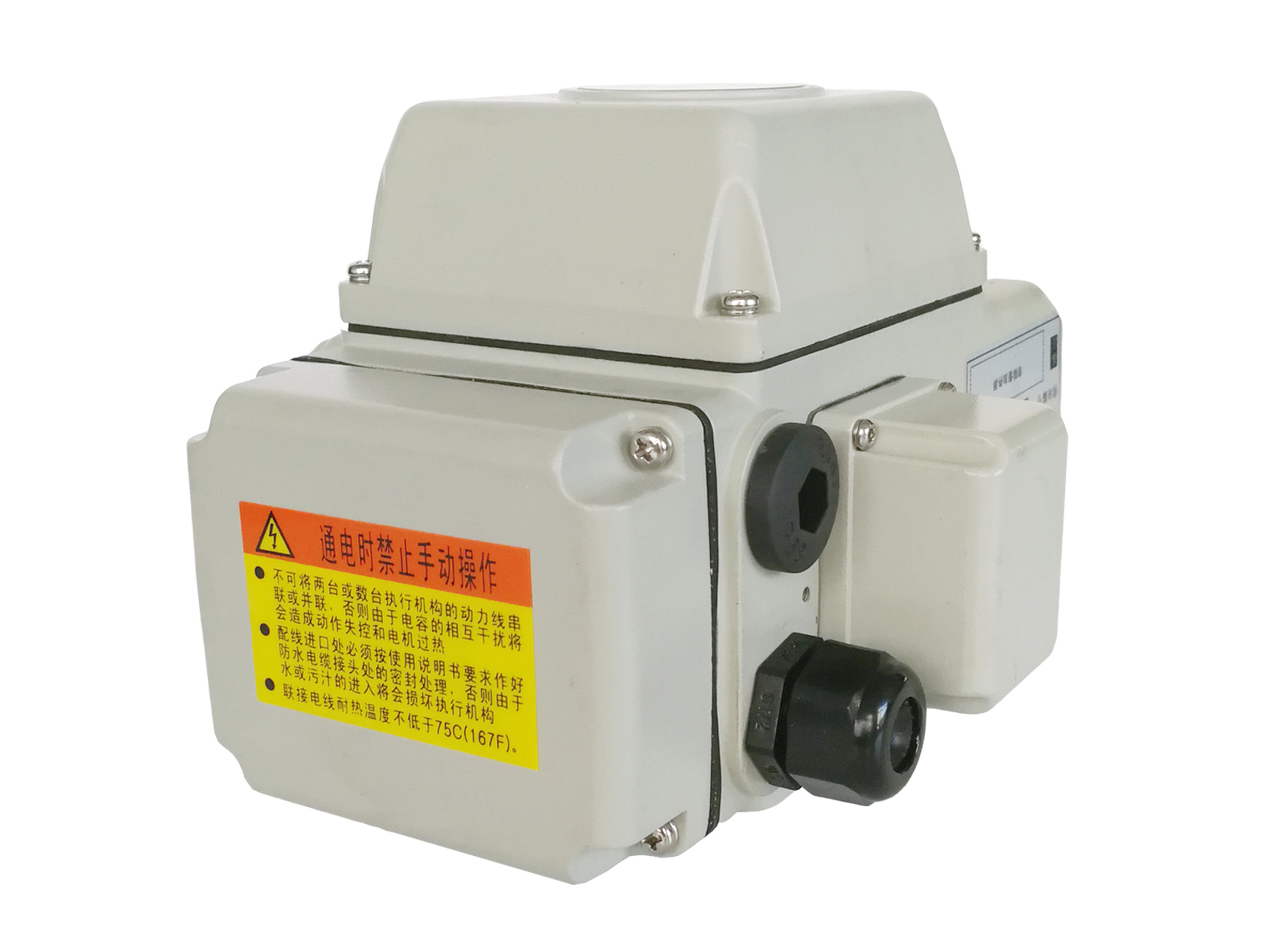

Over Torque Ball Valve 15W 3 Phase Quarter Turn Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10B/20B/40B/60B/100B/160B/250B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total Weight 4.5KG To 20KG Name Electric Quarter Turn Actuator
Use For Butterfly Valve, Ball Valve Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Protection Grade IP67 NEMA4/4X Type Compact
High Light

DC brushless Multi Turn Electric Actuator

,

15W Quarter Turn Actuator

,

compact Quarter Turn Actuator

Leave a Message
Product Description
Watertight compact electric quarter turn actuator / over torque protection optional

Name: Electric Quarter Turn Actuator
Installation Angle: 360°
Use For: Butterfly Valve, Ball Valve
Protection Grade: IP67 NEMA4/4X
Type: Compact
Total Weight: 4.5KG To 20KG
Standard Time/Torque: 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs
Motor Power: 15W To 140W
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Power Supply:

24VAC/110VAV/220VAC





Watertight compact electric quarter turn actuator / over torque protection optional



DCL common series electric actuator are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms. On receipt of a continuous power signal, the motor runs one direction and via an all metal gear box with last stage worm gear train rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.



Features

  • Quarter turn operation with mechanical limits
  • Rugged IP67 watertight, robust die cast aluminum enclosure/100% test under water
  • Two auxiliary limit switches to confirm valve position
  • Visual valve position indicator/flat or convex
  • Manual override/handwheel optional
  • Thermal overload protection heavy duty motor with PTC overheating protector
  • Self-locking all metal gear drive, no additional brake required
  • Over torque protector is optional for actuators torque larger than 100Nm
  • CSA Listed per UL429 and CSA C22.2, CE mark, comply RoHS 3





Application:



DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
