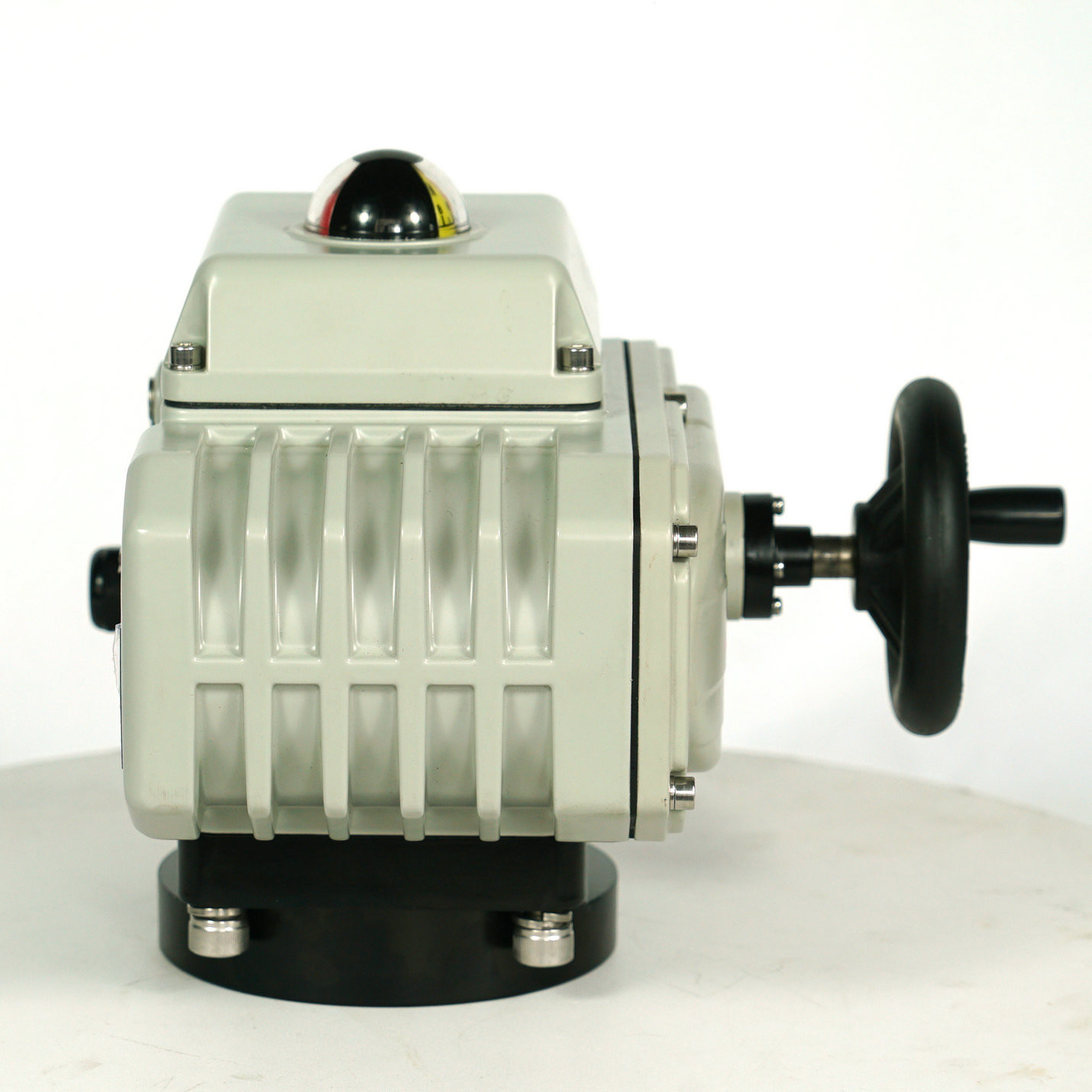

Position Transmitter 20mA Quarter Turn Actuator

  • Position Transmitter 20mA Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-05F/10F/20F/40F/60F/100F/160F/250F
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Angle 360° Application Valve
Feature ISO5211 Direct Installation Motor Power 8W To 140W
Port Size Standard Power Supply 24VAC/110VAV/220VAC
Output Signal 4-20mA Valve Body Butterfly Valve, Ball Valve, Gate Valve
Highlight

DC brushless Multi Turn Electric Actuator

,

20mA Quarter Turn Actuator

,

Position Transmitter Quarter Turn Actuator
Leave a Message
Product Description

Position transmitter equipped quarter turn actuator/4-20mA feedback for valve position



Designed for small quarter-turn applications.
The Actuator can automate the valves requiring up to 100 degree rotation.
To help protect the components and extend the actuator's life, an anti-condensation heater is optional
A thermal protector is provided to protect the motor from over heating.



Standard Time/Torque: 20S To 75S/50Nm To 2500Nm/442in.lbs To 22125in.lbs
Total Weight: 2.5KG To 20KG
Feature: ISO5211 Direct Installation
Port Size: Standard
Protection Grade: IP67 NEMA4/4X
Output Signal: 4-20mA
Installation Angle: 360°
Application: Valve
Motor Power: 8W To 140W
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Power Supply: 24VAC/110VAV/220VAC
Valve Body: Butterfly Valve, Ball Valve, Gate Valve





Description



DCL F model electric actuator is equipped with self-developed position transmitter to output 4-20mA analog signal of valve position. It can be widely used in 3-point floating control system to drive quarter turn butterfly valves, ball valves or dampers. This kind of control system can obtain continuous analog signal of valve position signal to decide when to cut off power or reverse power direction.

The duty cycle of actuator is 70% or higher, For on-off type, actuator can keep working for 20mins without stop. For modulating type, actuator can start 1200times/hour. Whole full range open & close life cycle is over 10000 times and 200000 times start up.





Features

  • Self-developed position transmitter to output 4-20mA signal of valve position
  • High quality alloy steel sleeve and ball bearings, all metal gear drive
  • Heavy duty motor with 70% duty cycle for severe applications
  • High pressure die cast aluminum alloy enclosure with IP67 and type 4X sealing grade
  • Manual override
  • ISO5211 direct installation
  • CSA listed per UL standard/CE marked/RoHS 3.0



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator



About Us:



Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.



DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
