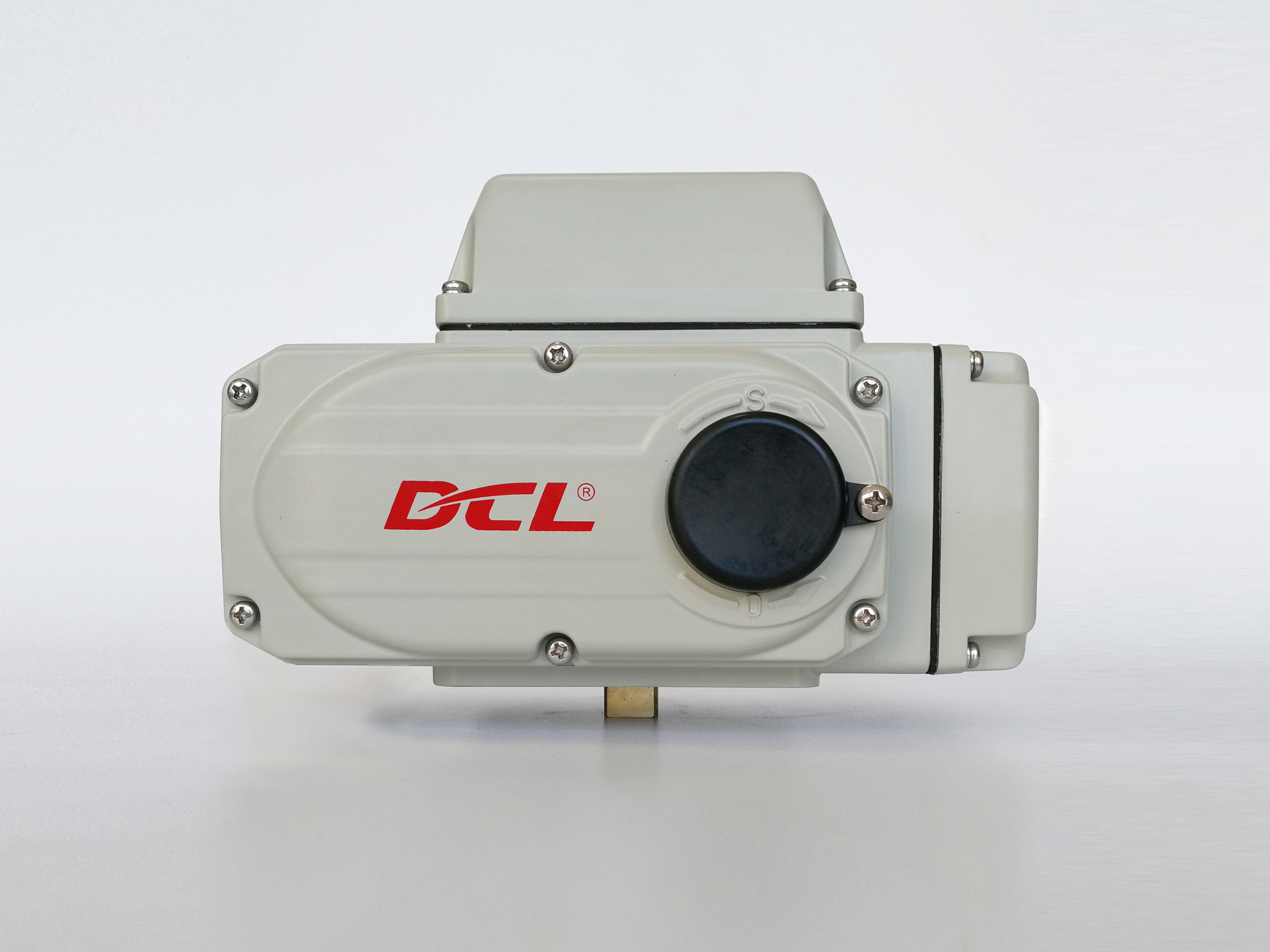

CSA DC12V 30S 100Nm 360° ISO5211 Quarter Turn Actuator

  • CSA DC12V 30S 100Nm 360° ISO5211 Quarter Turn Actuator
  • CSA DC12V 30S 100Nm 360° ISO5211 Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Total Weight 1.2KG To 20KG
Motor Power 6W To 140W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Protection Grade IP67 NEMA4/4X
Highlight

CSA DC12V quarter turn actuator

,

ISO5211 compact actuator

,

100Nm torque quarter turn actuator
Leave a Message
Product Description

Non-ventilated reversible induction type motor equipped compact actuator

Features

  • 1/4 turn operation with mechanical limits
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • All bronze alloy worm sector gear is very durable and resistance to high force friction
  • Over 10000 time full open and close life cycles with full rated load with duty rate 80%
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Corrosion protection robust aluminum alloy with thermally bonded polyester coating
  • All metal gear train with self-locking worm gear
  • Visual valve position indicator
  • Two electric limit switches to confirm valve position, no additional brake required
  • Allen handle manual override
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
  • Update:The DC12V power supply models DCL-02,DCL-05, DCL-10 and DCL-20 have obtained CSA certification.
  • Update:The DC24V power supply models DCL-100/200/300 have obstained CSA certication.

Description

DCL compact electric actuators are engineered for seamless integration into building automation systems, delivering precise control over indoor temperature, air volume, water flow, and hydraulic balance when frequently paired with butterfly valves. To achieve high-precision modulation, these actuators are equipped with heavy-duty motors featuring an 80% duty cycle, supporting continuous, high-frequency adjustments. Built for an ultra-long service life, they minimize aftermarket maintenance requirements and significantly lower the total cost of ownership. Furthermore, these units are ruggedly designed for harsh conditions—suitable for both indoor and outdoor installation—and offer an optional anti-condensation heater to actively prevent moisture and corrosion. Guaranteeing uncompromised global safety and reliability, all DCL HVAC actuators are rigorously tested to UL and CSA standards, hold full CSA certification, and are independently verified by SGS for CE and RoHS compliance.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC12V/DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC12V/DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC12V/DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg

DC24V/AC110V/

AC220V/AC380V

 Types of A/B/C/D/E/F/H
DCL-200 90S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
