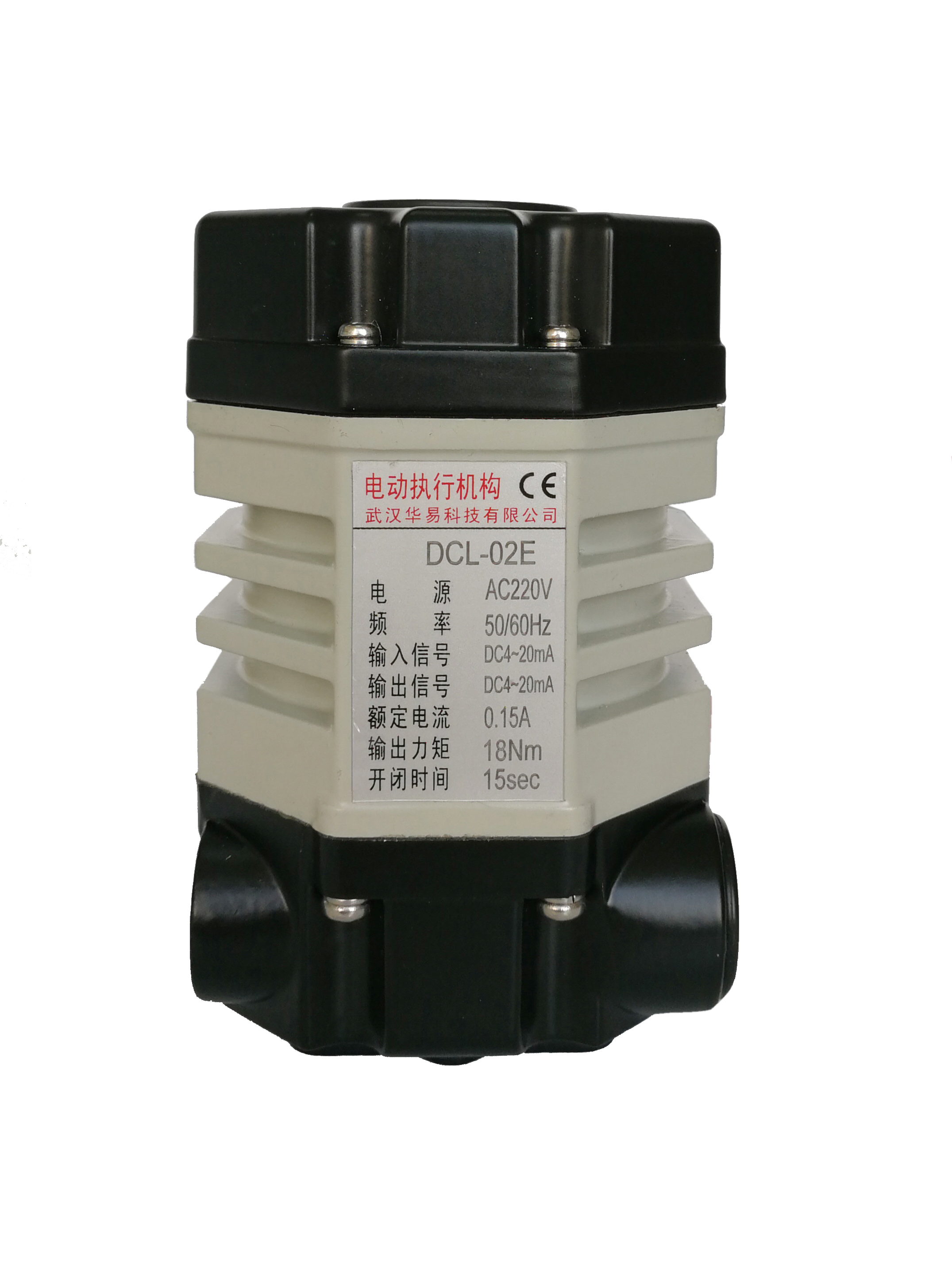

IP67 CE CSA 15S/18Nm DC24V 8W Small Quater Turn Electric Actuator

  • IP67 CE CSA 15S/18Nm DC24V 8W Small Quater Turn Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Power DC24V/AC24V/AC110V/AC220V Time/Torque 15S/18Nm
Optional Torque 7s/9Nm 60s/18Nm Protection Class IP67
Motor Power 8W/6W Ambient Temperature -25℃~+55℃
Medium Gas/Oil/Water/Other Material Of Seal Surface Soft Sealed
Rated Current 0.15A~1.3A Connection Form Flange
Highlight

IP67 waterproof electric actuator

,

quarter turn compact actuator

,

24V DC small actuator
Leave a Message
Product Description
Description

The DCL-02 series electric actuators are engineered for space-constrained valve automation applications, featuring a full aluminum alloy die-cast casing with a subminiature volume smaller than a standard pop can. This series delivers a standard output torque of 16 Nm with a travel time of 15 seconds (optional 25 Nm / 30 seconds), and supports 360° all-round mounting at any angle to adapt to limited-space pipeline layouts. For modular fluid automation, the actuator features a standardized interface fully compliant with ISO5211 specifications , directly driving butterfly valves up to DN40 and ball valves up to DN32.

Engineered with a standard IP67 enclosure protection rating (IP68 optional), the DCL-02 series is widely deployed for precision regulation of liquid level, flow, and pressure within industrial HVAC, fire fighting, and water treatment systems, as well as chemical and food processing machineries. For control loop integration, the modulating versions (Type E/GEY) incorporate an on-board industrial servo-controller fully protected via a robust resin plastic package to resist shock and humidity. It supports standardized 4-20mA, 1-5V, or 2-10V DC input/output control loops, ensuring precise valve positioning and dead-beat orientation during continuous modulating processes.

Product specification
Type DCL-02
Power DC24V AC24V AC110V AC220V
Motor Power 8W 6W 6W 6W
Rated Current 0.7A 1.3A 0.3A 0.15A
Standard Time/Torque 15S/18Nm
Optional Time/Torque 7S/9Nm   60S/18Nm
Turning Angle or turns 0～90°
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute
Protection Class IP67
Installation Angle 360° at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A
Features
  • Subminiature in Volume(Smaller than a pop Can)
  • Super Torque (18Nm/15S)
  • Super Protection Performance (Full Aluminum alloy Casing)
  • Can choose open display device of adjustable convex type
  • IP68 water-proof cable connector
  • Mannual operation handle

Smallest 60S 18Nm AC220V Quarter Turn Electric Actuator Smallest 60S 18Nm AC220V Quarter Turn Electric Actuator
