CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator

  • CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02G
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000 PCS/month
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VDC / 12VDC Optional
Motor Power 8W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description

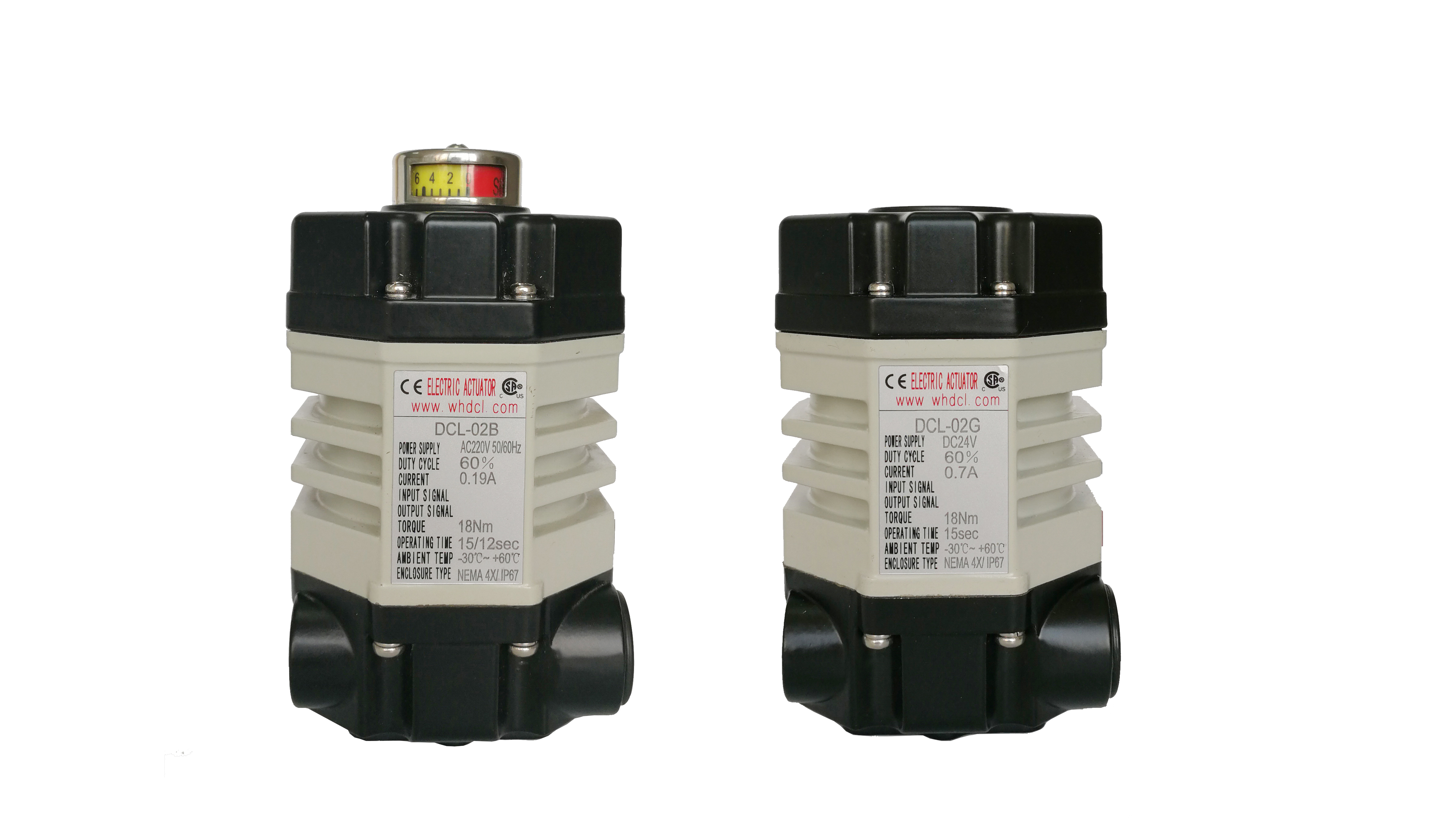

24VDC/12VDC aluminum alloy housing ultra-small electric Quarter Turn Actuator

DCL-02 dimension and parameters.pdf

Features
  • Quarter turn standard, turning angle smaller than 360° optional
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Watertight housing cover with IP67 grade for indoor and outdoor use
  • Two more limit switches to confirm valve position
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Manual operation with handle
  • CE marked/RoHS 3 tested/CSA listed
Description

The DCL-02G is purpose-built for high-security industrial environments requiring 12VDC or 24VDC safety power supplies. Its low-voltage architecture inherently eliminates electrical hazards, ensuring uncompromising safety for on-site personnel.

At its core is a rare-earth permanent magnet motor, which generates significantly higher magnetic flux than conventional ferrite alternatives. This allows the actuator to deliver superior torque and high power density within a remarkably compact footprint. Furthermore, the motor is engineered for exceptional load stability. Unlike standard DC motors prone to speed fluctuations, the DCL-02G maintains a consistent operating velocity regardless of load variations. This precision ensures fluid valve control, minimized vibration, and a notably low thermal footprint—delivering reliable, efficient performance in the most demanding applications.

Performance Parameters
Performance Parameters



Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm 　
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E , 　
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A
