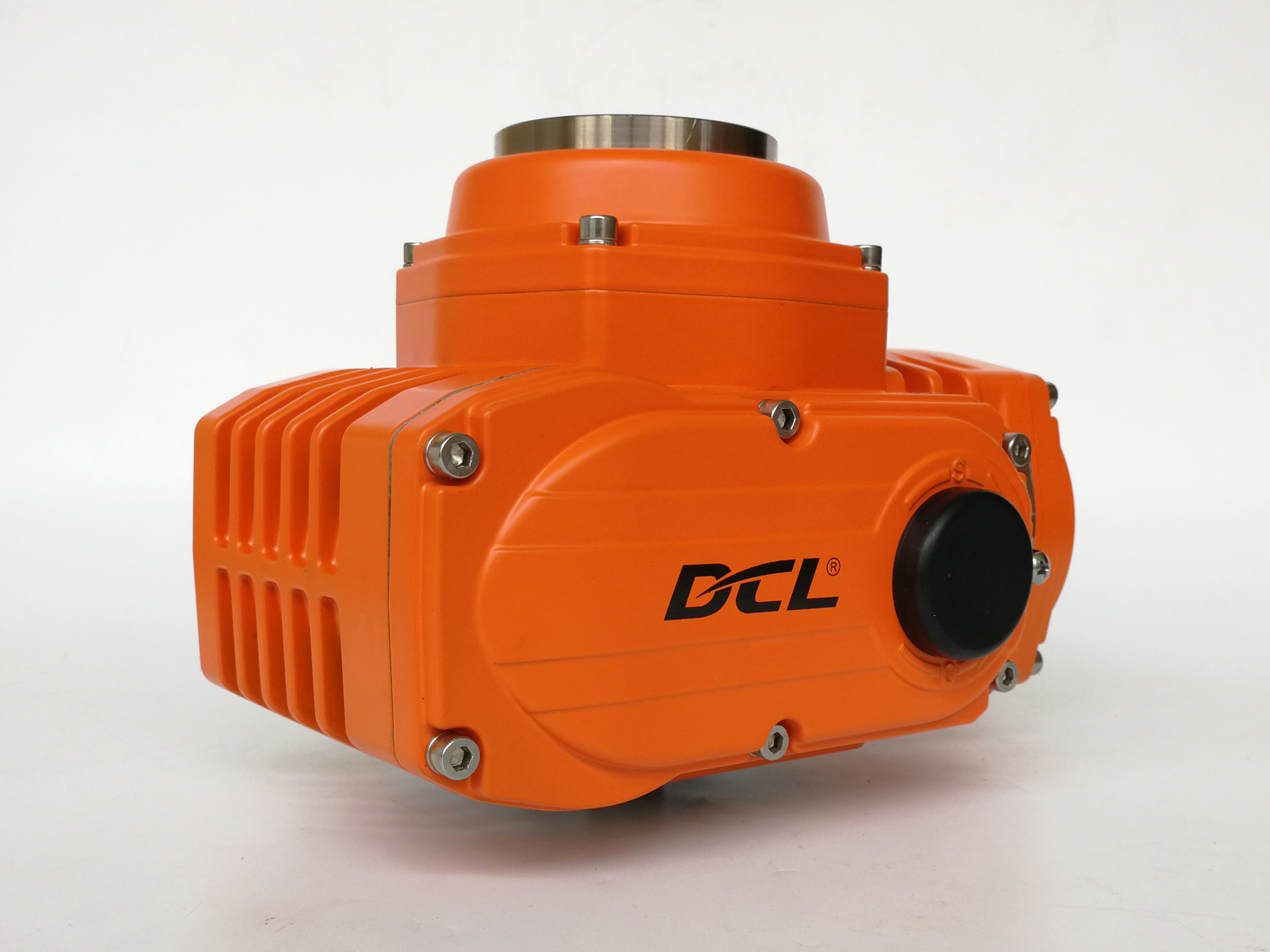

AC110V ExdⅡC T4 400Nm 30S Explosion Proof Valve Actuator

• Quarter turn operation with mechanical limits
• Cylinder stop type connection surfaces of every housing cover, flame proof gap and length complied to UL and CSA standard
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
• 10mm high strength glass lens for valve position indicator, keep strong hardness both in low temperature(-22F) and high temperature(140F).
• Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
• Non-ventilated motor with fire treatment.
• Heavy duty motor with thermal overload protection
• Duty rate is 70%, S2 short time duty with continuous operation less than 15mins and S4 intermittent type operation with 1200times/hour.
• ISO5211 multi flange mounting.
• Over torque protection is available
• Anti-condensation heater is optional
• Manual override with Allen wrench or handwheel
• CSA certification in process per UL standard/ATEX marked

DCL Explosion-proof Actuators are engineered for use in over 90% of explosive gas environments (excluding underground collieries). Both motors and electronic components are housed in fire-rated enclosures. The machining precision of all mating surfaces is strictly controlled and inspected throughout the supply chain to ensure flameproof gaps are tight enough to contain internal sparks.

The aluminum housing is high-pressure die-cast using significantly higher tonnage than standard series, resulting in a denser structure capable of withstanding extreme internal explosion pressures. All flamepaths and joints are designed in accordance with ATEX and UL standards, having undergone precision machining and rigorous testing prior to assembly. For seamless integration, the actuators feature standard ISO5211 multi-flange mounting and a double square drive for easy installation.
