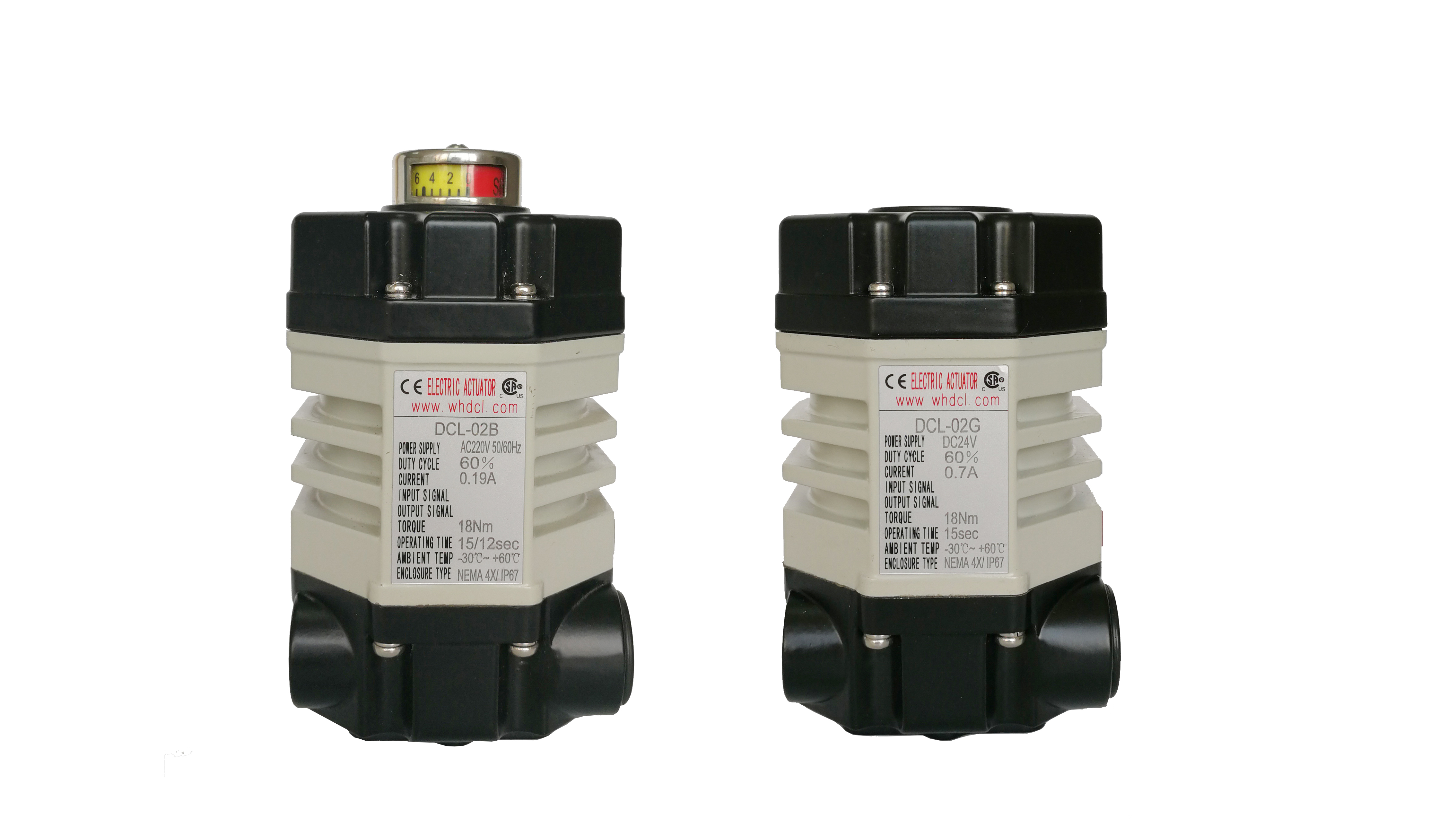

CSA Super Torque Miniature 15S 18Nm Electric Actuator

  • CSA Super Torque Miniature 15S 18Nm Electric Actuator
  • CSA Super Torque Miniature 15S 18Nm Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VAC/110VAC/220VAC
Motor Power 6W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description
Super torque miniature electric actuator with two auxiliary limit switches
Description

The DCL-02B is designed to drive valves or swinging arms with a travel angle of up to 90°. The motor features an automatic shut-off mechanism triggered by internal cams and limit switches. For enhanced reliability, two additional passive auxiliary limit switches are integrated to provide precise valve position feedback.

Its unique, ultra-compact design incorporates a final-stage worm gear drive to ensure superior self-locking performance. DCL also offers customized solutions to meet specialized requirements; all actuator series can be configured with a programmable intermediate position between the fully open and fully closed states. Furthermore, wiring diagrams can be tailored to specific customer demands.

Actuators with intermediate position control are ideal for applications requiring multi-port flow management, such as T-type 3-way ball valves. All units are rigorously tested and certified by CSA to meet stringent UL and CSA standards.

Specification
Performance Parameters
Type DCL-02 DCL-MZZ (Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm 　
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E , 　
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A
Features
  • Quarter turn operation
  • Two auxiliary limit switches to confirm valve position
  • Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
  • Non-ventilated motor with high starting torque and small inertia force
  • All metal self-locking gear train, stays in last known position once power loss
  • Valve position indicator/flat indicator or convex indicator available
  • Manual override
  • Standard ISO5211 direct installation
  • CSA certified per UL 429 and CSA C22.2, CE mark

CSA Super Torque Miniature 15S 18Nm Electric Actuator 0

CSA Super Torque Miniature 15S 18Nm Electric Actuator 1
