Air Conditioning 10000 Times 110VAC HVAC Actuator

  • Air Conditioning 10000 Times 110VAC HVAC Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL common series actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000 PCS/month
Product Details
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Installation Angle 360°
Total Weight 1.2KG To 20KG Motor Power 6W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Highlight

110VAC HVAC quarter turn actuator

,

10000 cycle HVAC actuator

,

110VAC air conditioning actuator
Leave a Message
Product Description

HVAC used quarter turn actuator/air conditioning/building automation/water heating

Features

  • 1/4 turn operation with self-locking
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Over 10000 times full range life cycle with full rated load
  • Resistance to extra low and high temperature and high moisture environment
  • Standard manual handle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL compact electric actuators are widely used in HVAC systems, typically paired with butterfly valves. In building automation systems (BAS), they play a critical role in controlling indoor temperature, air volume, water flow, condensate flow, and hydraulic balancing.

DCL actuators are equipped with heavy-duty motors featuring an 80% duty cycle, allowing frequent modulation for more precise temperature control and improved system stability.

Their extended service life significantly reduces maintenance requirements and lowers overall operating costs. Designed for both indoor and outdoor installation, DCL actuators are built to withstand harsh environmental conditions.

An optional anti-condensation heater is available to prevent damage caused by moisture buildup.

All HVAC actuators are rigorously tested to UL and CSA standards, certified by CSA, and comply with CE and RoHS requirements, with testing conducted by SGS.

Specification:

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm
19.5Kg
DCL-250 75S/2500Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200

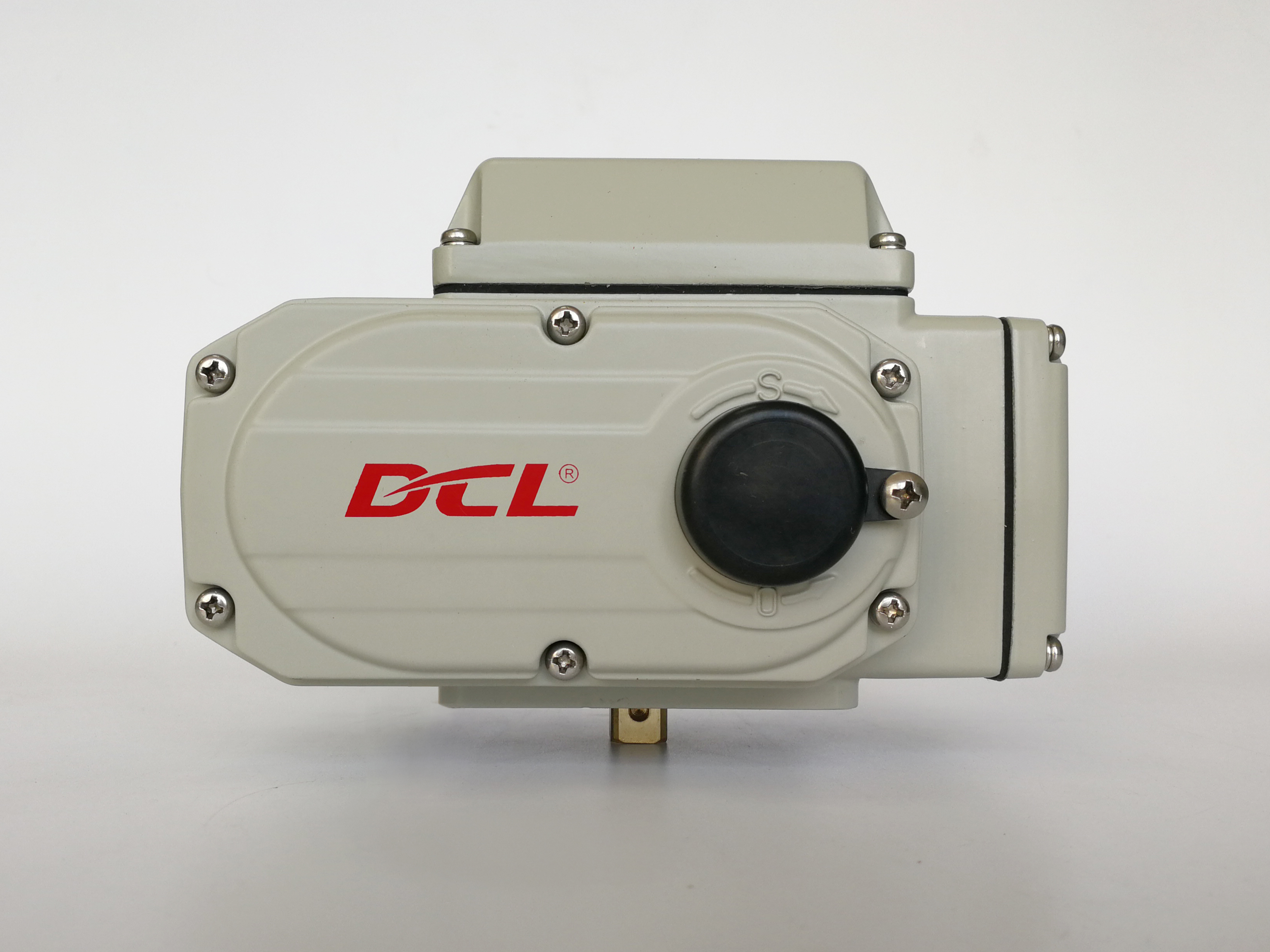

Air Conditioning 10000 Times 110VAC HVAC Actuator 0
