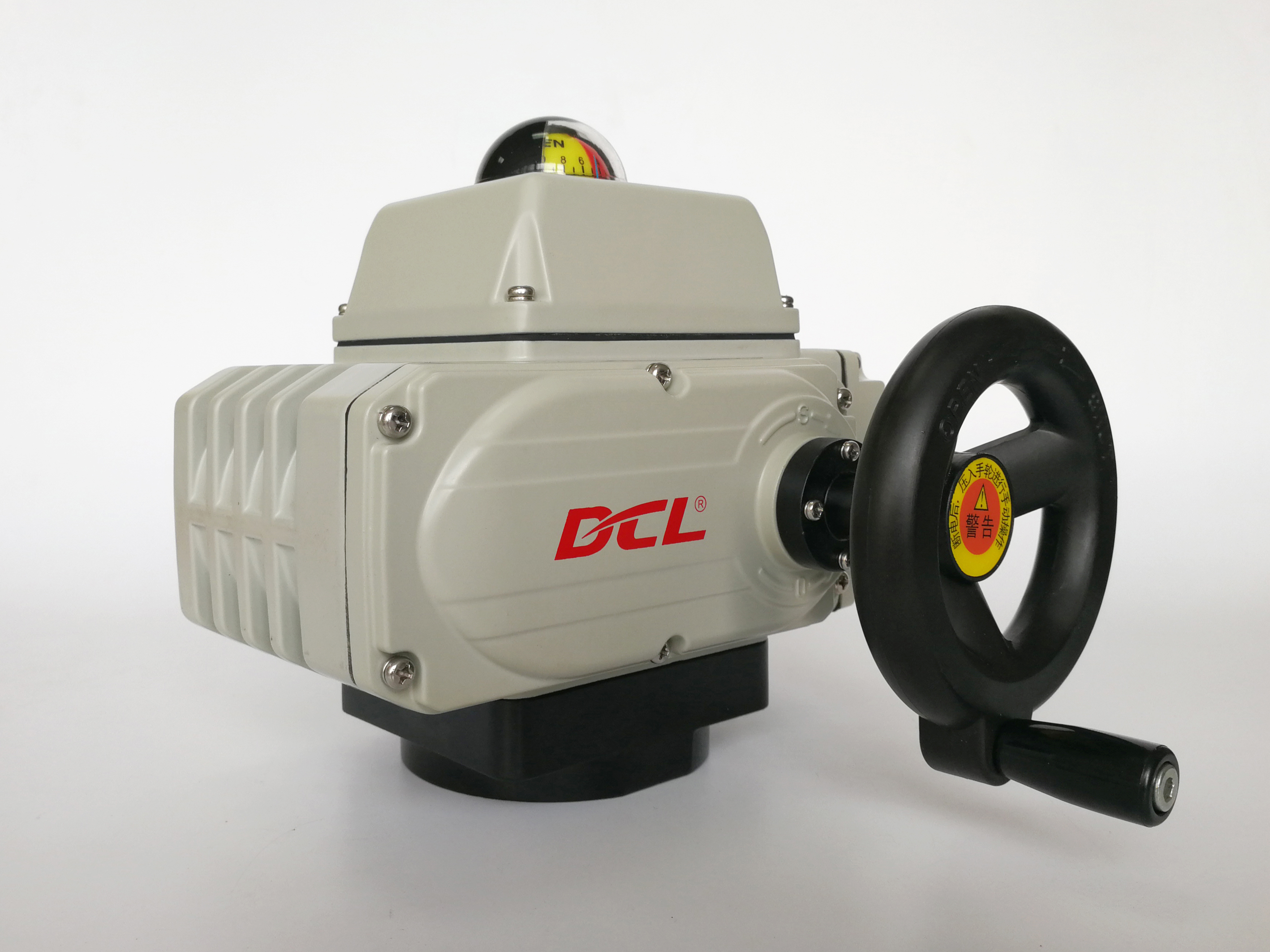

30S 100Nm AC220V CSA Compact Actuator

Features

• Quarter turn operation with mechanical limits
• Rugged IP67 watertight, robust die cast aluminum enclosure/100% test under water
• Two auxiliary limit switches to confirm valve position
• Visual valve position indicator/flat or convex
• Manual override/handwheel optional
• PTC electronic heating component optional for anti-condensation
• Thermal overload protection heavy duty motor with PTC overheating protector
• Self-locking worm gear makes actuator stays in its last position when power lose
• Over torque protector is optional for actuators torque larger than 100Nm
• Local emergency power off button optional
• CSA certified per UL standard/CE marked

Description

DCL General-Series Actuators: Engineered for Longevity

DCL electric actuators are designed for high-precision operation of quarter-turn devices, including butterfly valves, ball valves, and dampers. The core transmission features a robust all-metal gearbox driven by a reversing motor, with a precision-engineered worm-gear set as the final stage.

Recognizing that the final-stage gear is the most vulnerable component due to concentrated torque and friction, DCL has optimized longevity through two critical innovations:

• High-Strength Monolithic Bronze Alloy: Unlike standard gears that are merely surface-plated, DCL uses a solid, cast copper-alloy (bronze) worm wheel. This eliminates the risk of plating delamination and ensures superior wear resistance and stable frictional performance over millions of cycles.

• Enhanced Radius (Long-Arm) Geometry: By increasing the effective radius of the worm wheel, DCL reduces the radial force exerted on individual gear teeth for any given torque. This lower tooth-stress design significantly minimizes fatigue and mechanical wear.

The synergy of our large-diameter bronze wheel and a precision-hardened worm shaft delivers a durable, low-noise, and maintenance-free transmission system that far outlasts conventional alternatives.

Specification
