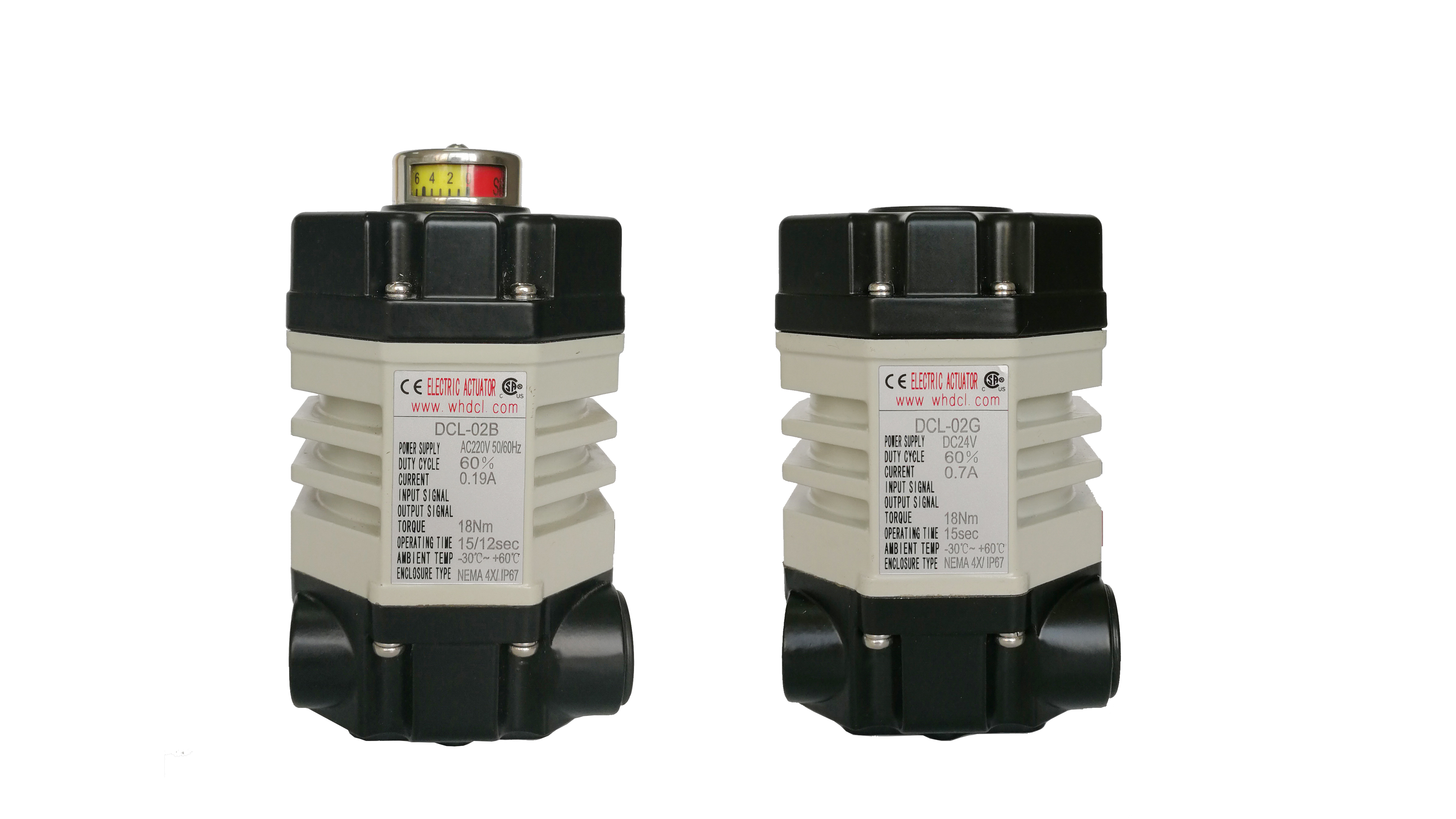

IP67 Super Torque Miniature 15S 18Nm DC24V Valve Actuator

  • IP67 Super Torque Miniature 15S 18Nm DC24V Valve Actuator
  • IP67 Super Torque Miniature 15S 18Nm DC24V Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VAC/110VAC/220VAC
Motor Power 6W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
Highlight

IP67 waterproof valve actuator

,

15S 18Nm compact actuator

,

DC24V miniature torque actuator
Leave a Message
Product Description
Super torque miniature electric actuator with two auxiliary limit switches
Description

DCL-02B Compact Actuators are designed for valves or swinging arms with a full-range rotation of up to 90°. The motor is precisely controlled by internal cams and limit switches, featuring two additional passive auxiliary switches for reliable position confirmation.

Its unique, ultra-compact design incorporates a final-stage worm gear to ensure robust self-locking. DCL offers comprehensive customization services, including bespoke wiring diagrams and a pre-set middle position (ideal for applications like T-type 3-way ball valves). All units are rigorously tested and certified by CSA to meet UL and CSA standards.

Specification
Performance Parameters

 DCL-02 DCL-MZZ (Multiple turns)
DC24V AC24V AC110V AC220V
Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm 　
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E , 　
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A
Features
  • Quarter turn operation
  • Two auxiliary limit switches to confirm valve position
  • Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
  • Non-ventilated motor with high starting torque and small inertia force
  • All metal self-locking gear train, stays in last known position once power loss
  • Valve position indicator/flat indicator or convex indicator available
  • Manual override
  • Standard ISO5211 direct installation
  • CSA certified per UL 429 and CSA C22.2, CE mark

IP67 Super Torque Miniature 15S 18Nm DC24V Valve Actuator 0

IP67 Super Torque Miniature 15S 18Nm DC24V Valve Actuator 1

Tags:

IP67 waterproof Compact Actuator

DCL Compact Actuator

ISO5211 Compact Actuator
