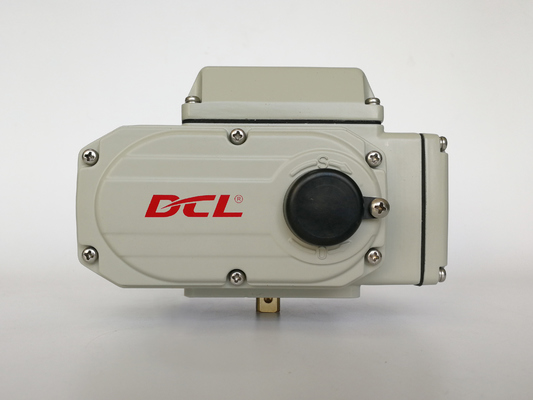

IP67 90° 360° DC12V 1/4 Turn 600Nm Compact Actuator

  • IP67 90° 360° DC12V 1/4 Turn 600Nm Compact Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10/20/40/60/100/160/250
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs Installation Angle 360°
Total Weight 4.5KG To 20KG Motor Power 15W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Leave a Message
Product Description
Compact actuator with local emergency power off button/manual override standard
Features
  • 1/4 turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Local button to cut off power when emergency issue happens for local/remote control switch
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Over 10000 times full range life cycle with full rated load
  • Valve position indicator/flat or convex
  • Standard ISO5211 direct mounting
  • Standard manual handle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
Description

DCL compact electric actuators are widely used in the HVAC field, typically paired with butterfly valves. In modern building automation systems, these actuators precisely control indoor temperature, air volume, water flow, condensate flow, and hydraulic balance, ensuring efficient and reliable system performance.

DCL actuators can be equipped with a standard handwheel for both general-purpose and explosion-proof models. To enhance safety during manual operation, an emergency power-off button is provided to prevent accidental activation. The button is conveniently located at the rear of the actuator, making it easy to access.

When manual operation is needed and the power status of the actuator is uncertain, simply press the power-off button to ensure safety. Under normal conditions, the handwheel remains disengaged from the worm gear. By pushing the handwheel inward, it engages with the worm gear, allowing manual control of the output shaft and connected valve.

Specification
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm
19.5Kg
DCL-250 75S/2500Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
