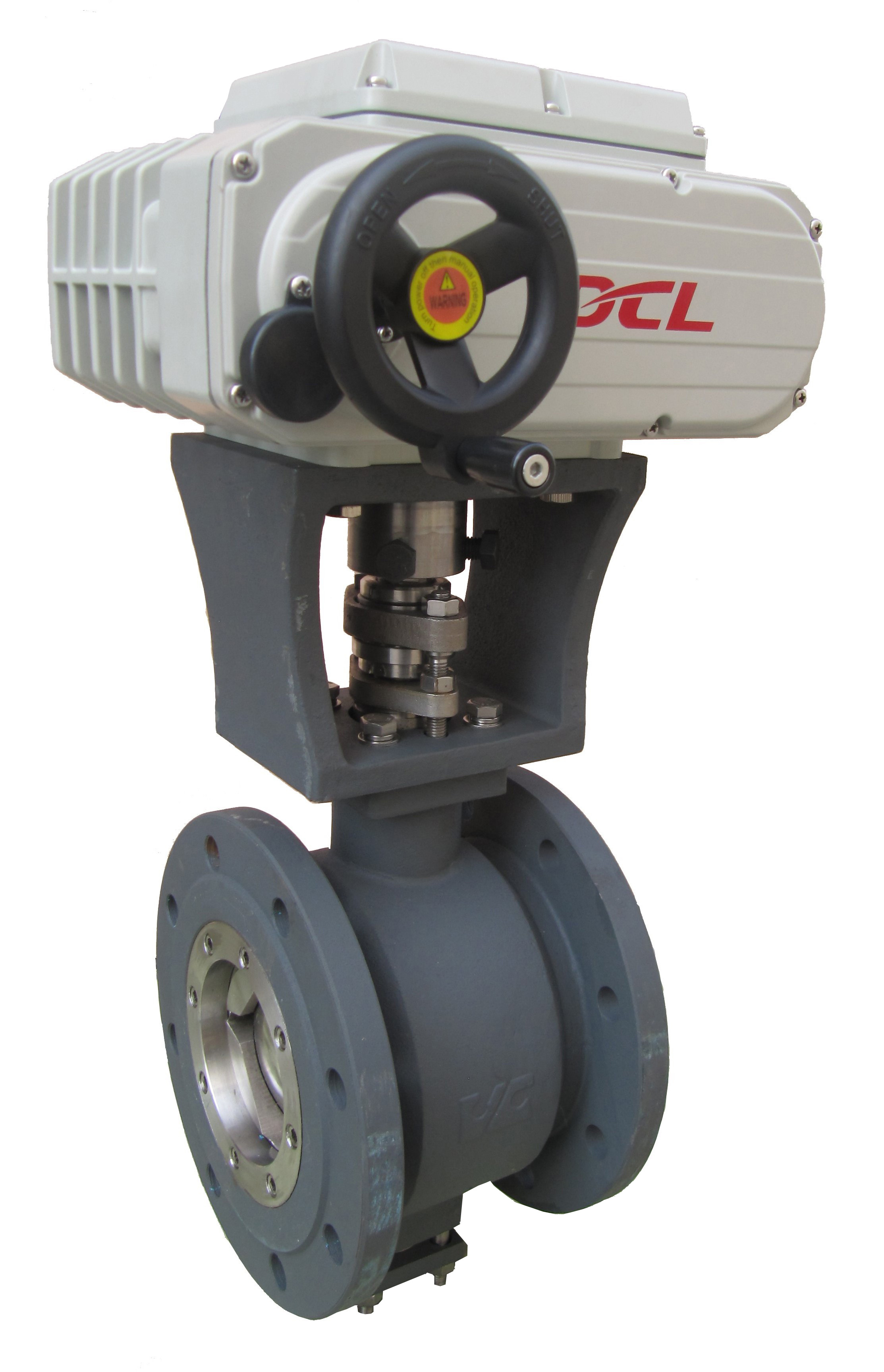

1300Nm Modbus-RTU Quarter Turn Electric Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Time/Torque | 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs | Installation Angle | 360° |
|---|---|---|---|
| Total Weight | 4.5KG To 20KG | Motor Power | 15W To 140W |
| Ambient Temperature | -25℃~+55℃ / -13°F~+131°F | Protection Grade | IP67 NEMA4/4X |
| Power Supply | 24VAC/110VAV/220VAC/380VAC/24VDC |
Product Description
Handwheel operating electric quarter turn actuator with local power off button/IP67
Description
DCL electric actuators can be equipped with a standard handwheel, available for both general-purpose and explosion-proof models. To ensure safety during manual operation, an emergency power-off button is provided to prevent accidental activation. The button is conveniently located on the back of the actuator for easy access.
When it is uncertain whether the actuator is powered, simply pressing the power-off button ensures the unit is safely de-energized. Under normal conditions, the handwheel is disengaged from the worm gear. By pressing the handwheel inward, it engages with the worm gear, allowing manual operation of the output drive and valve.
An O-ring seal on the power-off button maintains the actuator’s IP67 weatherproof rating, protecting it from dust and water ingress. Each actuator undergoes a 100% underwater sealing test during production to guarantee compliance with IP67 standards.
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-160 | 48S/1600Nm | 19.5Kg | ||||
| DCL-250 | 75S/2500Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~400Nm | 9.5Kg | |||
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-160 | DN350~400 | DN250 | DN900 |
| DCL-250 | DN450~600 | DN300~350 | DN1000~1200 |
Features
- 1/4 turn operation with mechanical limits
- Non ventilation heavy duty motor with overheat protection
- Corrosion resistances housing with rust passivation aluminum alloy and thermally bonded polyester coating
- Local button to cut off power when emergency issue happens for manual operation
- De-clutchable handwheel is safe, reliable, labor-saving and small
- Valve position indicator/flat or convex
- Standard ISO5211 direct mounting
- Certified by CSA per UL standard/CE marked
