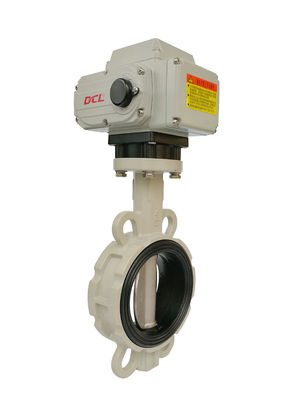

Weather Proof Fail-safe return CSA Quarter Turn Electric Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Quarter Turn Electric Actuator | Certificated | CSA |
|---|---|---|---|
| Installation Angle | 360° | Total Weight | 1.2KG To 20KG |
| Motor Power | 6W To 140W | Feature | Weather Proof |
Product Description
CSA certificated quarter turn electric actuator/complied to UL standard
Features:
- Torque from 18Nm to 3000Nm/160in.lbs to 26550 in.lbs
- All parts are certified by CSA, complied to UL 429 and CSA C22.2
- Weather proof NEMA 4/4X and IP67 sealing grade with aluminum alloy housing cover/IP 68 optional
- Duty cycle 60% for 18Nm/160in.lbs model and 70% for all other model
- Self-locking at any position when power off
- Limit switches to confirm valve position/potentiometer or position transmitter optional
- ISO 5211 multi-flange mounting
- Manual override with wrench or handwheel
- Optional functions such as Modbus Communication,fail-safe return,over torque protection,Dehumidifying heater and so on.
Description
Since 2013, all DCL common-series electric actuators from Huayi Technology have been CSA certified, meeting both the U.S. UL standard and the Canadian CSA standard. The explosion-proof models are currently undergoing CSA tests, and are expected to complete all certification processes in Q3–Q4 of 2020. Meanwhile, DCL products have passed CE certification and conform to RoHS 3.0, with all tests conducted by SGS, thus carrying both CSA and CE marks.
Regarding quality control, any changes to actuator components or suppliers must be documented, submitted, and approved by CSA. Every three months, CSA experts from both the Canada headquarters and China office conduct factory audits to ensure that manufacturing and quality management strictly comply with UL and CSA standards. This rigorous oversight ensures that CSA-certified products maintain exceptionally high levels of quality stability and enjoy broad recognition across the North American market.
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-200 | 92S/2000Nm | 19.5Kg | ||||
| DCL-300 | 110S/3000Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~600Nm | 9.5Kg | |||
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-200 | DN350~400 | DN250 | DN900 |
| DCL-300 | DN450~600 | DN300~350 | DN1000~1200 |
About Us:
Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.
DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, pharmaceuticals, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
