DCL Compact Actuator Swinging Arm IP67(68) Waterproof Modbus-RTU

  • DCL Compact Actuator Swinging Arm IP67(68) Waterproof Modbus-RTU
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Standard Torque 18Nm To 2500Nm/160in.lbs To 22125in.lbs Standard Time 15S To 75S
Total Weight 1.2KG To 20KG Motor Power 6W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description

Compact electric actuator with swinging arm for damper control

Features

  • Water proof IP67 and NEMA 4X aluminum alloy enclosure with C3 level corrosion resistance
  • Heavy duty motor with thermal overload protection
  • Over 10000 times full range life cycle with rated load
  • On-off type and modulating type with 4-20mA/2-10V input control signal available
  • Very compact size for 360° installation, with water proof connector and cable optional
  • Visual position indicator, flat or convex optional
  • Manual override with Allen wrench
  • CSA certificated per UL and CSA standard/CE marked/RoHS 3 tested
  • Modbus communication facilitates remote data detection and monitoring.
  • Operating ambient temperature range: -25°C to 55°C.

Description

DCL compact electric actuators are widely used for damper control, such as farm ventilator,factory ventilator, boiler ventilator etc. We can also provide customized swinging arm production and waterproof cable connection. It receives external control signals, drives the internal motor and mechanical structure, and outputs precise linear push-pull motion for the automated control of various industrial valves, dampers, gates, or devices requiring linear movement.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-200 90S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

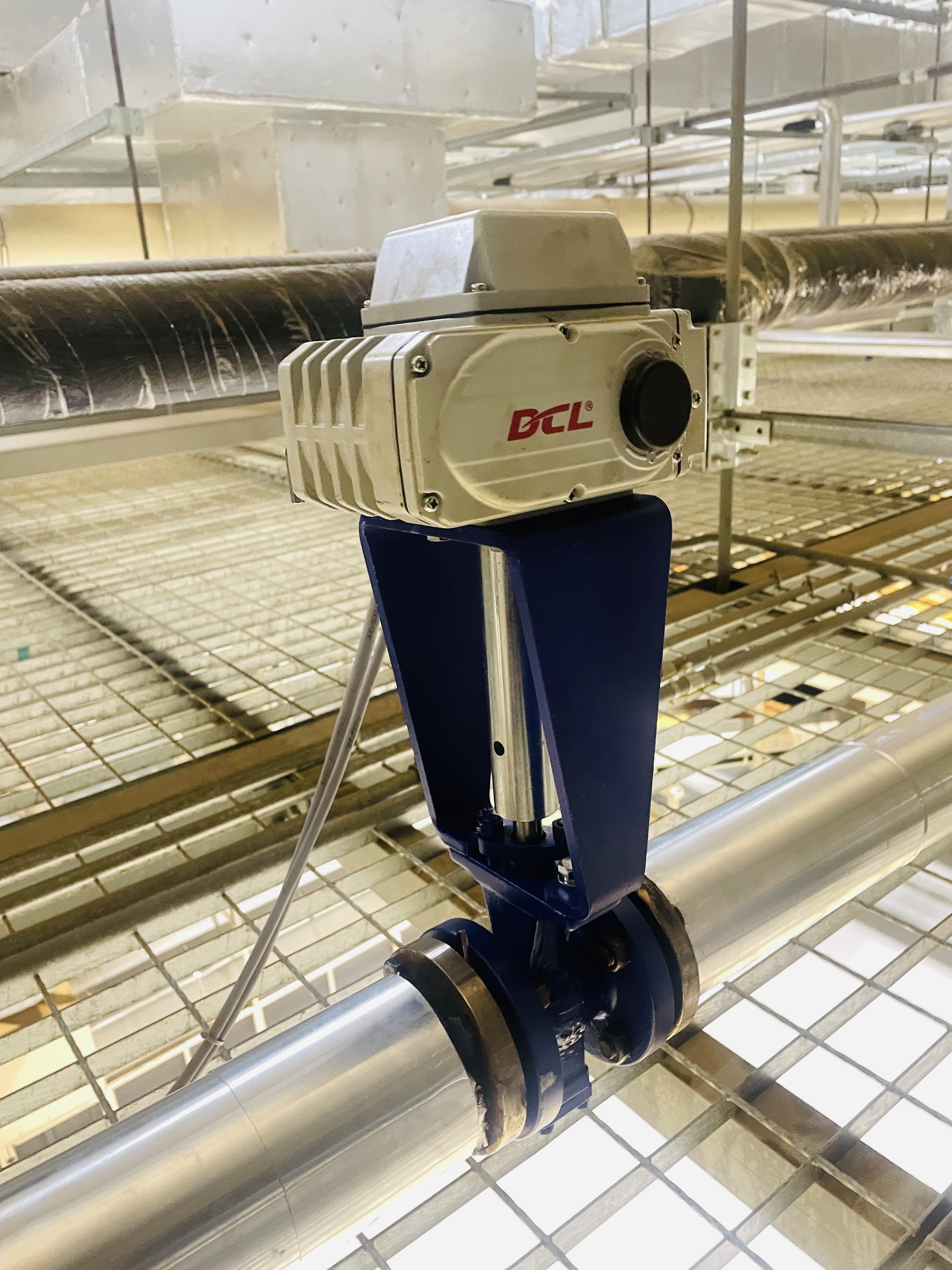

DCL Compact Actuator Swinging Arm IP67(68) Waterproof Modbus-RTU 0 DCL Compact Actuator Swinging Arm IP67(68) Waterproof Modbus-RTU 1
