Super small Compact Series 15S 18Nm / 7S 9Nm / 30S 25Nm Electric Actuator

  • Super small Compact Series 15S 18Nm / 7S 9Nm / 30S 25Nm Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VAC/110VAC/220VAC
Motor Power 6W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
Leave a Message
Product Description
Super small exquisite 15S 18Nm Electric Actuator
Description

DCL Compact Series Electric Actuators deliver high performance through a more compact size, smarter design, and more user-friendly operation experience. The launch of this series marks another significant milestone in DCL's journey to enhance the safety, efficiency, and reliability of industrial automation worldwide.

Features

1,Compact Size, Easy Installation

Featuring a compact design suitable for space-constrained applications, its ultra-small size and 360° multi-directional installation capability effortlessly meet various operational needs.

2,High Reliability, Long Service Life

Constructed with a full aluminum alloy housing, it offers exceptional protection performance, ensuring stable and reliable operation even in extreme environments.

3,Wide Applications, Industry Adaptability

Widely applicable to various automated operating systems, such as: liquid level, flow, and pressure control; air conditioning systems; fire protection systems; water treatment systems and equipment; chemical and food machinery, etc. Compatible with butterfly valves of DN40 and above and ball valves of DN32 and below. Provides efficient solutions for industrial and civil systems.

The DCL Series Electric Actuators are an ideal choice for the following process control applications:

  • Butterfly valves, ball valves, plug valves, globe valves, and other rotary valves
  • Industrial process control systems for flow, temperature, pressure, liquid level, etc.
  • Automation and computer control systems
  • Mechanical positioning and rotation
Specification
Performance Parameters
DCL-02 DCL-MZZ (Multiple turns)
Type
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A
Many other type
Type Standard Time/Torque Optional Time/Torque Turning Angle or turns Total Weight Power supply type Optional control circuitry
DCL-02 15S/18Nm

7S/9Nm

30S/25Nm

 0~90° 1.2Kg

DC12V/DC24V/AC24V/

AC110V/AC220V

 A/B/E/G/GEY
DCL-05 25S/50Nm

5S/20Nm

12S/30Nm

60S/50Nm

 0~360° 2.5Kg

DC12V/DC24V/AC24V/

AC110V/AC220V/AC380V

 A/B/C/D/E/F/G/H/GEY
DCL-10 30S/100Nm

15S/50Nm

60S/100Nm

 0~90° 4.5Kg

DC12V/DC24V/AC24V/

AC110V/AC220V/AC380V

 A/B/C/D/E/F/G/H/GEY

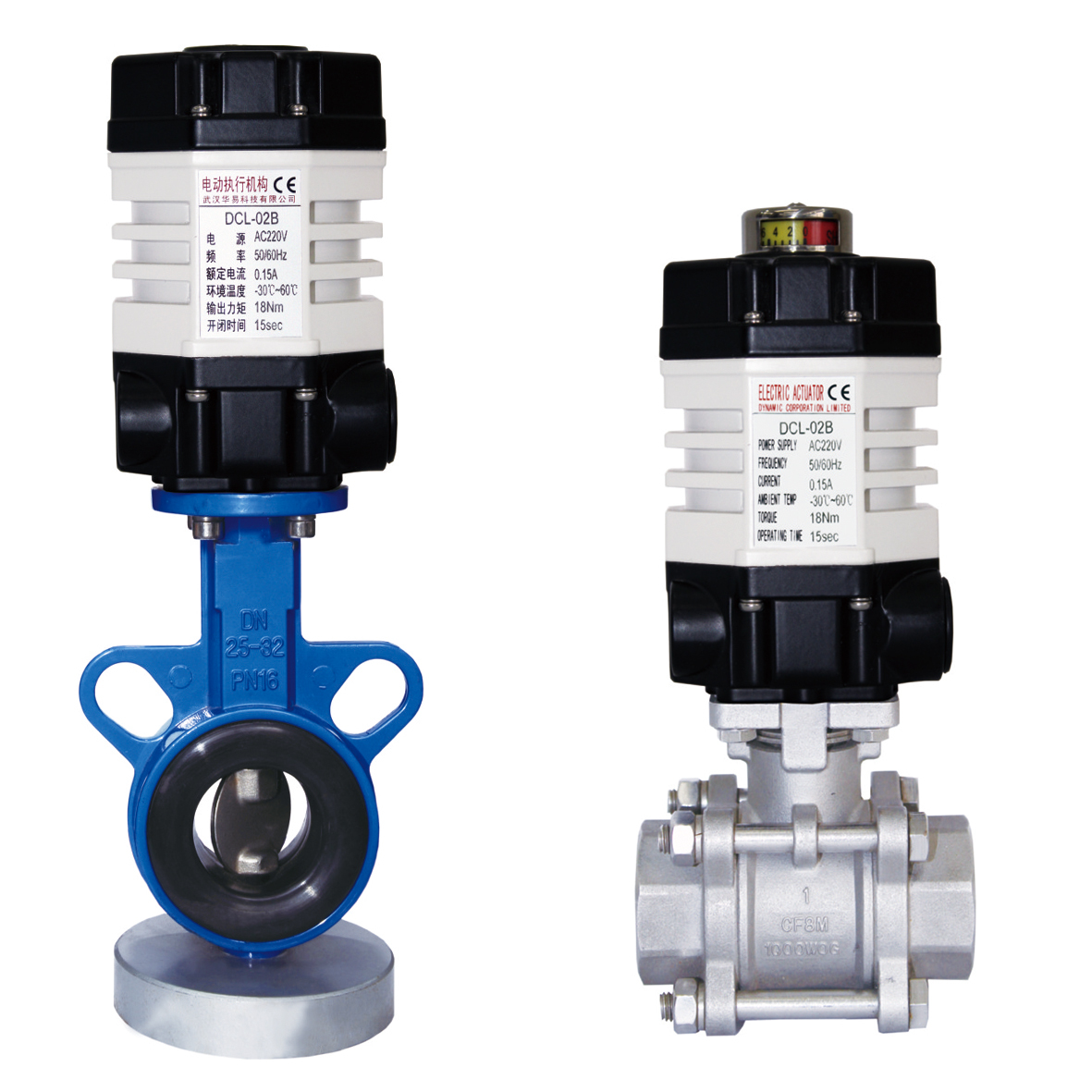

Super small Compact Series 15S 18Nm / 7S 9Nm / 30S 25Nm Electric Actuator 0 Super small Compact Series 15S 18Nm / 7S 9Nm / 30S 25Nm Electric Actuator 1
