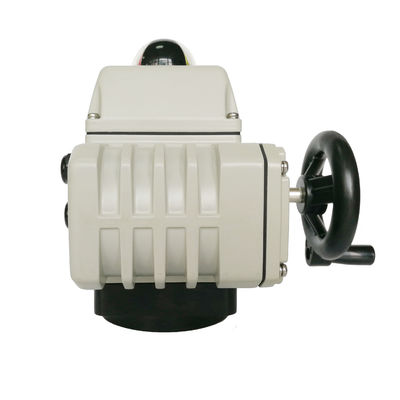

DCL 110V On Off Quarter Turn Electric Actuator

  • DCL 110V On Off Quarter Turn Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Model Number DCL-40
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

DCL Quarter Turn Electric Actuator

,

110V Quarter Turn Electric Actuator

,

400Nm Quarter Turn Actuator
Leave a Message
Product Description

Dcl Electric Power Regulating Actuaotor Valve Actuator, Quarter Turn Actuator




Model No.:DCL-40 (30s/400Nm)

Installation: ISO 5211 Direct installation

Encloser: G1/2 cable, with water resistance

Optional function: Handle wheel ( with push-off button), 4 limited switches , heater..

Actuator : 30s/400Nm, 110V, ON-OFF 2 position,modulating type feedback position with 4-20mA signal

Valve: Butterfly( DN200), Ball valve(DN125)

Tips: In order to ensure the actuator to work stably and reliably, it is necessary to have enough allowance in selection, it is suggested to have 1.1~1.3 times allowance factor, which is output torque of valve tested with pressure>1.1~1.3 times.

Valve match suggestion:

Actuator type Butterfly valve(≤PN 1.0Mpa) Ball valve(≤PN 1.6Mpa) Vent valve(≤PN 1.0Mpa)
DCL-02 ≤DN40 ≤32

DCL-05 DN50~DN65 DN40 DN50~DN80
DCL-10 DN80~DN100 DN50~DN65 DN100~DN200
DCL-20 DN125~DN150 DN80~DN100 DN250~DN300
DCL-40 DN200 DN125 DN350~DN450
DCL-60 DN250 DN150 DN500~DN600
DCL-100 DN300 DN200 DN700~DN800
DCL-160 DN350~DN400 DN250 DN900
DCL-250 DN450~DN600 DN300~DN350 DN1000~DN12000
DCL-M02 Suitable for shutoff valve or diaphragm valve under diameter DN80
DCL-M05
DCL-M10
