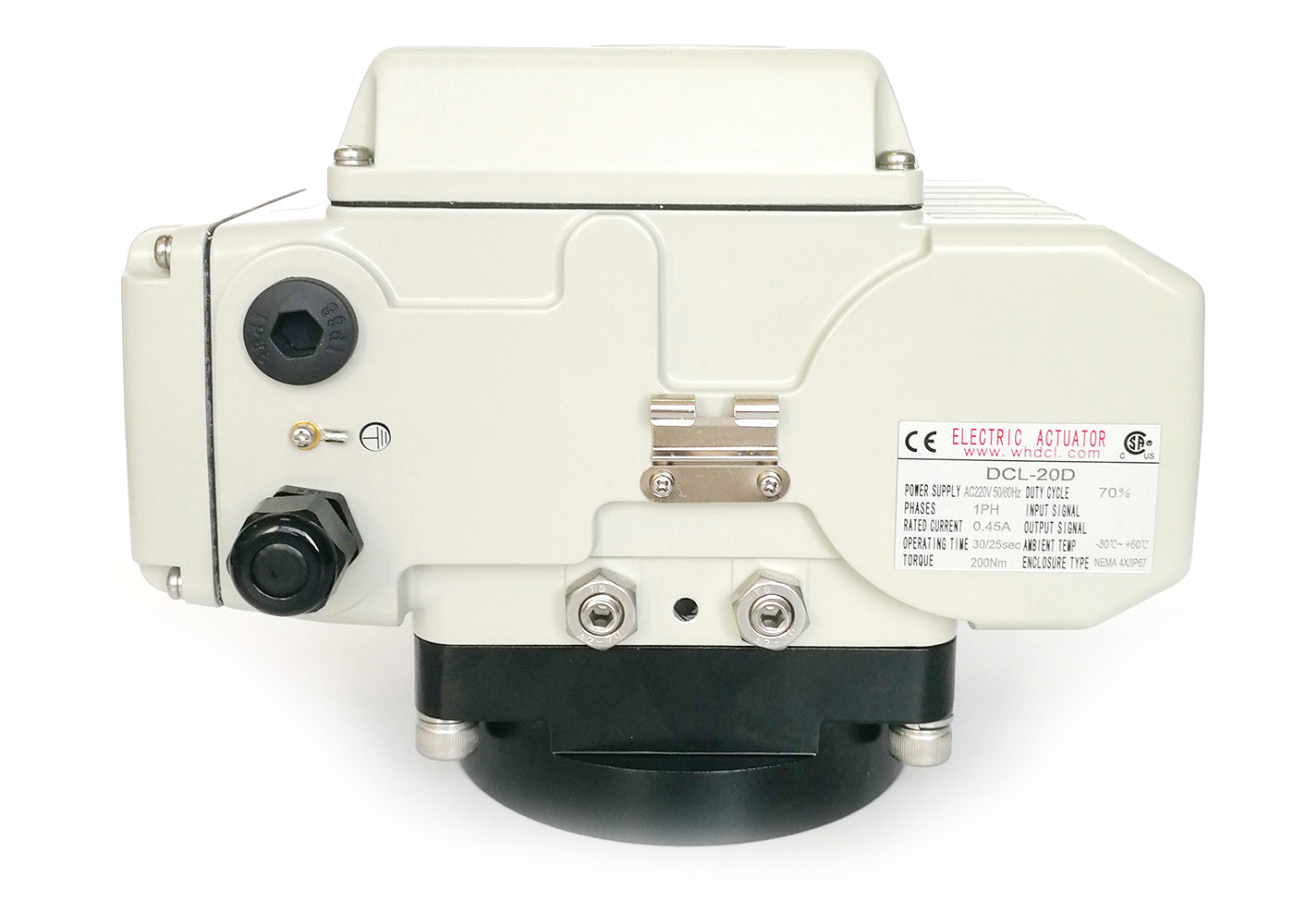

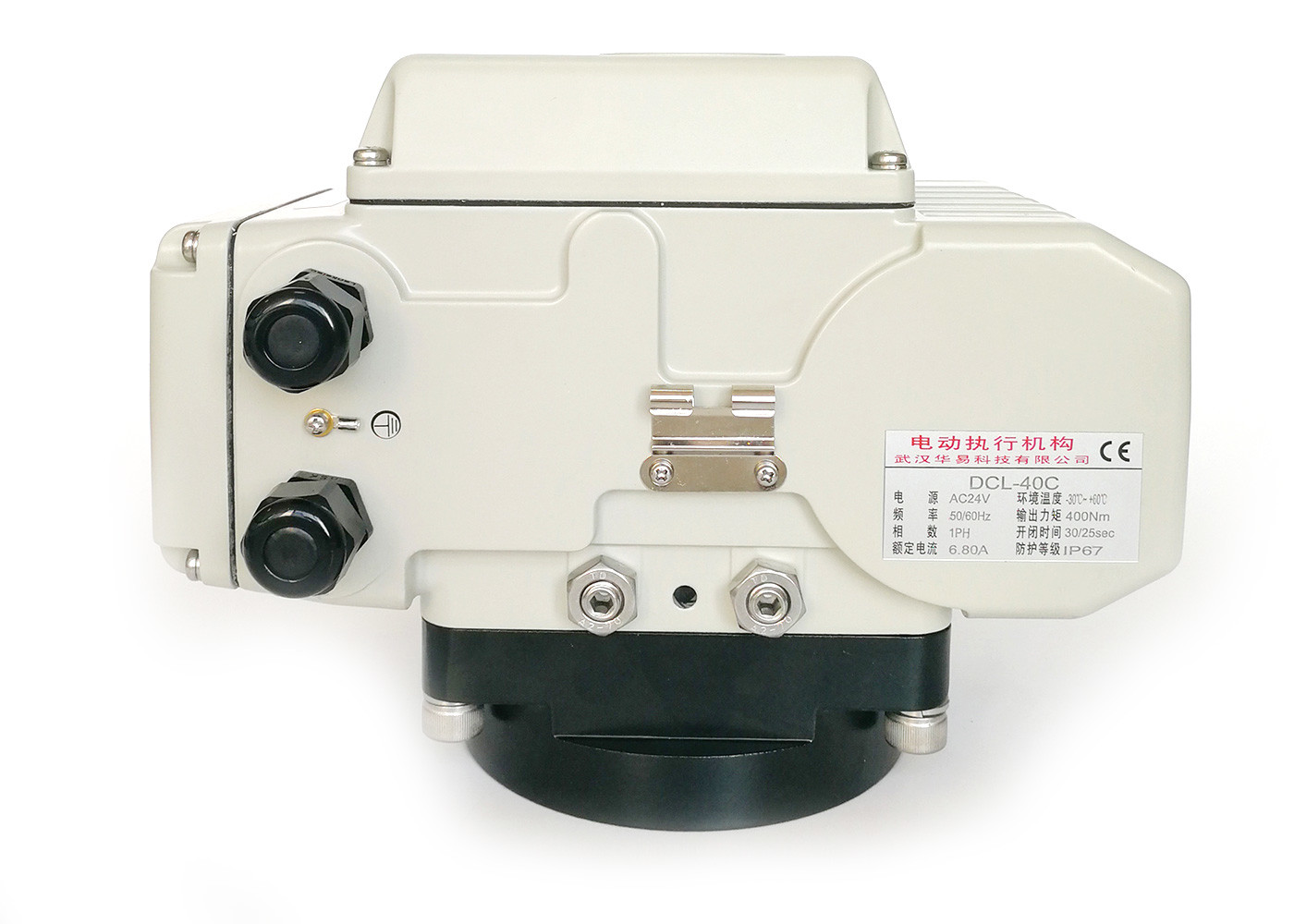

IP67 Compact Quarter Turn Actuator For Butterfly Valve

  • IP67 Compact Quarter Turn Actuator For Butterfly Valve
  • IP67 Compact Quarter Turn Actuator For Butterfly Valve
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Total Weight 1.2KG To 20KG
Motor Power 6W To 140W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Protection Grade IP67 NEMA4/4X
High Light

RoHS Quarter Turn Actuator

,

CSA Quarter Turn Actuator

,

IP67 Quarter Turn Actuator
Leave a Message
Product Description

DCL Quarter Turn Actuator With ROHS And CSA Certification





Features

  • 1/4 turn operation with mechanical limits
  • All bronze alloy worm sector gear is very durable and resistance to high force friction
  • Over 10000 time full open and close life cycles with full rated load with duty rate 80%
  • Corrosion protection robust aluminum alloy with thermally bonded polyester coating
  • Visual valve position indicator
  • Two electric limit switches to confirm valve position, no additional brake required
  • Allen handle manual override
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Description



DCL compact quarter turn electric actuators have been used to automate butterfly valves for 19 years with over 150,000 pcs are now still working around world.

Butterfly valve needs large torque at full close position to push valve plate into the valve seat or pull valve plate back from valve seat, especially for soft seal butterfly valve. That’s why start torque of actuator is very important. All DCL actuators are tested and certified to start with over rated load in -10% rated voltage. So it is commonly seen that DCL-10 with 100Nm standard torque actuator can drive DN100 butterfly valve, while other brands need offer 200Nm standard torque actuator.

Actuators have been rigorous tested by CSA and certified per UL and CSA standard. CE standard and RoHS 3.0 tested by SGS.



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200







Tags:

NEMA4/4X Electric Valve Actuator

4X Quarter Turn Actuator

220VAC Quarter Turn Actuator
