Smart Modulating Quarter Turn Actuator With Control Pack

  • Smart Modulating Quarter Turn Actuator With Control Pack
  • Smart Modulating Quarter Turn Actuator With Control Pack
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02E/05E/10E/20E/40E/60E/100E/160E/250E
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Installation Angle 360°
Input Signal 4-20mA Or 2-10V / 1-5V Optional Output Signal 4-20mA
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Total Weight 2.5KG To 20KG
Motor Power 10W To 140W Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC
High Light

Modulating Quarter Turn Actuator

,

Smart Quarter Turn Actuator

,

Quarter Turn Modulating Actuator
Leave a Message
Product Description

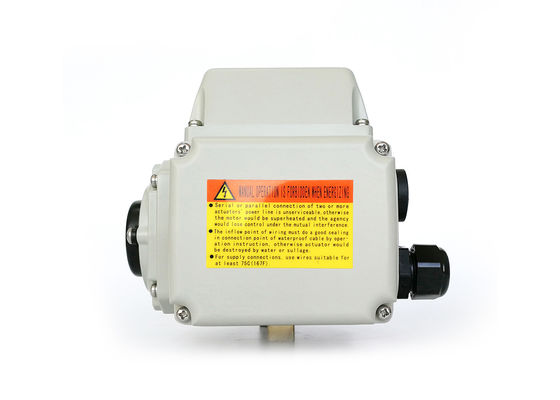

Smart Modulating Quarter Turn Actuator With Control Pack





Features

  • Full potted multi-function smart control pack, world leading anti-interference ability
  • Self-calibrating and problem self-checking function
  • Quarter turn operation with mechanical limits
  • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
  • Weather proof aluminum alloy enclosure with thermally bonded polyester coating
  • Heavy duty motor with thermal overload protection
  • Standard ISO5211 multi-flange valve mounting
  • CSA certificated complied to UL and CSA standard/ CE marked



Description

DCL modulating type electric actuators are S4 intermittent periodic duty operation. Actuator sequential, identical starts, runs and rests cycles with rated load. As the starting current affects temperature rise, if motor is not proper designed, actuator will be easily shut down during high frequently starts by thermal overheat protector in motor and actuator body will be very hot.

Actuators have been rigorous tested by CSA and certified per UL and CSA standard. In chemical and food & beverage industry, the fluid needs to be controlled very fine, so the actuator start frequency is very high. 1200 times/hour can reach world leading level and can meet requirements of above industries.



Specification:



Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.









Tags:

NEMA4/4X Electric Valve Actuator

4X Quarter Turn Actuator

220VAC Quarter Turn Actuator
