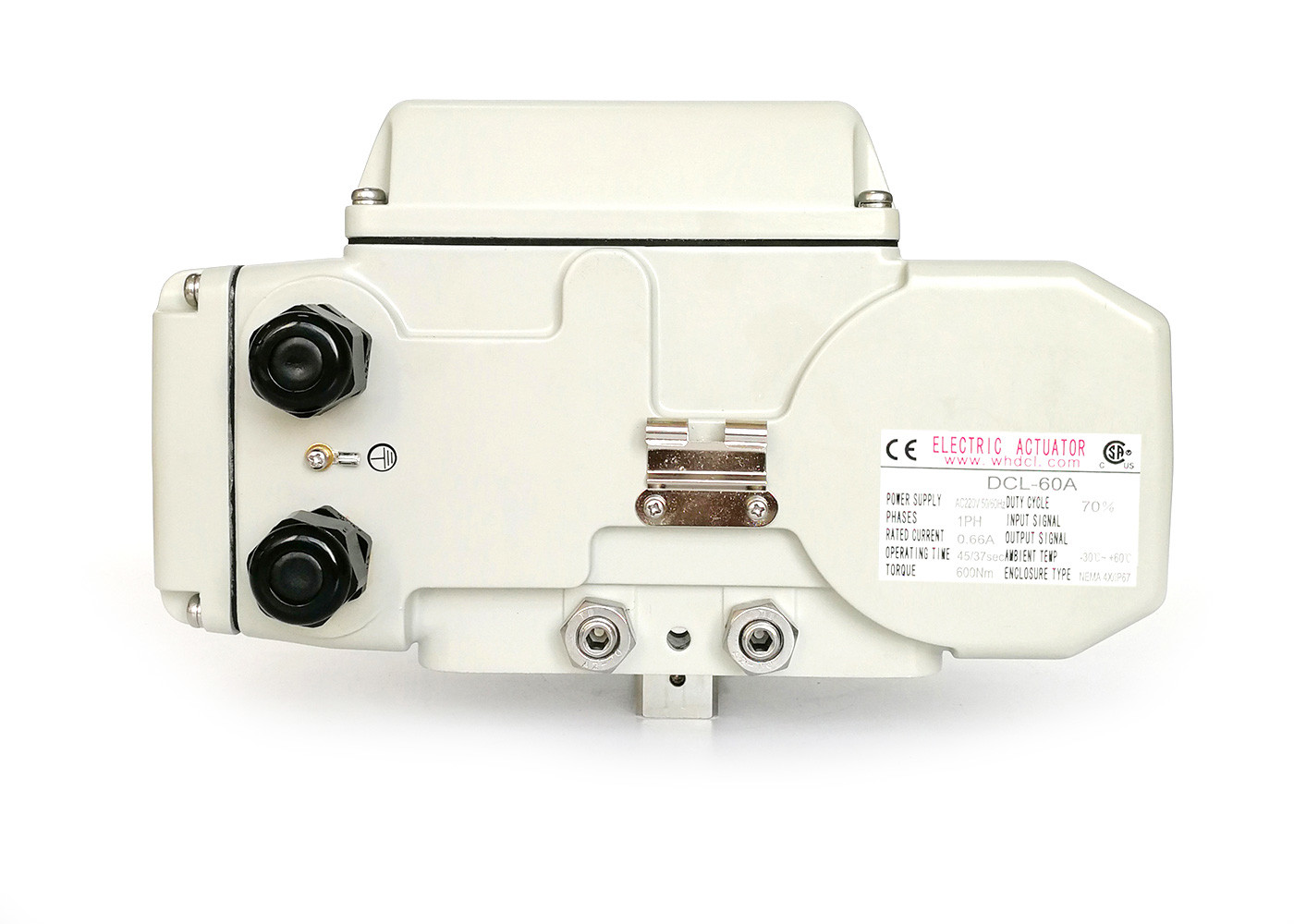

Switchable 1/4 Turn 100Nm Compact Actuator With Dome Indicator
|Standard Time/Torque||30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs||Installation Angle||360°|
|Total Weight||4.5KG To 20KG||Motor Power||15W To 140W|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Protection Grade||IP67 NEMA4/4X|
1/4 Turn Compact Actuator,
Switchable Compact Actuator,
100Nm quarter turn actuator
Local/Remote switchable 1/4 Turn 100Nm-2500Nm Compact Actuator with dome indicator
- Quarter turn operation with compact design
- ISO 5211 multi flange mounting well coupled to soft seal, metal seal, PVC butterfly valve
- Used for flap valve and ventilation butterfly valve as well, size up to DN1200/48”
- Self-locking worm gear drive prevents back driving to keep no leak of valve
- Handle or handwheel for manual operation
- Visual position indicator for butterfly valve turning angle
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
DCL compact quarter turn electric actuators have been used to automate butterfly valves for 19 years with over 150,000 pcs are now still working around world.
Butterfly valve needs large torque at full close position to push valve plate into the valve seat or pull valve plate back from valve seat, especially for soft seal butterfly valve. That’s why start torque of actuator is very important. All DCL actuators are tested and certified to start with over rated load in -10% rated voltage. So it is commonly seen that DCL-10 with 100Nm standard torque actuator can drive DN100 butterfly valve, while other brands need offer 200Nm standard torque actuator.
Actuators have been rigorous tested by CSA and certified per UL and CSA standard. CE standard and RoHS 3.0 tested by SGS.
|Actuator Type||Butterfly Valve(≤PN1.0MPa)||Ball Valve(≤PN1.6MPa)||Vent Valve(≤PN0.1MPa)|
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
