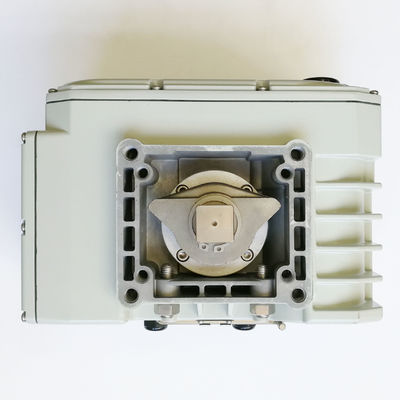

50/60HZ Butterfly Valve DN600 Electric Valve Actuator
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Compact Electric Actuator||Standard Time/Torque||15S To 75S/18Nm To 2500Nm|
|Matched||Butterfly Valve Up To DN600||Application||Water Treatment Used|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC|
DCL Compact Actuator,
DN600 Electric Valve Actuator
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
- The smallest size and most compact design in torque range from 18Nm to 2500Nm
- Double row chain from gear box to worm gear stem ensure torque transfer strength
- Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
- Hard high pressure die cast aluminum housing with watertight IP67 and NEMA 4X
- Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
- All metal gear train with self-locking worm gear, stays in last known position once power loss, no additional brake needed
- Manual override with wrench or de-crutched handwheel
- Heavy duty fully enclosed squirrel-cage asynchronous motor with thermal overload protection, duty rate 80%, F rate insulation.
- Over 10000 times full open/close life cycle with rated torque.
- CSA certified per UL standard/CE marked/RoHS 3.0
DCL compact electric actuators are always used with temperature control valve on ship. Electric control temperature valve is mainly used for auto control of fresh water, sea water or lubricating oil in cooling system, such as generator, diesel engine and turbine etc. Due to the high accuracy(error≤1%) of the actuator’s outdrive positioning, the temperature control can be less than 1℃. Moreover, the surge and electromagnetic interface on the ship are very strong because of the independent power system, all DCL actuators are strictly tested for EMC to meet the severe application.
Actuators are rigorous tested and certificated by CSA per UL and CSA standard, by SGS per CE and RoHS 3 standard.
