Overload Duty Cycle 80% 30S 100Nm Butterfly Valve Actuator

  • Overload Duty Cycle 80% 30S 100Nm Butterfly Valve Actuator
  • Overload Duty Cycle 80% 30S 100Nm Butterfly Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL A/B/C/D/F/H model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC Installation Angle 360°
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Standard Torque 18Nm To 2500Nm Standard Time 15s To 75s
Highlight

ISO5211 Compact Actuator

,

100Nm Butterfly Valve Actuator
Leave a Message
Product Description

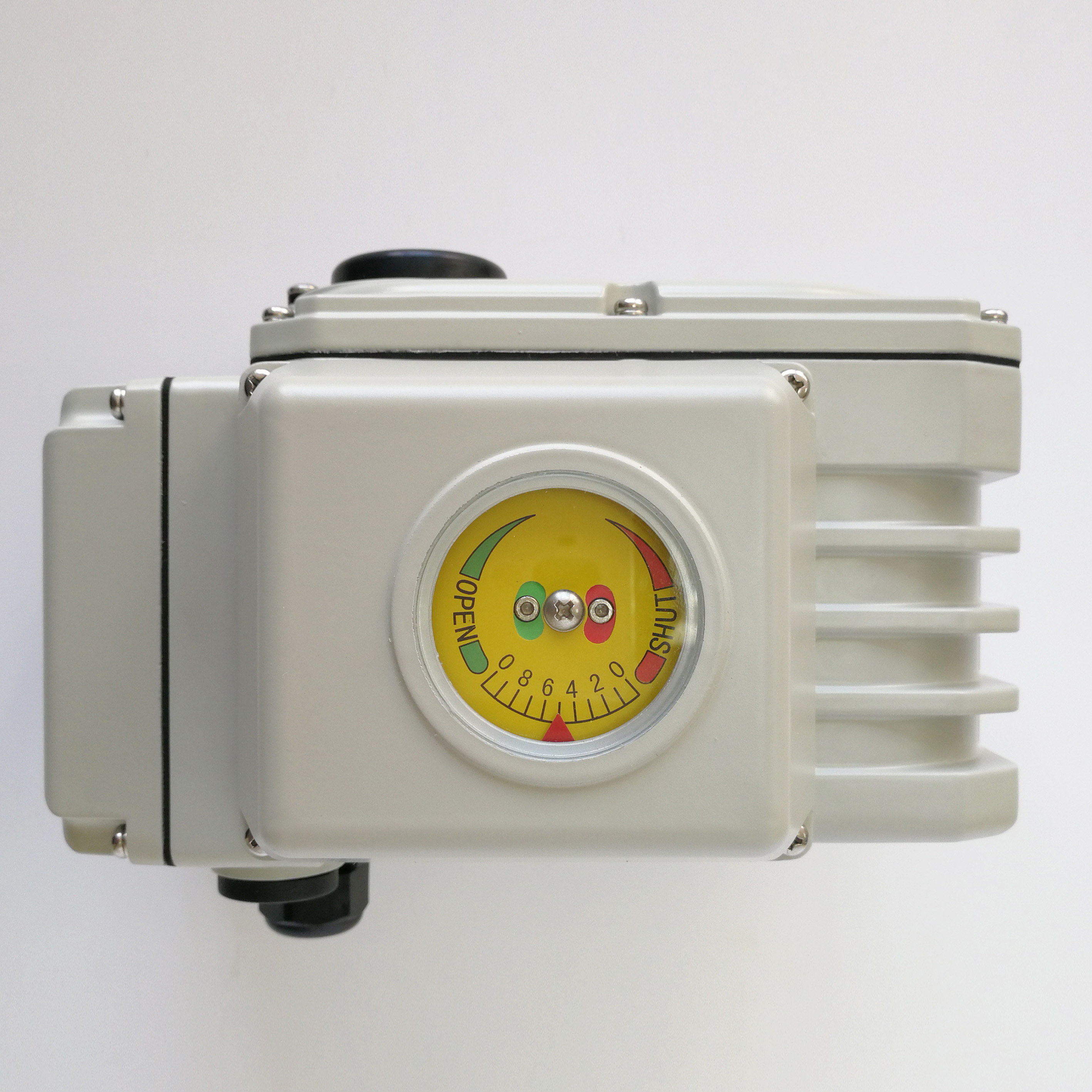

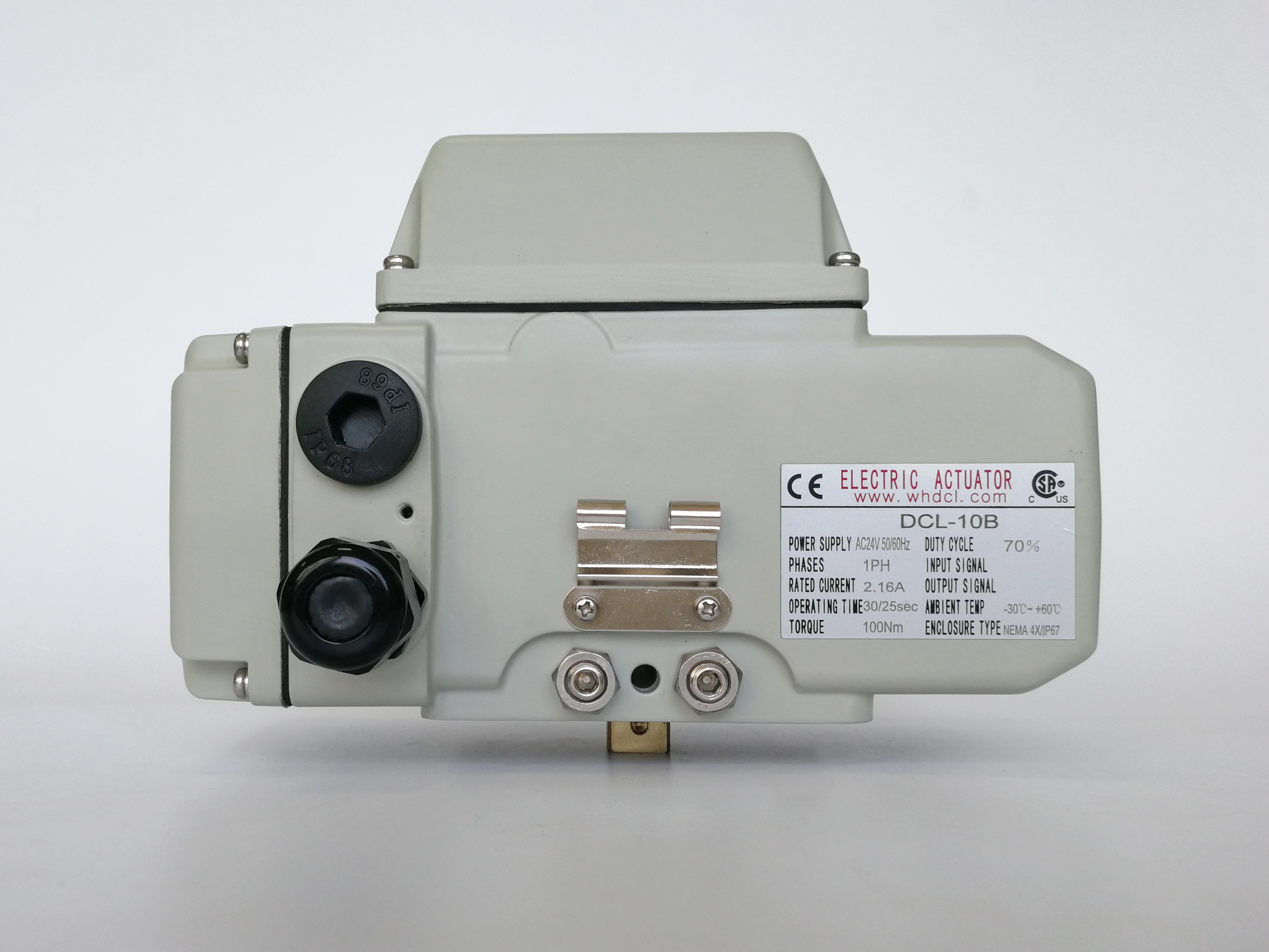

Compact electric actuator with duty cycle 80% / Heavy duty motor with overload protection



Features

  • Quarter turn with mechanical limits for butterfly valve and 2-way/3-way ball valve
  • Heavy duty fully enclosed squirrel-cage asynchronous motor with thermal overload protection, duty rate 80%, F rate insulation.
  • All metal gear train with self-locking worm gear, stays in last known position once power loss, no additional brake needed
  • Over 10000 times full open/close life cycle with rated torque
  • ISO5211 multi-flange mounting
  • CSA listed/UL/CE/RoHS 3.0
  • Visual valve position indicator/flat indicator or convex indicator available
  • Manual override standard with wrench or handwheel



Description

DCL compact electric actuators are very commonly used for blower/compressor and turbo to control air volume. For different control system and requirements, we can set different turning angle and travel time. For air volume control, the travel time is commonly longer than standard time to match with 3 point floating control system. Over torque protection and anticondensation heater are optional.

Actuators are rigorous tested and certificated by CSA per UL and CSA standard, by SGS per CE and RoHS 3 standard.





Specification



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator



Tags:

IP67 waterproof Compact Actuator

DCL Compact Actuator

ISO5211 Compact Actuator
