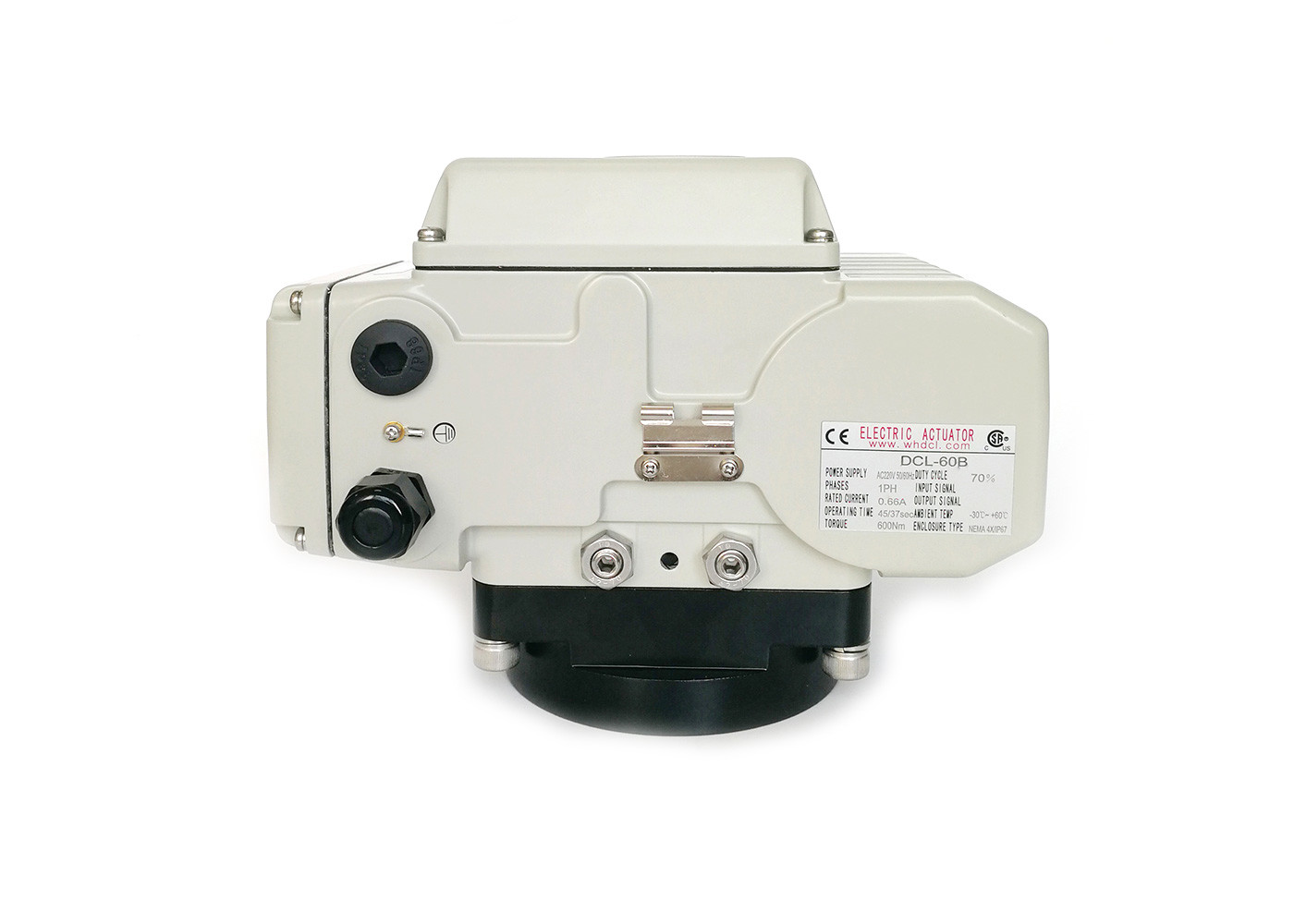

PVC Butterfly Valve UL ISO 5211 Quarter Turn Electric Actuator
|Standard Torque||18Nm To 2500Nm||Standard Time||15S To 75S|
|Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC||Installation Angle||360°|
|Protection Grade||IP67 NEMA4/4X||Total Weight||1.2KG To 20KG|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Motor Power||6W To 140W|
IP67 waterproof Compact Actuator,
ISO 5211 Quarter Turn Electric Actuator,
PVC Butterfly Valve Actuator
UL standard compact electric actuator with CSA certification / ISO 5211 direct mounting
- Quarter turn operation with compact design
- ISO 5211 multi flange mounting well coupled to soft seal, metal seal, PVC butterfly valve
- Over torque protection by torque test function of smart full potted controller
- Used for flap valve and ventilation butterfly valve as well, size up to DN1200/48”
- Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
- Handle or handwheel for manual operation
- Self-locking all metal gear drive, no additional brake required
- Visual position indicator for butterfly valve turning angle
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
DCL compact quarter turn electric actuators have been used to automate butterfly valves for 19 years with over 150,000 pcs are now still working around world.They are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms.Butterfly valve needs large torque at full close position to push valve plate into the valve seat or pull valve plate back from valve seat, especially for soft seal butterfly valve. That’s why start torque of actuator is very important. All DCL actuators are tested and certified to start with over rated load in -10% rated voltage. So it is commonly seen that DCL-10 with 100Nm standard torque actuator can drive DN100 butterfly valve, while other brands need offer 200Nm standard torque actuator.
Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
