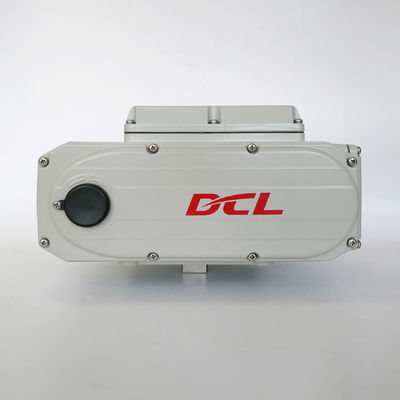

DCL IP67 Water Treatment DN600 Butterfly Valve Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S To 75S/18Nm To 2500Nm Installation Angle 360°
Total Weight 1.5KG To 20KG Motor Power 6W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
High Light

IP67 waterproof Compact Actuator

,

DN600 Butterfly Valve Actuator

Leave a Message
Product Description

IP67 Water Treatment DN600 Butterfly Valve Actuator



Features

  • The smallest size and most compact design in torque range from 18Nm to 2500Nm
  • Double row chain from gear box to worm gear stem ensure torque transfer strength
  • Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
  • Hard high pressure die cast aluminum housing with watertight IP67 and NEMA 4X
  • Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
  • All metal gear train with self-locking worm gear, stays in last known position once power loss, no additional brake needed
  • Manual override with wrench or de-crutched handwheel
  • Heavy duty fully enclosed squirrel-cage asynchronous motor with thermal overload protection, duty rate 80%, F rate insulation.
  • Over 10000 times full open/close life cycle with rated torque.
  • CSA certified per UL standard/CE marked/RoHS 3.0



Description

DCL compact electric actuators are always used with temperature control valve on ship. Electric control temperature valve is mainly used for auto control of fresh water, sea water or lubricating oil in cooling system, such as generator, diesel engine and turbine etc. Due to the high accuracy(error≤1%) of the actuator’s outdrive positioning, the temperature control can be less than 1℃. Moreover, the surge and electromagnetic interface on the ship are very strong because of the independent power system, all DCL actuators are strictly tested for EMC to meet the severe application.

Actuators are rigorous tested and certificated by CSA per UL and CSA standard, by SGS per CE and RoHS 3 standard.





Specification



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
