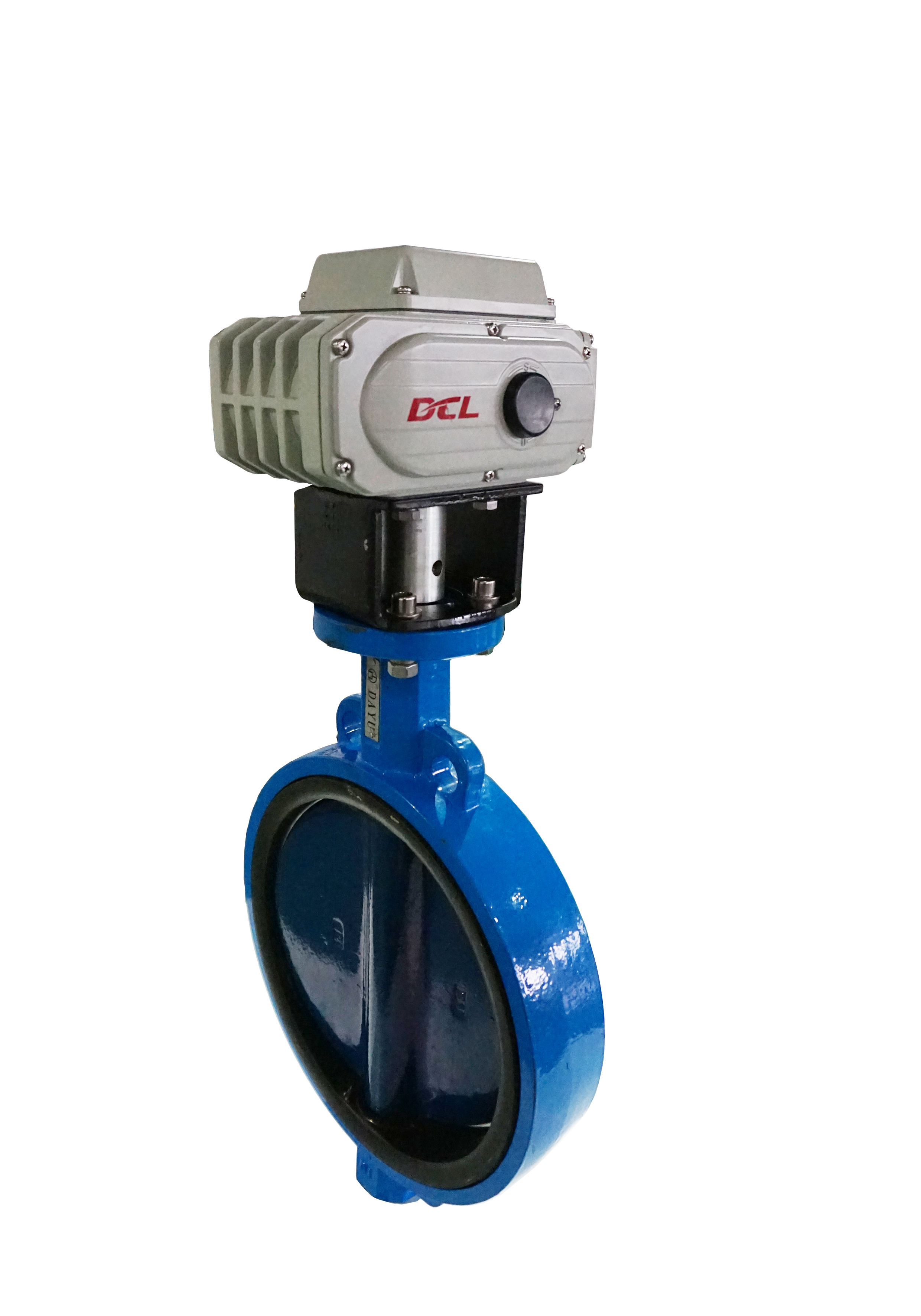

Butterfly Valve CE 60S 100Nm Quarter Turn Actuator
|Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC||Installation Angle||360°|
|Standard Time/Torque||15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs||Total Weight||1.2KG To 20KG|
|Motor Power||6W To 140W||Ambient Temperature||-25℃~+55℃ / -13°F~+131°F|
|Protection Grade||IP67 NEMA4/4X|
IP67 waterproof Compact Actuator,
100Nm Quarter Turn Actuator
Non-ventilated reversible induction type motor equipped compact actuator
- 1/4 turn operation with mechanical limits
- Automate ball valve and butterfly valve to adjust or cut off flow
- All bronze alloy worm sector gear is very durable and resistance to high force friction
- Over 10000 time full open and close life cycles with full rated load with duty rate 80%
- Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
- Corrosion protection robust aluminum alloy with thermally bonded polyester coating
- All metal gear train with self-locking worm gear
- Visual valve position indicator
- Two electric limit switches to confirm valve position, no additional brake required
- Allen handle manual override
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.
DCL use heavy duty motor with 80% duty rate that can do more frequently control to make temperature more accuracy. Very long operation life makes after sell maintenance become easy and cost saving. Also, it can be installed indoor or outdoor with resistance to severe environment. Dehumidify heater is optional to help protect actuator against damage caused by condensation. All HVAC used electric actuator are tested to rigorous UL and CSA standards and certified by CSA and CE & RoHS tested by SGS.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
