Brushless Motor DC 24V Multi Turn Compact Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-MZZ
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 5Nm To 18Nm Standard Speed 5r/min
Total Weight 1.2KG Power Supply 24VDC
Motor Power 6W To 10W Installation Angle 360°
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
High Light

24V multi turn compact actuator

,

DCL Compact Actuator

Leave a Message
Product Description

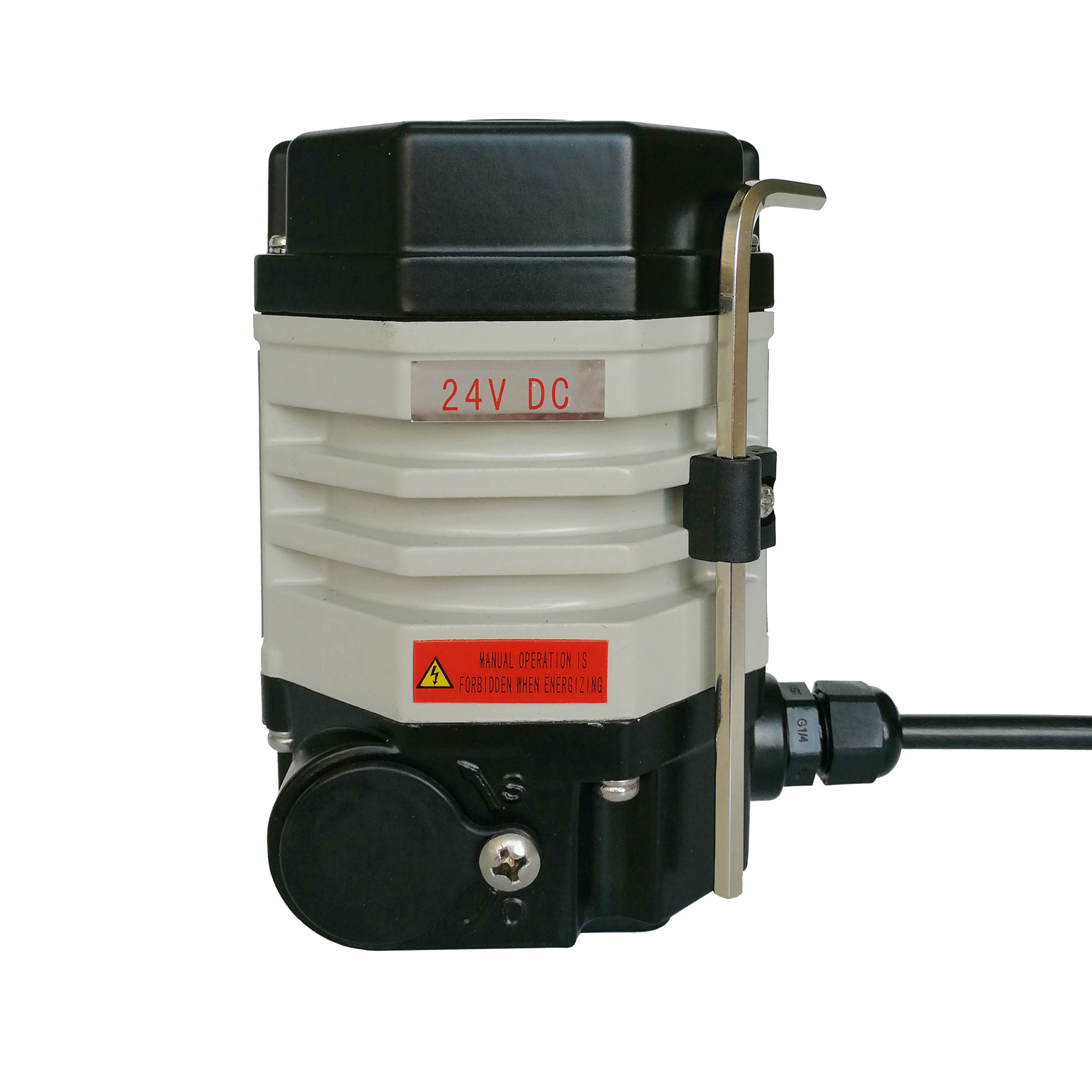

DC power motorized multi-turn compact actuator with brushless motor



DCL-MZZ dimension and parameters.pdf



Features

  • Turns and torque can be set to match with different size of diaphragm valve
  • 1-7r adjustable per valve stroke with double side torque limit protection
  • Heavy duty DC brushless motor provides large torque and high speed with small inertia force
  • High pressure die cast aluminum alloy housing with external power coated
  • Torque closes valve and highly sealed in close position torque from 5Nm to 18Nm adjustable
  • Rugged IP67 and type 4X with aluminum alloy enclosure
  • Super mini volume smaller size than a cola can
  • Smart mini control board inside to provide over current protection
  • Manual override with Allen handle
  • Double direction over torque protection
  • Two LED lights to confirm full open and close position of valve
  • CE marked/RoHS 3.0 declared

Specification

Type DCL-MZZ
Power DC24V
Motor Power 20W
Rated Current 1.1A
Standard Time/Torque 18Nm
Optional Time/Torque
Turning Angle 3r
Total Weight 1.2Kg
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25℃~+55℃





Description

DCL-MZZ subminiature multi-turn type electric actuators are used to automate diaphragm valve or needle valve with size less than 2 1/2”. These valves have a not long linear stroke with turns less than 7r. MZZ actuator is powered only by 24VDC due to the DC brushless motor are used, to satisfy the high speed rotation and super torque in super small size.

The actuator can be controlled by continuous mode and inching mode. When actuator drive valve from open to close direction, torque become larger to make the DC motor’s current become higher, and finally stops motor by current overload protection. This is called torque closes valve, which can make sure tight sealing of valve. When actuator drives valve from close to open position, actuator stops at the turns set. Double side overload protection can be set to avoid broken of valve.
