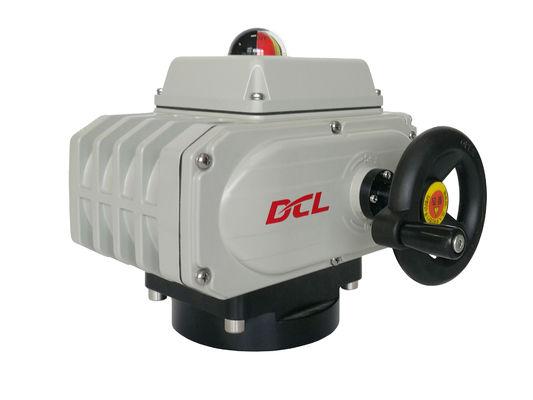

RoHS 22125in.Lbs IP67 DCL Electric Valve Actuator
|Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC||Installation Angle||360°|
|Standard Time/Torque||15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs||Total Weight||1.2KG To 20KG|
|Motor Power||6W To 140W||Ambient Temperature||-25℃~+55℃ / -13°F~+131°F|
|Protection Grade||IP67 NEMA4/4X|
4X Quarter Turn Actuator,
DCL Electric Valve Actuator,
22125in.Lbs valve Actuator
Quarter turn electric actuator with final stage bronze alloy worm sector gear/over 10000 times full range on-off
- 1/4 turn operation with mechanical limits
- All bronze alloy worm sector gear is very durable and resistance to high force friction
- Over 10000 time full open and close life cycles with full rated load with duty rate 80%
- Corrosion protection robust aluminum alloy with thermally bonded polyester coating
- Visual valve position indicator
- Two electric limit switches to confirm valve position, no additional brake required
- Allen handle manual override
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
All DCL electric actuators uses special formulated copper alloy worm gear. Worm gear is monolithic casting with this material instead of plating copper on the surface, which increases its overall strength and abrasion resistance ability.

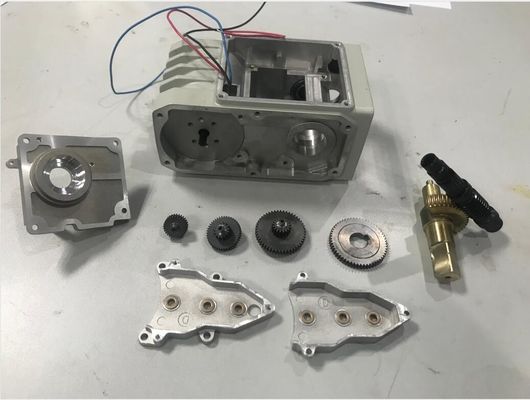

The easiest broken part for electric actuator is the last stage worm gear or spur gear, because it is close to the output drive and suffers the biggest torque and friction. So last stage worm gear directly influences the operation life time of actuator. So DCL designs large worm gear with longer radius(arm) to make the force on wheel teeth less, when same torque added. Moreover, instead of plating copper to the surface, DCL actuator’s whole worm wheel is definitely totally built by bronze alloy.
Gear runout also affects the transfer noise and mechanical life. DCL has a very professional SQE team to control parts quality from suppliers. Every cover, bearing, gear and electronics must be tested before receipt to warehouse.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
|Actuator Type||Butterfly Valve(≤PN1.0MPa)||Ball Valve(≤PN1.6MPa)||Vent Valve(≤PN0.1MPa)|
