90 Degree Alloy Steel Sleeve 442in.Lbs Quarter Turn Actuator
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC||Installation Angle||360°|
|Standard Time/Torque||15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs||Total Weight||1.2KG To 20KG|
|Motor Power||6W To 140W||Ambient Temperature||-25℃~+55℃ / -13°F~+131°F|
|Protection Grade||IP67 NEMA4/4X|
4X Quarter Turn Actuator,
90 Degree Quarter Turn Actuator,
442in.Lbs Quarter Turn Actuator

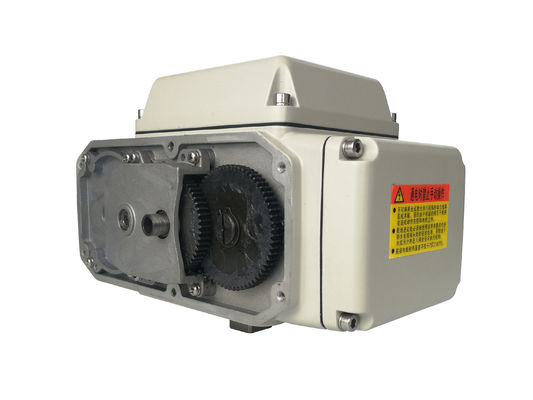

Motorized quarter turn actuator with all metal gear drive, alloy steel sleeve and ball bearings
- 90° operation, middle position optional
- All 40Cr alloy spur gears, hard copper alloy worm gear, metal tapered roller bearings
- Permanent lubricated without maintenance for over 10000 full range life cycles
- Corrosion protection aluminum alloy housing with thermally bonded polyester coating
- Heavy duty motor with thermal overload protection
- Allen wrench manual override/handwheel optional
- Flat or dome indicator for valve position
- ISO5211 multi flange mounting
- CSA certified per UL standard/CE marked
DCL electric actuators are compact but rugged to reach military industrial standard. All metal gears, housing and fully enclosed heavy duty squirrel-cage asynchronous induction motor make actuator can frequently run from open to close with super long life with constantly overload vibration. Not like actuators those may use plastic gears or bearings, DCL broad its applications to heavy industry field, even nuclear power plant and warship, where must be used very safely and stably. While also not like actuators with very huge volume or super weight that cost high, these small size actuators are also widely used for civil field with limit installation space and budget.
DCL actuators are rigorous tested and certified by CSA complied to UL and CSA standard. CE marked by SGS.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
|Actuator Type||Butterfly Valve(≤PN1.0MPa)||Ball Valve(≤PN1.6MPa)||Vent Valve(≤PN0.1MPa)|
