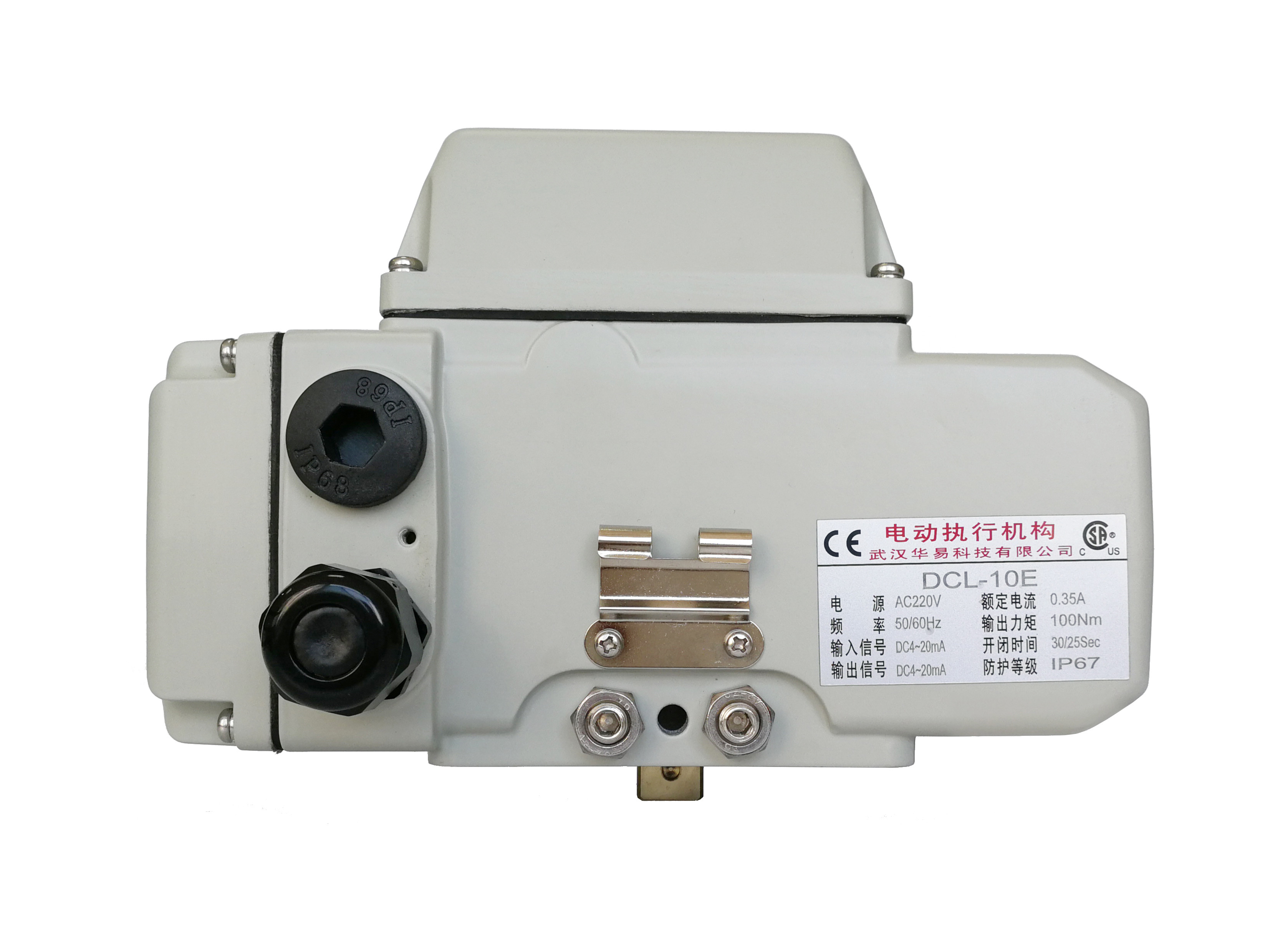

Quarter Turn 4mA S4 Intermittent Motorized Valve Actuator
|Standard Time/Torque||20S To 75S/50Nm To 2500Nm/442in.lbs To 22125in.lbs||Installation Angle||360°|
|Input Signal||4-20mADC/1-5VDC/2-10VDC||Output Signal||4-20mADC|
|Power Supply||24VAC/110VAV/220VAC||Total Weight||2.5KG To 20KG|
|Motor Power||10W To 140W||Ambient Temperature||-25℃~+55℃ / -13°F~+131°F|
|Protection Grade||IP67 NEMA4/4X|
220VAC Quarter Turn Actuator,
S4 Intermittent Valve Actuator,
4mA Valve Actuator
S4 intermittent duty rate quarter turn actuator with 1200 times/hour operation
DCL modulating type electric actuators are S4 intermittent periodic duty operation. Actuator sequential, identical starts, runs and rests cycles with rated load. As the starting current affects temperature rise, if motor is not proper designed, actuator will be easily shut down during high frequently starts by thermal overheat protector in motor and actuator body will be very hot.
Actuators have been rigorous tested by CSA and certified per UL and CSA standard. In chemical and food & beverage industry, the fluid needs to be controlled very precisely, so the actuator start frequency is very high. 1200 times/hour can reach world leading level and can meet requirements of above industries.
|Rated Current||1.50/0.24/ 0.16A||2.12/0.57/ 0.35A||3.65/0.65/ 0.37A||6.80/1.12/ 0.57A||6.80/1.18/ 0.60A||1.93/0.94A||1.75/0.96A||1.75/0.98A|
|Basic Error||not more than ±1%|
|Reciprocating Error||not more than 1%|
|Dead Space||0.5%-5.0% adjustable|
|Damping Characteristic||0 times|
|Repeating Error in Actuator||≤1%|
|Insulating Resistance||AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC|
|Withstand Voltage Class||AC24V:500VAC 1minute AC110/220V:1500VAC 1minute|
|Installation Angle||360°at any angle|

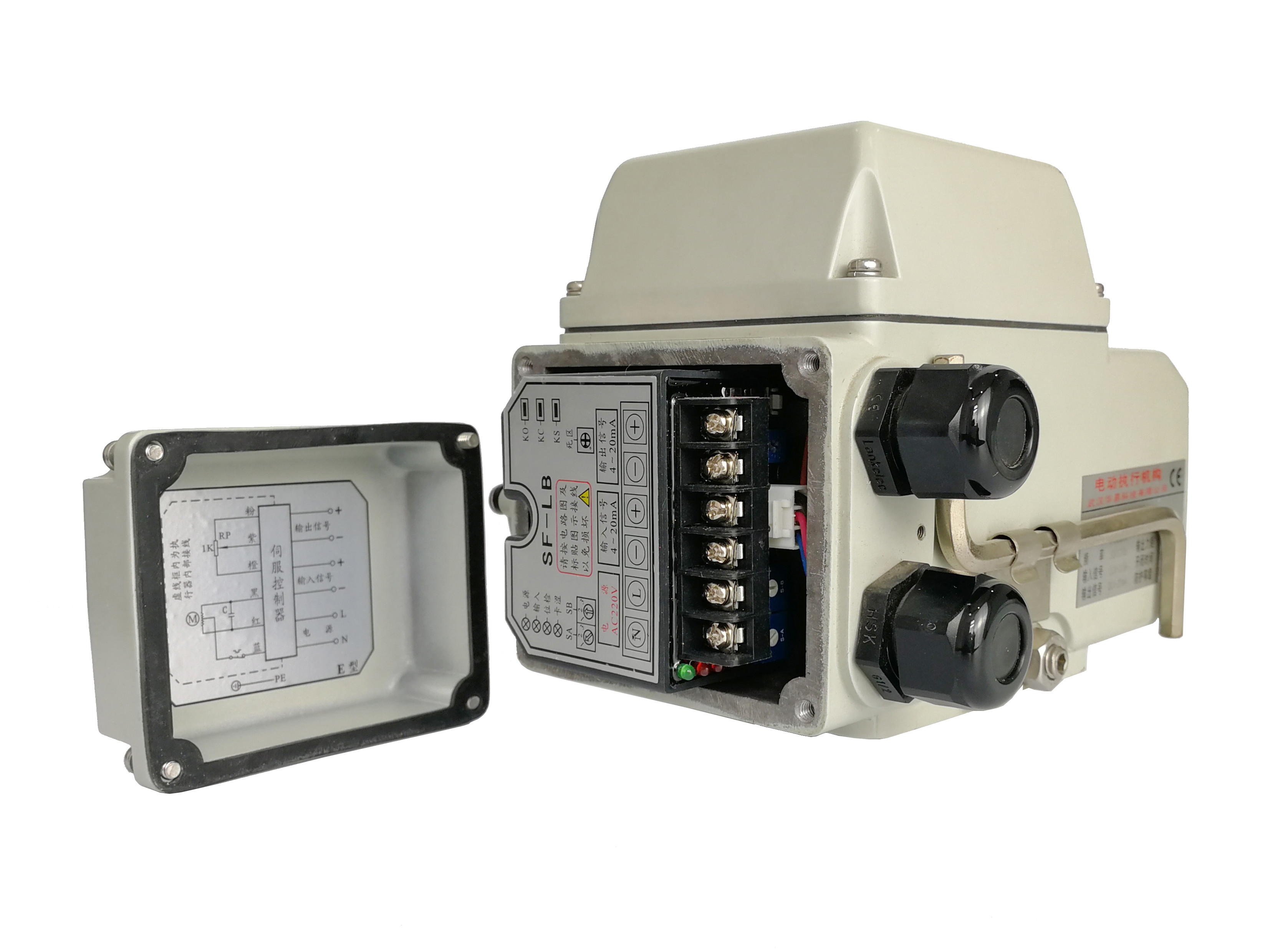

|Electric Interface||Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line|
|Optional Function||Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle|
|Remark||Any other input or output signal needed, please specified in purchase order.|
- Quarter turn operation with modulating controlled by 4-20mA/1-5V/2-10V input signal
- Actuator output drive position is proportional to input signal

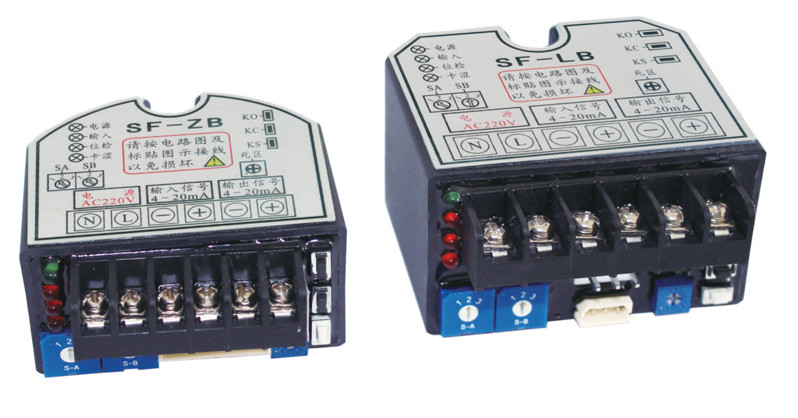

- Smart full potted control pack is located inside actuator with integral design
- Up to 1200 times/hour starting frequency and over 200,000 times starting test with full rated load
- IP 67 and Type 4X hard die cast aluminum alloy housing with NBR sealing
- Output 4-20mA signal for valve position
- Manual override
- CSA certified per UL 429 and CSA C22.2/CE marked
