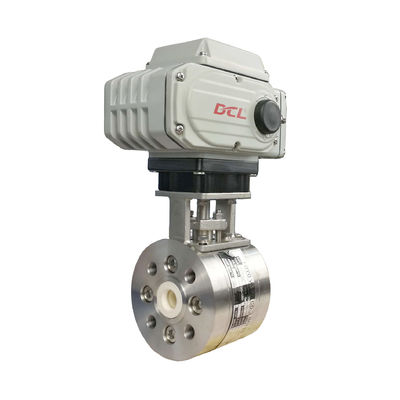

S2 Short Time Duty Cycle 80% Quarter Turn Actuator

  • S2 Short Time Duty Cycle 80% Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL A/B/C/D/F/H model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC Installation Angle 360°
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
High Light

DCL Quarter Turn Actuator

,

80% Quarter Turn Actuator

,

S2 Short Time valve Actuator
Leave a Message
Product Description

S2 short-time duty motorized quarter turn actuator/duty cycle 80%



Features

  • On-off or 3 point floating control
  • 1/4 turn operation, no need additional brake
  • Heavy duty fully enclosed squirrel-cage asynchronous motor
  • Permanent lubricated hard 40Cr gears and high strength copper alloy worm gear that can suffer frequently friction
  • All model passed 10000 times full cycle life tests with full rated load on duty rate 80%
  • ISO5211 multi-flange mounting
  • CSA listed/UL/CE/RoHS 3.0

Description

DCL on-off type electric actuators are S2 short-time duty operation, the duty rate is 80% commonly. Which means, if we regard a standard time as actuator runs from full open to full close, actuator only need stop for only 1/4 of a standard time, then actuator can run from full close to open and repeat above.

If no stop for actuator, it can continuously operate for 15mins then need nearly 4 mins to cool down before operating again. For many severe applications which need to frequently adjust pressure or liquid level, duty rate directly impacts the accuracy of control. High duty rate means more frequently and timely control is possible, especially for 3 point floating control system for refrigeration and heating industries.



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200



Weather Proof 360° CSA Quarter Turn Electric Actuator
