Butterfly Valve 70% ISO5211 Quarter Turn Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-05F/10F/20F/40F/60F/100F/160F/250F
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 20S To 75S/50Nm To 2500Nm/442in.lbs To 22125in.lbs Installation Angle 360°
Total Weight 2.5KG To 20KG Motor Power 8W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC Output Signal 4-20mA
High Light

ISO5211 Quarter Turn Actuator

,

Butterfly Valve Quarter Turn Actuator

,

IP67 Quarter Turn Valve Actuator

Leave a Message
Product Description

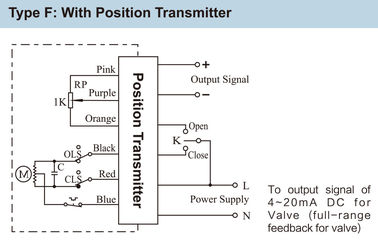

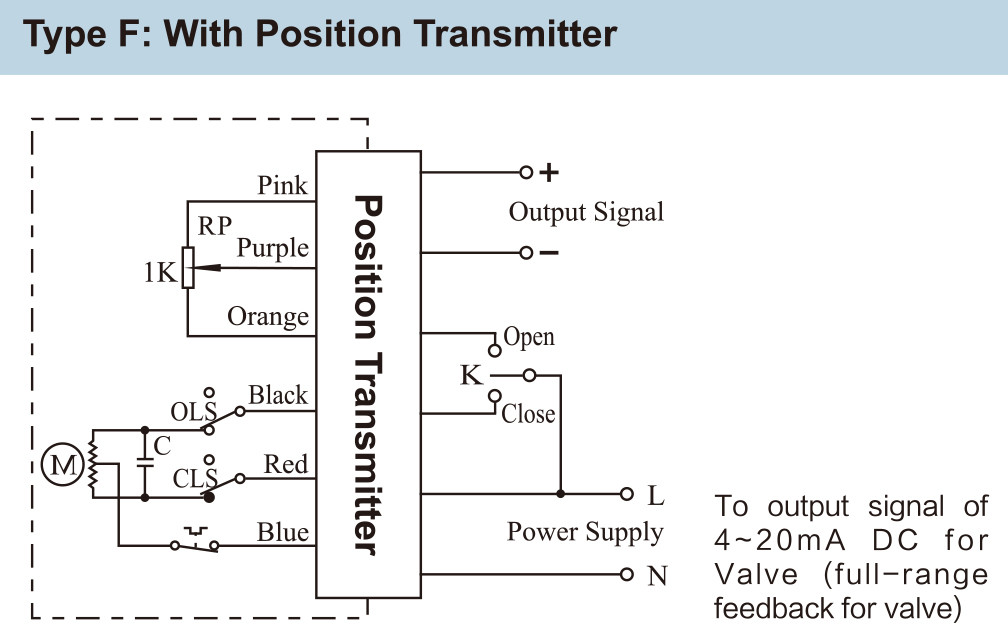

Position transmitter equipped quarter turn actuator/4-20mA feedback for valve position



Features

  • Self-developed position transmitter to output 4-20mA signal of valve position
  • High quality alloy steel sleeve and ball bearings, all metal gear drive
  • Heavy duty motor with 70% duty cycle for severe applications
  • High pressure die cast aluminum alloy enclosure with IP67 and type 4X sealing grade
  • Manual override
  • ISO5211 direct installation
  • CSA listed per UL standard/CE marked/RoHS 3.0



Description

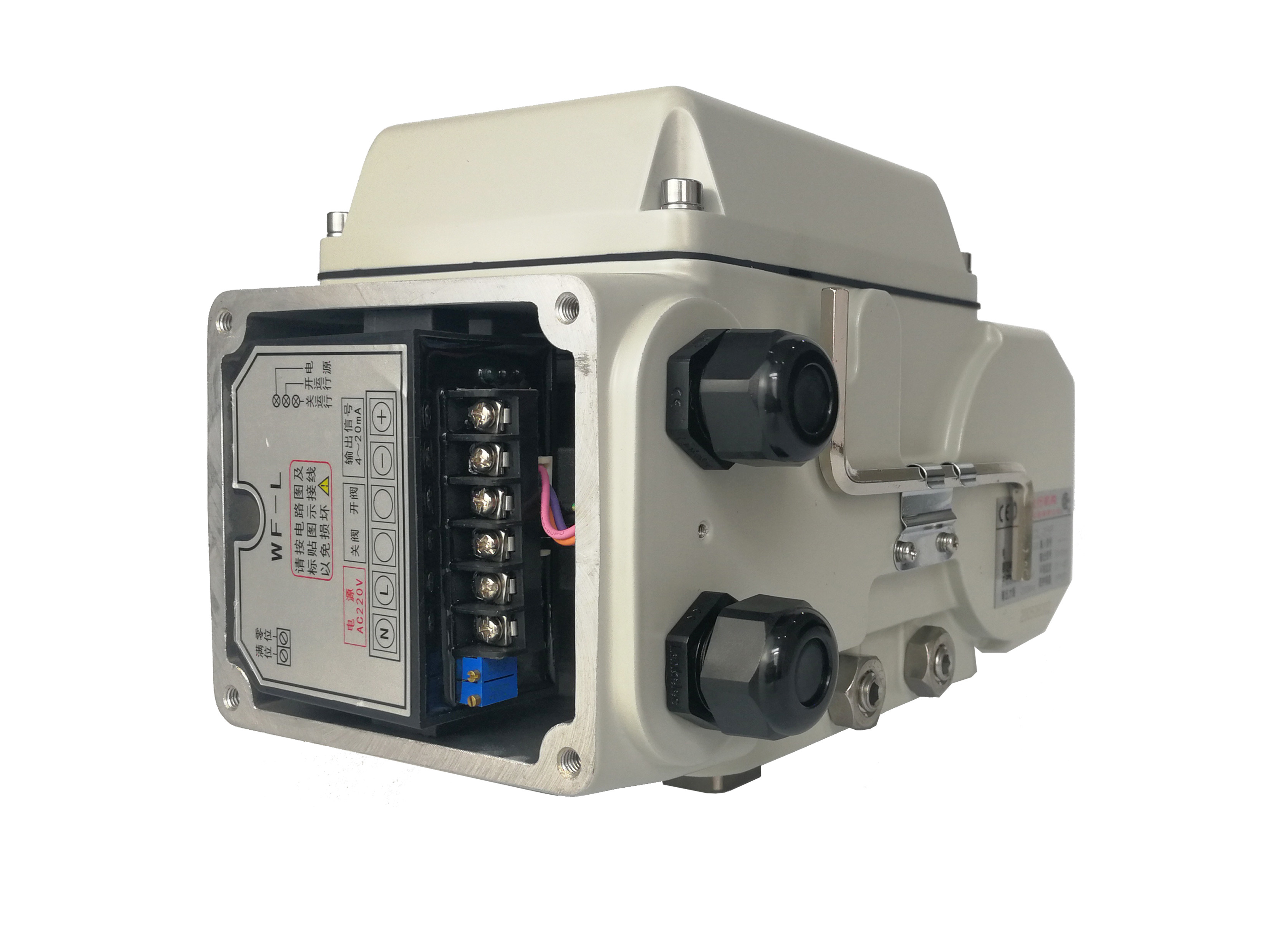

DCL F model electric actuator is equipped with self-developed position transmitter to output 4-20mA analog signal of valve position. It can be widely used in 3-point floating control system to drive quarter turn butterfly valves, ball valves or dampers. This kind of control system can obtain continuous analog signal of valve position signal to decide when to cut off power or reverse power direction.

The duty cycle of actuator is 70% or higher, For on-off type, actuator can keep working for 20mins without stop. For modulating type, actuator can start 1200times/hour. Whole full range open & close life cycle is over 10000 times and 200000 times start up.





Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
