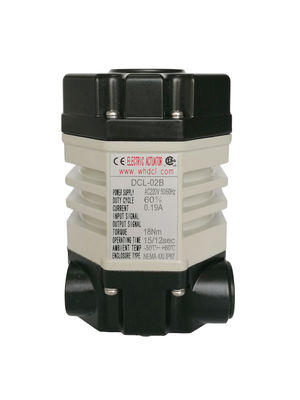

Compact Valve IP67 Quarter Turn Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S/18Nm Optional Time/Torque 7S/9Nm 60S/18Nm
Total Weight 1.2KG Power Supply 24VAC/110VAC/220VAC
Motor Power 6W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
High Light

1000Nm quarter turn electric actuator

,

IP67 Quarter Turn Electric Actuator

,

15S18Nm Electric Actuator

Leave a Message
Product Description

Compact valve electric actuator / quarter turn with 2 more SPDT / strong corrosion resistance



DCL-02 dimension and parameters.pdf



Features

  • Two auxiliary limit switches to confirm valve position
  • Antirust passivation aluminum alloy enclosure with external power coated, resistance to neutral salt spray test for over 1000 hours
  • Non-ventilated motor with high starting torque and small inertia force
  • Metal worm gear drive prevents back driving and hunting
  • Visual valve position indicator
  • Manual override
  • Standard ISO5211 direct installation
  • CSA certified per UL 429 and CSA C22.2, CE mark



Description

DCL-02B can be used to drive valve or swinging arm with full range angle that is no more than 90 degree. The motor is automatically stopped by internal cams striking limit switches. Two more passive contact auxiliary limit switches are added to confirm valve position. Very compact size with unique design, the last stage drive with worm gear to insure self-locking. Actuators are tested to rigorous UL and CSA standards and certified by CSA.



Performance Parameters
Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25+55
Fuse 2A 3A 1A 1A 2A



Compact Valve IP67 Quarter Turn Electric Actuator 0Compact Valve IP67 Quarter Turn Electric Actuator 1
