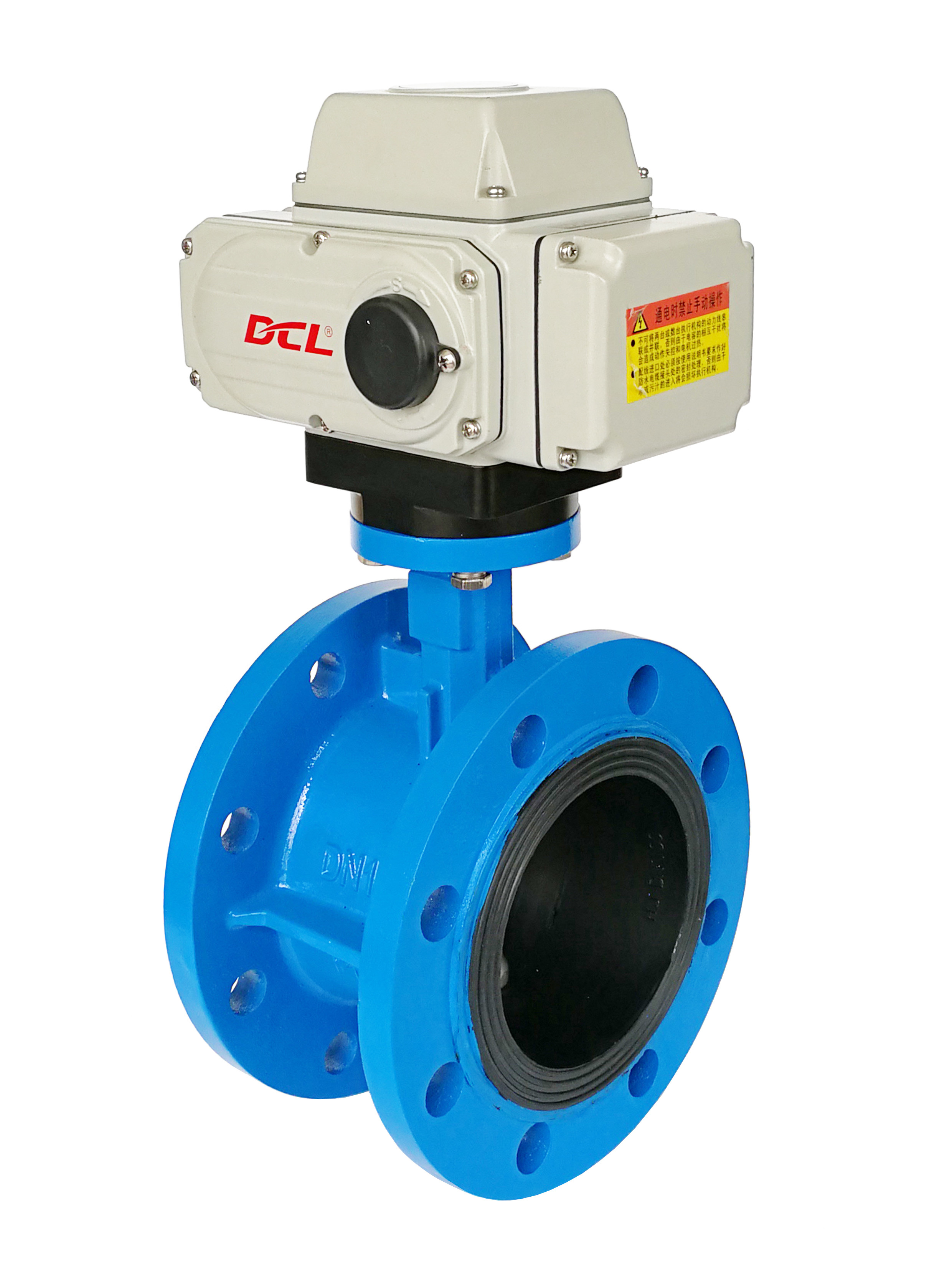

Al Alloy DC24V Electric Flanged Butterfly Valve with CSA / CE / UL

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-05
Minimum Order Quantity 1pc
Price USD120-250/PC
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name On-off Electric Butterfly Valve Power DC24V/AC24V/AC110V/AC380V/AC220V
Standard Time/Torque 20S/50Nm Protection Class IP67
Motor Power 13W/10W/6W Material Of Seal Surface Soft Sealed
Rated Current 0.07~1.5A Connection Form Flange
High Light

DC24V electric butterfly valve


butterfly valve motorized actuator


IP67 electric butterfly valve

Leave a Message
Product Description

DC24V Al-Alloy Material on-off electric butterfly Valve, electric actuator with Ce/CSA/RoHS Certificate



Name: On-off Electric Butterfly Valve
Standard Time/Torque: 20S/50Nm
Motor Power: 13W/10W/6W
Rated Current: 0.07~1.5A
Power: DC24V/AC24V/AC110V/AC380V/AC220V
Protection Class: IP67
Material Of Seal Surface: Soft Sealed
Connection Form: Flange

Product specification

Power 24VDC 24VAC 110VAC 220VAC 380VAC
Motor power 13W/10W/10W/6W/10W
Rated Current 1.28A/1.50A/0.24A/0.07A/0.16A
Standard time/Torque 20s/50Nm
Optional Time/Torque 4s/20Nm 10s/30Nm 100s/50Nm
Turning Angle 0~90° Adjustable,0~360° Adjustable
Avaliable Control Circuit Types of A,B,C,D,E,F,G,H
Total weight 2.5kg
Protection Class IP67
Installation angle 360° at any angle
Electric interface Two G1/2 water-proof Cable connectors, one for power line and one for signal line
Ambient Temperature -25℃~+55℃
Optional Fuction Dehumidify Heater/ Dome indicator
