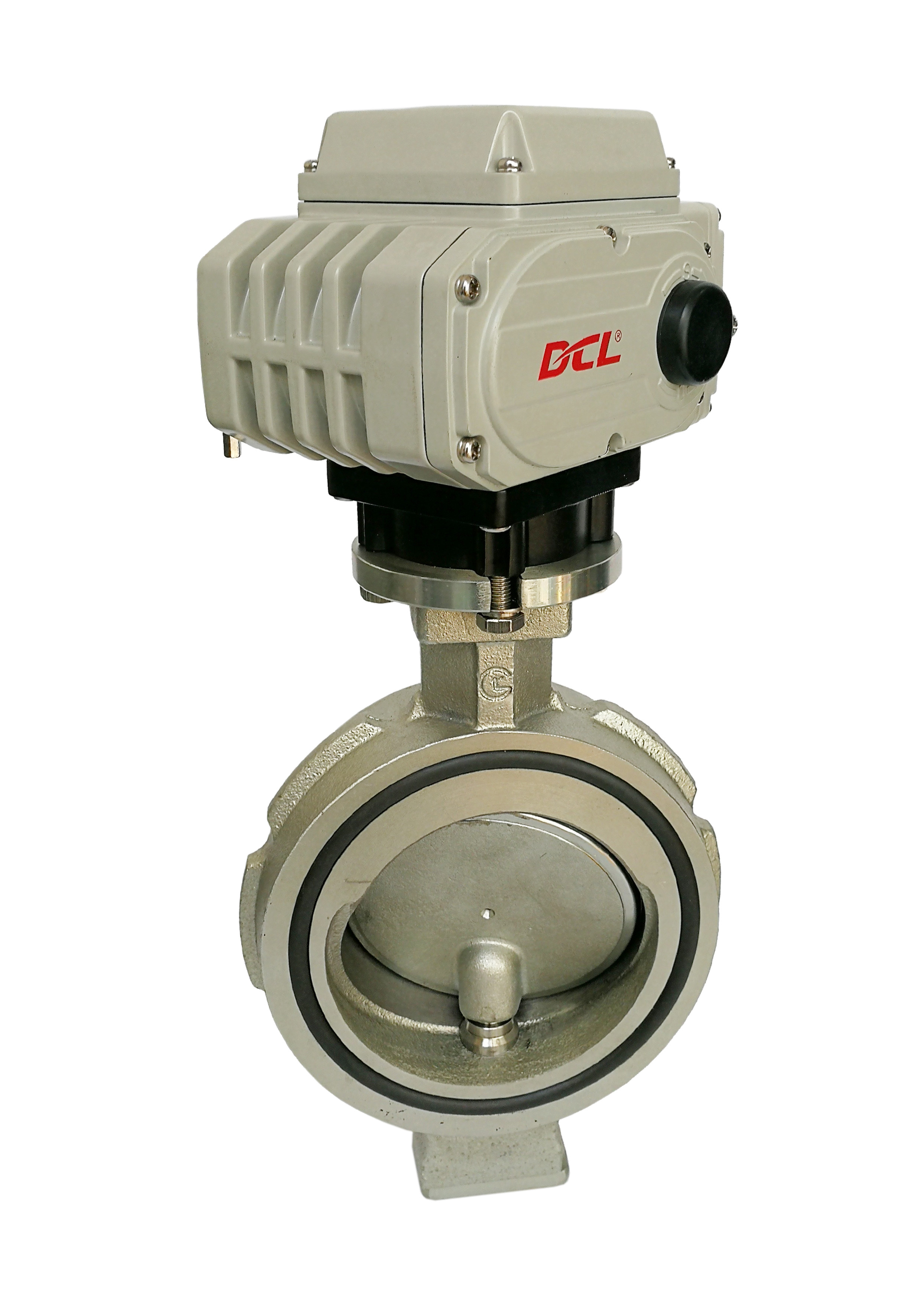

Refrigeration Pipe Used Electric Adjustable Triple Eccentric Butterfly Valve

  • Refrigeration Pipe Used Electric Adjustable Triple Eccentric Butterfly Valve
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Description

DCL’s electric actuated triple eccentric butterfly valves are widely used to replace thermal expansion valves (TEV) in refrigeration and air conditioning systems. It is more cost saving compared to TEV. Many current refrigeration systems have been controlled by PLC system with temperature sensors. With 4-20mA or 2-10VAC input control signal, this modulating valve can control refrigerant flow very precisely to reach the target temperature.





Specification

Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200





Butterfly Valve

Type: Triple eccentric

Seat: Soft or hard seal optional

Size: DN50-DN150 (2’ – 6’)

For different liquid or air refrigerants, please contact DCL for different seat materials.



Electric Actuator

Type: Modulating

Power Supply: 220VAC or 24VDC optional

Torque: 50Nm to 600Nm

Input Signal: 4-20mA or 2-10VDC optional

Output Signal: 4-20mA
