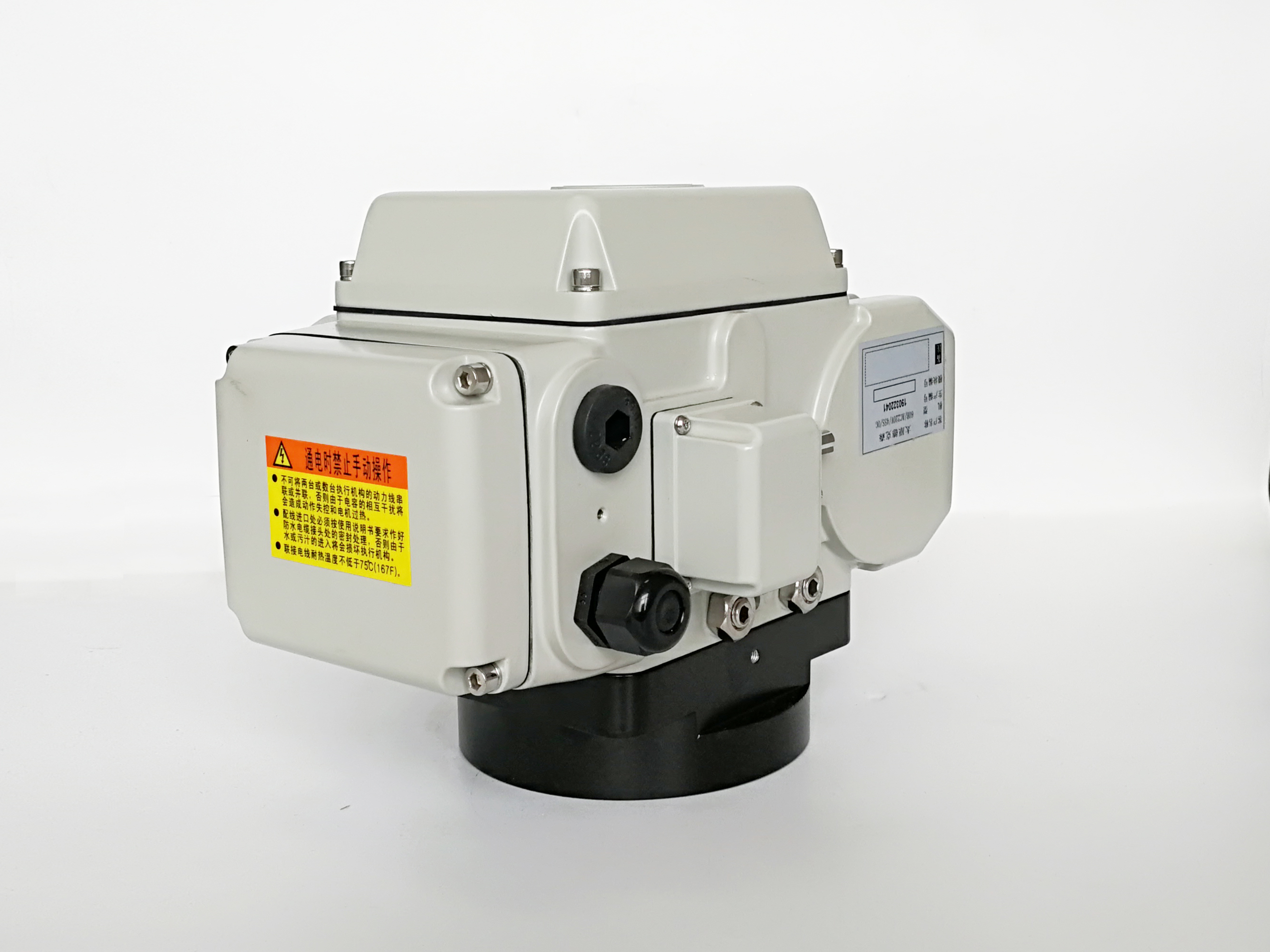

IP67 CSA CE/UL 20Nm 2S Quick-Opening Electric Actuator

  • IP67 CSA CE/UL 20Nm 2S Quick-Opening Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-K40
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,
Supply Ability 5000PCS/month
Product Details
Name Quick Open And Close Electric Actuator Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Type Fast Speed Actuator Operation 1/4 Turn Operation
Protection Grade IP67 Life Over 10000 Times Life Cycle
Leave a Message
Product Description

DCL-K10 Product Features

  • Available in 20 Nm/2 s, 45 Nm/4 s and 72 Nm/8 s configurations.

  • Adjustable 0–90° travel; operating times are based on a full 90° stroke.

  • Supports DC24V, AC24V, AC110V, AC220V and AC380V.

  • Type G control circuit for DC24V operation.

  • Type A/B control circuits for AC24V, AC110V and AC220V.

  • Type H three-phase control circuit for AC380V.

  • IP67 as standard, with IP68 optional.

  • Stated ambient-temperature range of -25°C to +55°C.

  • ISO 5211 F05/F07 direct-mount interfaces.

  • 9×9, 11×11 and 14×14 mm drive-square options.

  • Two G1/2 weatherproof cable connectors for power and signal wiring.

  • Optional anti-condensation heater, dome indicator and manual operation.

Key Specifications

Parameter DCL-K10 Specification
Quick-opening time/torque 25 Nm/2 s; 50 Nm/4 s; 80 Nm/8 s
Operating-time basis Full 0–90° stroke
Travel angle Adjustable 0–90°
Power supply DC24V, AC24V, AC110V, AC220V, AC380V
Motor power 25 W for DC and main AC versions; 15 W for AC380V
Control circuit DC24V: Type G; single-phase AC: Type A/B; AC380V: Type H
Enclosure rating IP67 standard; IP68 optional
Ambient temperature -25°C to +55°C
Total weight Approximately 4.5 kg
Installation orientation 360°
Cable entries Two G1/2 weatherproof cable connectors
Mounting flange ISO 5211 F05/F07
Drive square 9×9, 11×11 or 14×14 mm
Permitted stem height ≤19 mm
Optional functions Anti-condensation heater, dome indicator, manual operation

Product Description

The DCL-K10 is a quick-opening electric actuator for compatible quarter-turn valves and automated equipment requiring short operating times. Three torque and speed configurations are available: 25 N·m at 2 seconds, 50 N·m at 4 seconds, or 80 N·m at 8 seconds, each measured over a 90° stroke.

Match Operating Speed to Torque Requirements

Torque capacity depends on the selected operating time. The two-second configuration delivers 25 N·m; the 80 N·m configuration requires 8 seconds. Select the configuration against the valve’s maximum operating torque and required travel time rather than combining the highest torque with the shortest time.

Power Supply and Control Options

Available supplies include 24V DC, 24V AC, 110V AC, 220V AC and 380V AC. Control circuits depend on the selected supply:

  • Type G: 24V DC.

  • Type A/B: 24V, 110V or 220V single-phase AC.

  • Type H: 380V three-phase AC.

Confirm the required wiring and status signals for the selected circuit before installation.

Mounting and Environmental Specifications

The DCL-K10 provides adjustable 0–90° travel and ISO 5211 F05/F07 direct-mount interfaces. Available drive squares include 9 × 9, 11 × 11, 14 × 14 and 17 × 17 mm, with a permitted valve-stem height of up to 19 mm.

The enclosure is IP67 as standard, with IP68 optional, and the specified ambient temperature range is −25°C to +55°C. Two G1/2 weatherproof cable connectors provide separate entries for power and signal wiring.

Application Limits

The quick-opening range is unsuitable for applications requiring actuator self-locking, including butterfly-valve duties where self-locking is necessary. Confirm whether process torque could back-drive the valve before selecting this configuration.

Final selection should verify torque, operating time, self-locking requirements, mounting dimensions and site conditions. Fast travel alone does not establish suitability for emergency shutdown service.
