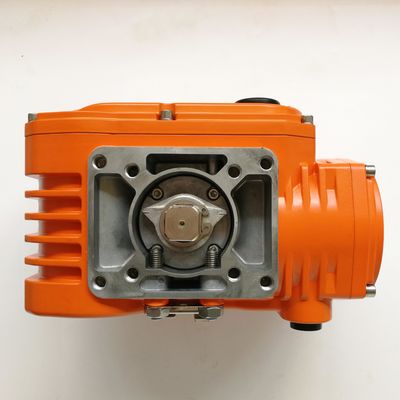

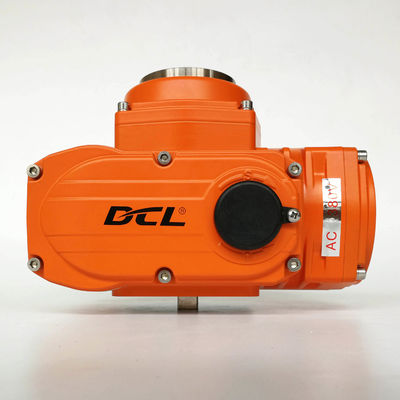

Explosion Proof ExdIICT4 IP68 Quick Open Electric Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 24VAC/110VAV/220VAC/380VAC/24VDC | Installation Angle | 360° |
|---|---|---|---|
| Ambient Temperature | -25℃~+55℃ / -13°F~+131°F | Protection Grade | IP68 |
| High Light | IP68 Quick Open Electric Actuator,ExdIIBT4 Quick Open Electric Actuator |
||
Product Description
Explosion proof quick open electric actuator / ExdⅡC T4 grade for Zone 1 and Division 1
Features
- 90° operation with mechanical limits
- ExdIIBT4 for ATEX/UL Zone system and Group C, D T4 for UL Division system
- Cylinder stop type flame proof connection surfaces per ATEX and UL standard, 100% supplier quality tests for machining precision
- Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68
- Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa)
- Non-ventilated motor with fire treatment
- Stainless steel valve indicator with 10mm tempered glass, keep strong hardness from -30℃ to 60℃, -22F to 140F
- Manual override with Allen wrench or Handwheel
- ISO5211 multi flange mounting
Description
DCL explosion proof quick open electric actuators are widely used in environment with flammable gases to drive butterfly valves and ball valves. Kinds of output speed are optional per automation system requirements. Since multi head worm gear is used to improve transmission efficiency, we add relay inside actuator to ensure no leakage and no back drive when driving butterfly valves.
Specification
| Type | Ex05E | Ex10E | Ex20E | Ex40E | Ex60E |
| Power | AC110V/AC220V | ||||
| Output Torque | 50Nm | 100Nm | 200Nm | 400Nm | 600Nm |
| Acting Time | 20S | 30S | 30S | 30S | 45S |
| Turning Angle | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Motor Power | 10W | 25W | 40W | 90W | 90W |
| Rated Current | 0.24/0.15A | 0.57/0.30A | 0.63/0.35A | 1.12/0.64A | 1.18/0.67A |
| Total Weight | 3.0kg | 5.0kg | 5.5kg | 9.5kg | 10.0kg |
| Input Signal | 4-20mADC,1-5VDC,2-10VDC | ||||
| Output Singal | 4-20mADC | ||||
| Basic Error | not more than ±1% | ||||
| Reciprocating Error | not more than 1% | ||||
| Dead Space | 0.5%-5.0% adjustable | ||||
| Damping Characteristic | 0 times | ||||
| Repeating Error in Actuator | ≤1% | ||||
| Insulating Resistance | 100MΩ/500VDC | ||||
| Withstand Voltage Class | 1500VAC 1minutes | ||||
| Protection Class | IP67 | ||||
| Explosive-proof grade | Exd II CT4Gb | ||||
| Installation Angle | 360°at any angle | ||||
| Electric Interface | 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected. | ||||
| Ambient Temperature | -20℃~+60℃ | ||||
| Optional Function | Over-torque protector/Dehumidify Heater/Passive contact switch | ||||
| Remark | Any other input or output signal needed, please specified in purchase order. | ||||
