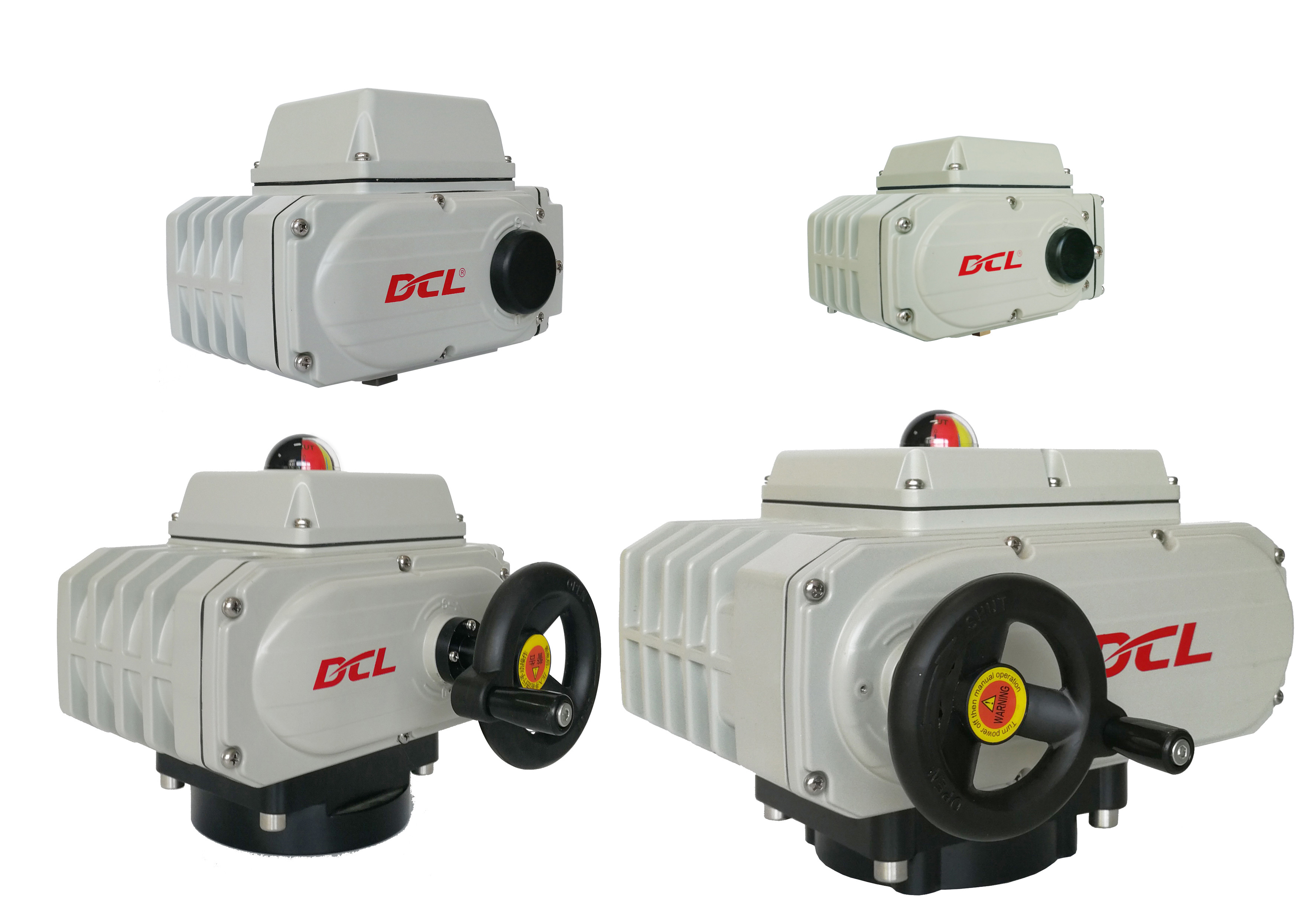

80Nm Quick Open Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Quick Open Electric Actuator | Protection Grade | IP67 Waterproof |
|---|---|---|---|
| Installation Angle | 360° | Torque/Time | 25Nm/2S 50Nm/4S 80Nm/8S |
| Total Weight | 4.5KG | Operation | 1/4 Turn Operation |
| High Light | dcl Quick Open Electric Actuator,8S Quick Open Actuator,80Nm Quick Open Actuator |
||
Product Description
Quick open electric actuator with 2 two auxiliary limit switches to confirm valve position
Description
DCL quick open electric actuators can add two SPDTs to confirm valve positions. All limit switches are made by Omron Japan, with 100,000 times life cycles and above. Patent designed block adjustment from upper side, not from side end, to save field adjustment time. All electronics and wiring components such as cables and terminals are tested and certified by CSA per UL/CSA standard, tested by SGS per CE standard, CE marked.
Specification:
| Type | DCL-K05 | DCL-K10 | ||||
| Power Supply | DC24V | AC24V AC110V AC220V | AC380V | DC24V | AC24V AC110V AC220V | AC380V |
| Motor Power | 13W | 10W | 10W | 25W | 25W | 15W |
| Max Current | 3.0A | 1.50A 0.24A 0.16A | 0.07A | 6.0A | 2.12A 0.57A 0.35A | 0.10A |
| Torque/Time | 15Nm/2S 30Nm/5S | 15Nm/3S 30Nm/6S | 25Nm/2S 50Nm/4S 80Nm/8S | |||
| Avaliable control circuit | Type G | Types of A/B | Type H | Type G | Types of A/B | Type H |
| Turning Angle | 0～270° Adjustable | 0～90° Adjustable | ||||
| Total Weight | 2.5kg | 4.5kg | ||||
| Insulating Resistance | DC24V:100MΩ/250VDC AC24V~380V: 100MΩ/500VDC | |||||
| Withstand Voltage Class | DC/AC24V:500VAC 1minute AC110/220V:1500V 1minute AC380V:1800V 1minute | |||||
| Protection Class | IP67 | |||||
| Installation Angle | 3600 at any angle | |||||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors | |||||
| Ambient Temperature | -25～+55℃ | |||||
| Optional Function | Heater/Dome indicator | Heater/Dome indicator/Handle | ||||
Features
- 1/4 turn operation with adjustable mechanical limits
- Two auxiliary limit switches to confirm valve position
- Antirust passivation aluminum alloy enclosure with external power coated
- Non-ventilated motor with high starting torque and small inertia force
- All metal gear train and bronze alloy worm gear drive
- Visual valve position indicator
- Manual override
- Standard ISO5211 direct installation
