IP67 Quick-Opening Electric Actuator 2–8 s 25–80 Nm
Product Details
| Name | Quick Open And Close Electric Actuator | Power Supply | 24VAC/110VAV/220VAC/380VAC/24VDC |
|---|---|---|---|
| Type | Fast Speed Actuator | Operation | 1/4 Turn Operation |
| Protection Grade | IP67 | Life | Over 10000 Times Life Cycle |
| Highlight | IP67 quick-opening electric actuator,electric actuator 25–80 Nm torque,quick-open actuator 2–8 seconds |
||
Product Description
DCL-K10 Product Features
-
Available in 25 Nm/2 s, 50 Nm/4 s and 80 Nm/8 s configurations.
-
Adjustable 0–90° travel; operating times are based on a full 90° stroke.
-
Supports DC24V, AC24V, AC110V, AC220V and AC380V.
-
Type G control circuit for DC24V operation.
-
Type A/B control circuits for AC24V, AC110V and AC220V.
-
Type H three-phase control circuit for AC380V.
-
IP67 as standard, with IP68 optional.
-
Stated ambient-temperature range of -25°C to +55°C.
-
ISO 5211 F05/F07 direct-mount interfaces.
-
9×9, 11×11 and 14×14 mm drive-square options.
-
Two G1/2 weatherproof cable connectors for power and signal wiring.
-
Optional anti-condensation heater, dome indicator and manual operation.
Key Specifications
| Parameter | DCL-K10 Specification |
|---|---|
| Quick-opening time/torque | 25 Nm/2 s; 50 Nm/4 s; 80 Nm/8 s |
| Operating-time basis | Full 0–90° stroke |
| Travel angle | Adjustable 0–90° |
| Power supply | DC24V, AC24V, AC110V, AC220V, AC380V |
| Motor power | 25 W for DC and main AC versions; 15 W for AC380V |
| Control circuit | DC24V: Type G; single-phase AC: Type A/B; AC380V: Type H |
| Enclosure rating | IP67 standard; IP68 optional |
| Ambient temperature | -25°C to +55°C |
| Total weight | Approximately 4.5 kg |
| Installation orientation | 360° |
| Cable entries | Two G1/2 weatherproof cable connectors |
| Mounting flange | ISO 5211 F05/F07 |
| Drive square | 9×9, 11×11 or 14×14 mm |
| Permitted stem height | ≤19 mm |
| Optional functions | Anti-condensation heater, dome indicator, manual operation |
Product Description

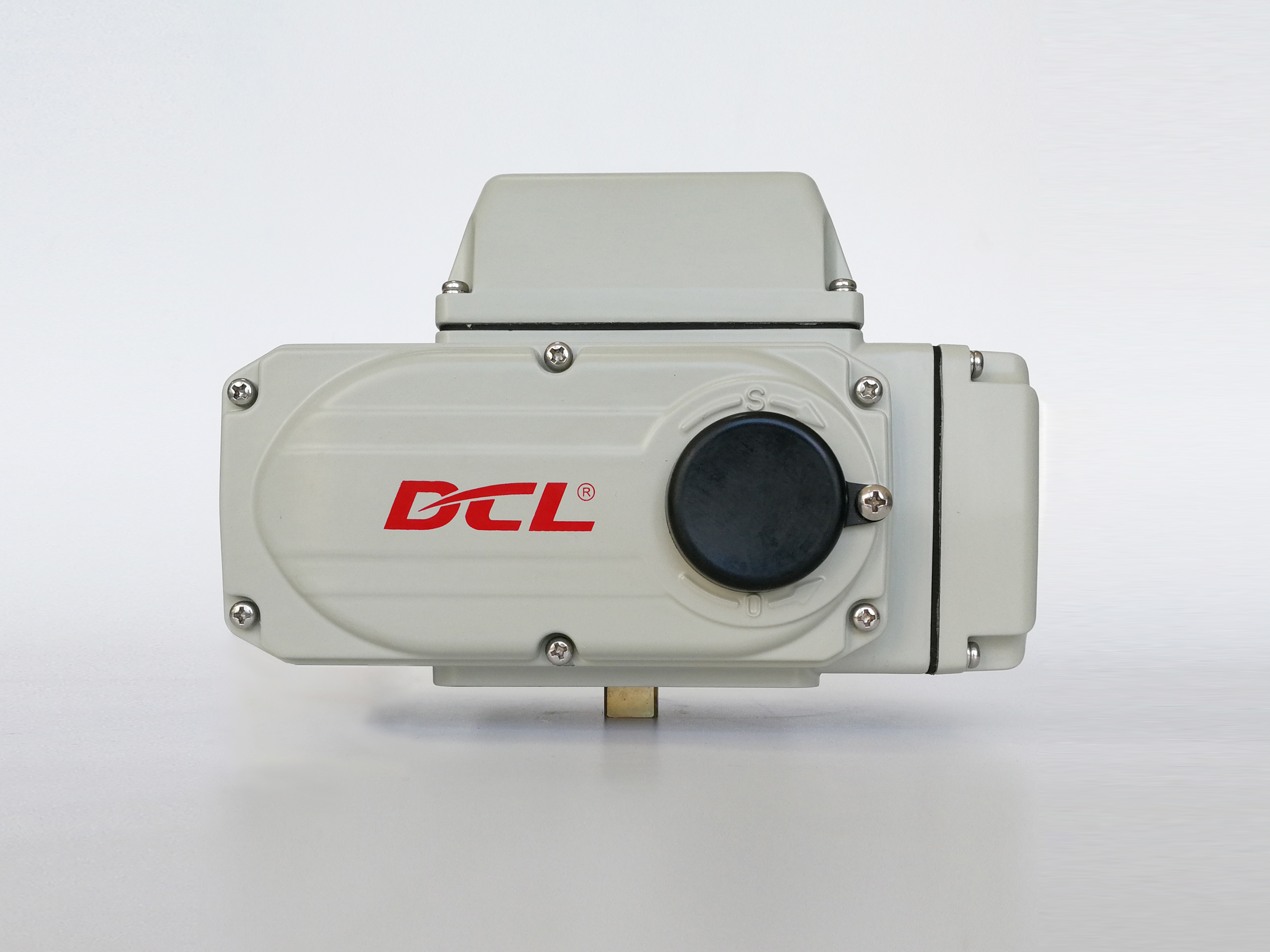

The DCL-K10 is a quick-opening electric actuator for small quarter-turn valves and automated equipment requiring a defined short response time. Available configurations provide a full 90° stroke at 25 Nm in two seconds, 50 Nm in four seconds or 80 Nm in eight seconds.
Power-supply options include DC24V, AC24V, AC110V, AC220V and AC380V. The control circuit depends on the supply: Type G is used for DC24V, Type A/B for the listed single-phase AC versions and Type H for AC380V three-phase operation.
The actuator has adjustable 0–90° travel and ISO 5211 F05/F07 direct-mount interfaces. IP67 is standard, IP68 is optional, and the stated ambient-temperature range is -25°C to +55°C. Two G1/2 weatherproof cable connectors separate the power and signal wiring.
Available torque is directly related to operating time. The two-second version provides 25 Nm and should not be described as an 80 Nm two-second actuator. The correct configuration must be selected according to the valve’s maximum operating torque and required response time.
The product documentation states that the quick-opening range is not suitable for butterfly valves or other valves requiring a self-locking actuator. Before selection, engineers should confirm that process torque cannot back-drive the valve and verify the mounting flange, drive square and valve-stem height.
