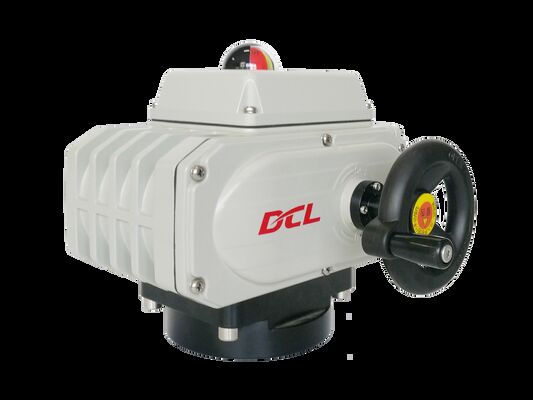

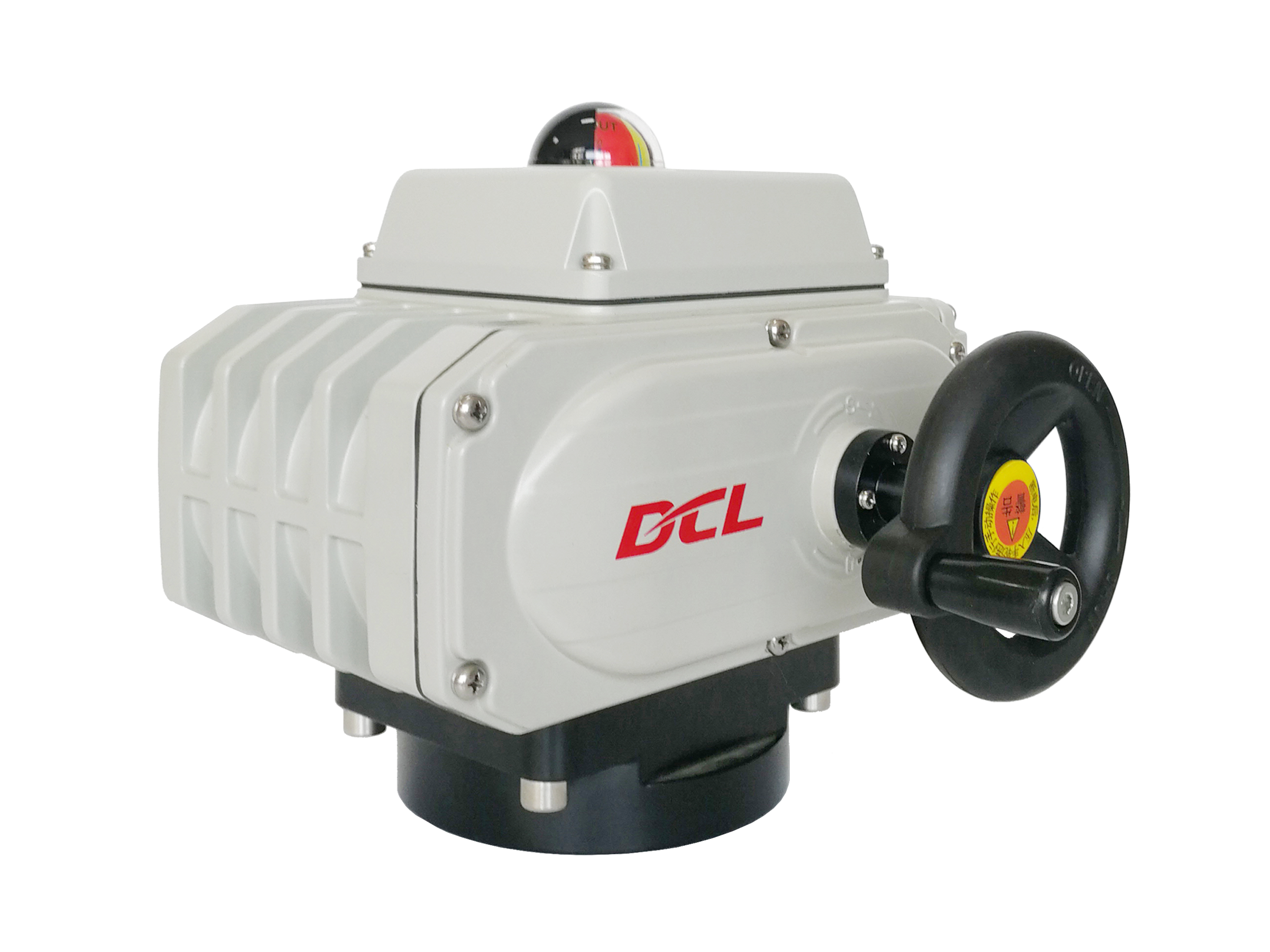

CSA ISO5211 AC220V 200Nm Self calibrating Smart Electric Actuator

  • CSA ISO5211 AC220V 200Nm Self calibrating Smart Electric Actuator
  • CSA ISO5211 AC220V 200Nm Self calibrating Smart Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000 PCS/month
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC Motor Power 6W To 140W
Standard Torque 50Nm To 2500Nm/442in.lbs To 22125in.lbs Standard Time 20S To 75S
Input Signal 4-20mADC/1-5VDC/2-10VDC Output Signal 4-20mADC
Protection Grade IP67 NEMA4/4X Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
Highlight

CSA ISO5211 electric actuator

,

self-calibrating smart actuator

,

AC220V 200Nm actuator
Leave a Message
Product Description

Self calibrating smart electric actuator with positioning module / repeating error ≤ 1%

Features

  • Quarter turn with mechanical limits
  • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
  • Over torque protection by torque test function of smart full potted controller
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • Heavy duty motor with thermal overload protection
  • Weather proof aluminum alloy enclosure with thermally bonded polyester coating
  • Valve position indicator/flat indicator or convex indicator available
  • Output 4-20mA signal for valve position
  • Self-calibrating and problem self-checking function
  • Standard ISO5211 multi-flange valve mounting
  • Manual override with wrench or handwheel
  • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-200E DCL-300E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 2000Nm 3000Nm
Acting Time 20S 30S 30S 30S 45S 30S 90S 110S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.

Description

The DCL modulating electric actuator features an integrated design that combines the motor, control module, and housing in one unit.

Unlike many other electric actuators that require an additional separate compartment for the controller, resulting in a bulky and uncompact appearance, the DCL actuator is equipped with an ultra-compact multifunctional control module. Its size is comparable to that of a standard on-off type terminal block, allowing it to be neatly installed within the wiring compartment.

This intelligent control module is fully potted to safeguard electronic components against vibration and moisture.

The actuator has successfully passed stringent EMC tests, including EFT, ESD, and surge tests, and holds CSA certification in compliance with UL and CSA standards.

CSA ISO5211 AC220V 200Nm Self calibrating Smart Electric Actuator 0

CSA ISO5211 AC220V 200Nm Self calibrating Smart Electric Actuator 1
