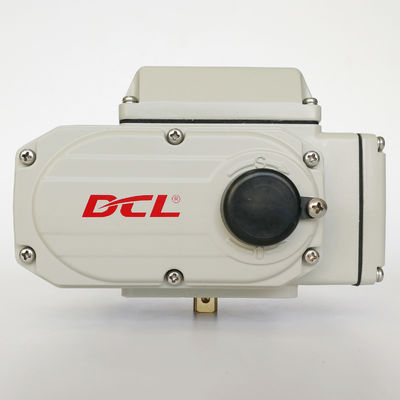

Under DN600 Butterfly Valve 2500Nm Marine Electric Actuator

  • Under DN600 Butterfly Valve 2500Nm Marine Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-250
Minimum Order Quantity 1pc
Price USD500-700/PC
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 75S/2500Nm Type On-off, Modulating
Protection Class IP67 Name Marine Electric Actuator
Application Petroleum, Chemical Industrial Field Ambient Temperature -25℃~+55℃
Motor Power 100W/140W Material Of Seal Surface Soft Sealed/Metal Sealed
High Light

DCL smart electric actuator

,

2500Nm Marine Electric Actuator

,

DN600 Butterfly Valve Actuator
Leave a Message
Product Description

Marine Electric actuator with torque 2500Nm, can install with butterfly and ball valve under DN600



Performance Parameters
Type DCL-100 DCL-160 DCL-250
　 AC110V AC220V AC380V AC110V AC220V AC380V AC110V AC220V AC380V
Motor Power 120W 120W 90W 140W 140W 100W 140W 140W 100W
Rated Current 1.93A 0.94A 0.44A 1.75A 0.96A 0.46A 1.75A 0.98A 0.48A
Standard Time/Torque 30S/1000Nm 48S/1600Nm 75S/2500Nm
Optional Time/Torque 15S/500Nm 　 　
Turning Angle 0～90° Adjustable
Available Control Circuit Type of A,B,C,D,E,F,H
Total Weight 19kg 19.5kg 20kg
Insulating Resistance 100MΩ/500VDC 100MΩ/500VDC 100MΩ/500VDC
Withstand Voltage Class 1500VAC 1minute 1800VAC 1minute 1500VAC 1minute 1800VAC 1minute 1500VAC 1minute 1800VAC 1minute
Protection Class IP67
Installation Angle 360° at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25～+55℃
Optional Function Over-torque Protector/Heater/Dome indicator/Handle



Company profile



Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for electric actuator, electric valve and its automatic control system. The main leading product, DCL series electric actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.

Application


DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.


Product specification

Model DCL-250
Power 110VAC/220VAC/380VAC
Motor power 140W/140W/100W
Rated Current 1.75A/0.98A/0.48A
Standard time/Torque 75s/2500Nm
Optional Time/Torque ---------------
Turning Angle 0~90° Adjustable
Avaliable Control Circuit Types of A,B,C,D,E,F,H
Total weight 20kg
Protection Class IP67
Installation angle 360° at any angle
Electric interface Two G1/2 water-proof Cable connectors, one for power line and one for signal line
Ambient Temperature -25℃~+55℃
Optional Fuction  Over-torque Protector/Dehumidify Heater/ Dome indicator/Handle
