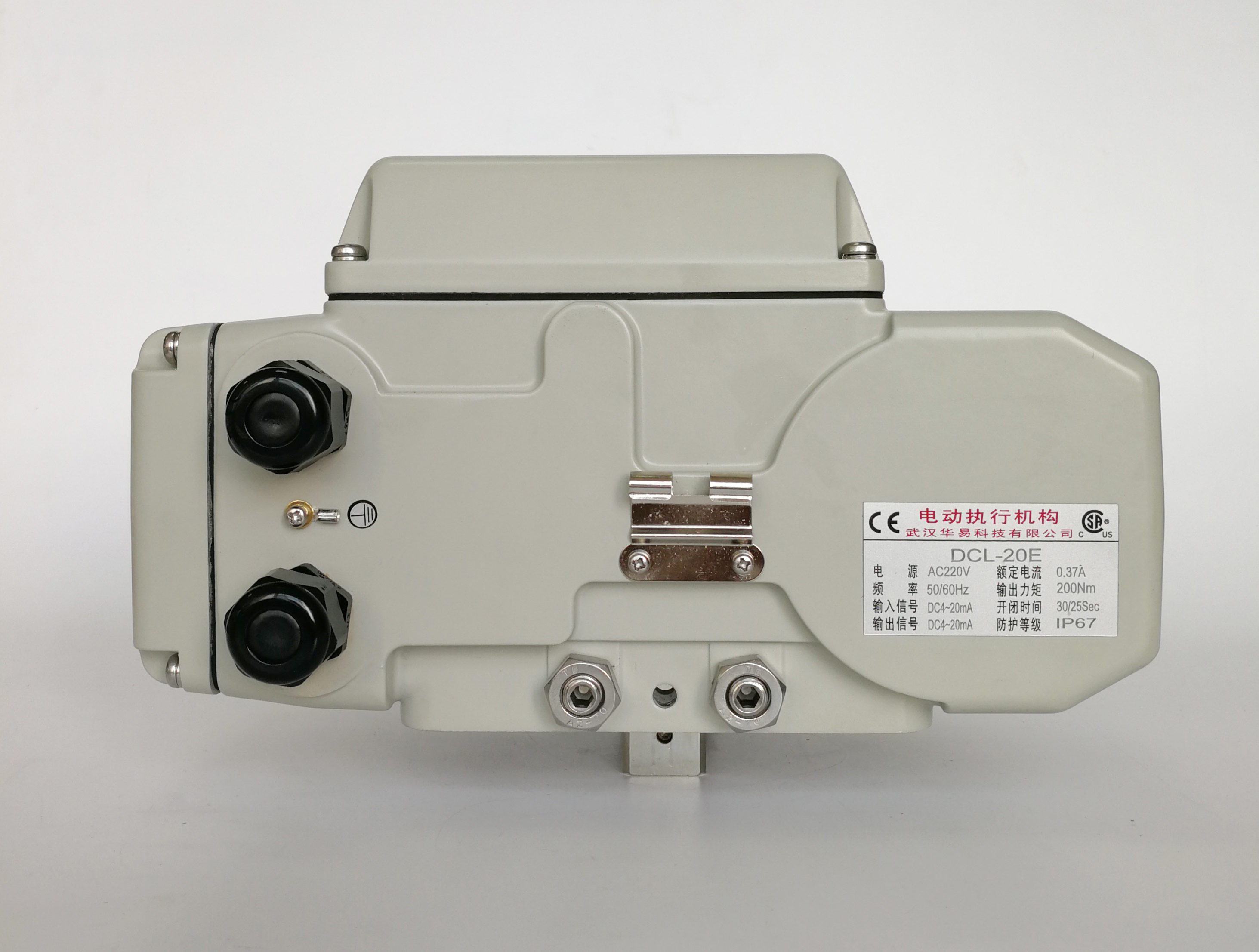

Compact 30S 200Nm 4-20mADC Explosion Proof Electric Actuator

  • Compact 30S 200Nm 4-20mADC Explosion Proof Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Standard Torque 50Nm To 2500Nm/442in.lbs To 22125in.lbs Standard Time 20S To 75S
Input Signal 4-20mADC/1-5VDC/2-10VDC Output Signal 4-20mADC
Power Supply 24VAC/110VAV/220VAC/380VAC Motor Power 6W To 140W
Protection Grade IP67 NEMA4/4X Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
Highlight

explosion proof electric actuator

,

compact 30S electric actuator

,

4-20mADC smart actuator
Leave a Message
Product Description

Features

  • 1/4 turn operation with self-locking
  • 640 hours continuous operation tests in 85℃ and 85% humidity environment.
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • One-way breathing apparatus is optional
  • Insulating class F induction Motor with overheating protection
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • De-clutchable manual override
  • Over 10000 times full range life cycle with full rated load
  • Heavy duty motor with thermal overload protection
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Self-locking worm gear train, no additional brake needed
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
  • Standard ISO 5211 multi-flange valve mounting

Description

DCL compact electric actuators are widely applied in HVAC systems, especially in combination with butterfly valves. In modern building automation systems (BAS), they are commonly used to precisely control indoor temperature, air volume, water flow, condensate discharge, and hydraulic balancing.

During installation and commissioning, opening the actuator cover for wiring and adjustment is sometimes unavoidable. In humid environments or regions with significant day-night temperature differences, condensation can easily form inside the actuator housing. Therefore, a thermostatically controlled anti-condensation heater is essential to ensure long-term operational reliability.

DCL’s patented one-way breathing apparatus provides an advanced solution to condensation risk. It allows internal moisture vapor to escape outward while preventing external moisture from entering. Even after the heater is powered off, repeated condensation is effectively avoided. This innovative design ensures comprehensive protection of the actuator’s internal components and significantly enhances durability and service life.

Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-200E DCL-300E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 2000Nm 3000Nm
Acting Time 20S 30S 30S 30S 45S 30S 90S 110S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.
Tags:

DCL smart electric actuator

IP67 Smart Electric Actuator

CSA Quarter turn electric actuator
