Electric Positioning 400Nm 30S Quarter Turn Actuator

  • Electric Positioning 400Nm 30S Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Product Name Quarter Turn Electric Actuator Motor Power 6W To 140W
Protection Grade IP67 NEMA4/4X Feature Corrosion Resistant Actuator
With Electric Positioning System Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Color Grey/Black Or Customized
Highlight

400Nm electric quarter turn actuator

,

smart electric positioning actuator

,

30S quarter turn actuator with warranty
Leave a Message
Product Description

DCL-05E~250E parameters.pdf

Corrosion-resistant quarter turn electric actuator with electric positioning system

Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-200E DCL-300E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 2000Nm 3000Nm
Acting Time 20S 30S 30S 30S 45S 30S 90S 110S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.

Features

  • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
  • 1000 hours salt spray and C3 level corrosion resistance
  • Valve position indicator/flat indicator or convex indicator available
  • Quarter turn with proportional to input control signal, mechanical limits
  • Over torque protection by torque test function of smart full potted controller
  • Heavy duty motor with thermal overload protection
  • All metal gears with self-locking worm gear
  • Auto-calibrating with continuously output position monitoring signal as standard
  • Multi input signal switchable in one smart control pack
  • Fully potted resin plastic packaged controller resistance to vibration and moisture
  • Standard ISO5211 multi-flange valve mounting
  • Manual override with wrench or handwheel
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL modulating electric actuators are equipped with a compact smart controller that supports multiple input signal options to meet different application requirements.

Standard input signals include 4–20 mA and 2–10 V, with special configurations available for 4–20 mA and 1–5 V.

In industries where dual signal standards exist or system upgrades are required, DCL smart modulating actuators can be directly replaced without modifying the existing control system, ensuring seamless integration and cost efficiency.

All actuators are rigorously tested and certified by CSA in compliance with UL and CSA standards.

They are capable of up to 1,200 starts per hour and more than 200,000 total operating cycles throughout their service life under rated torque conditions.

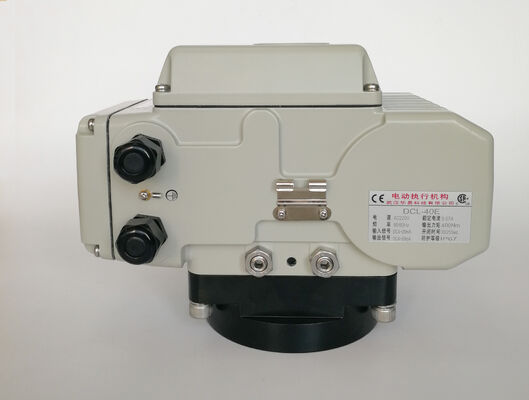

Electric Positioning 400Nm 30S Quarter Turn Actuator 0

Electric Positioning 400Nm 30S Quarter Turn Actuator 1
