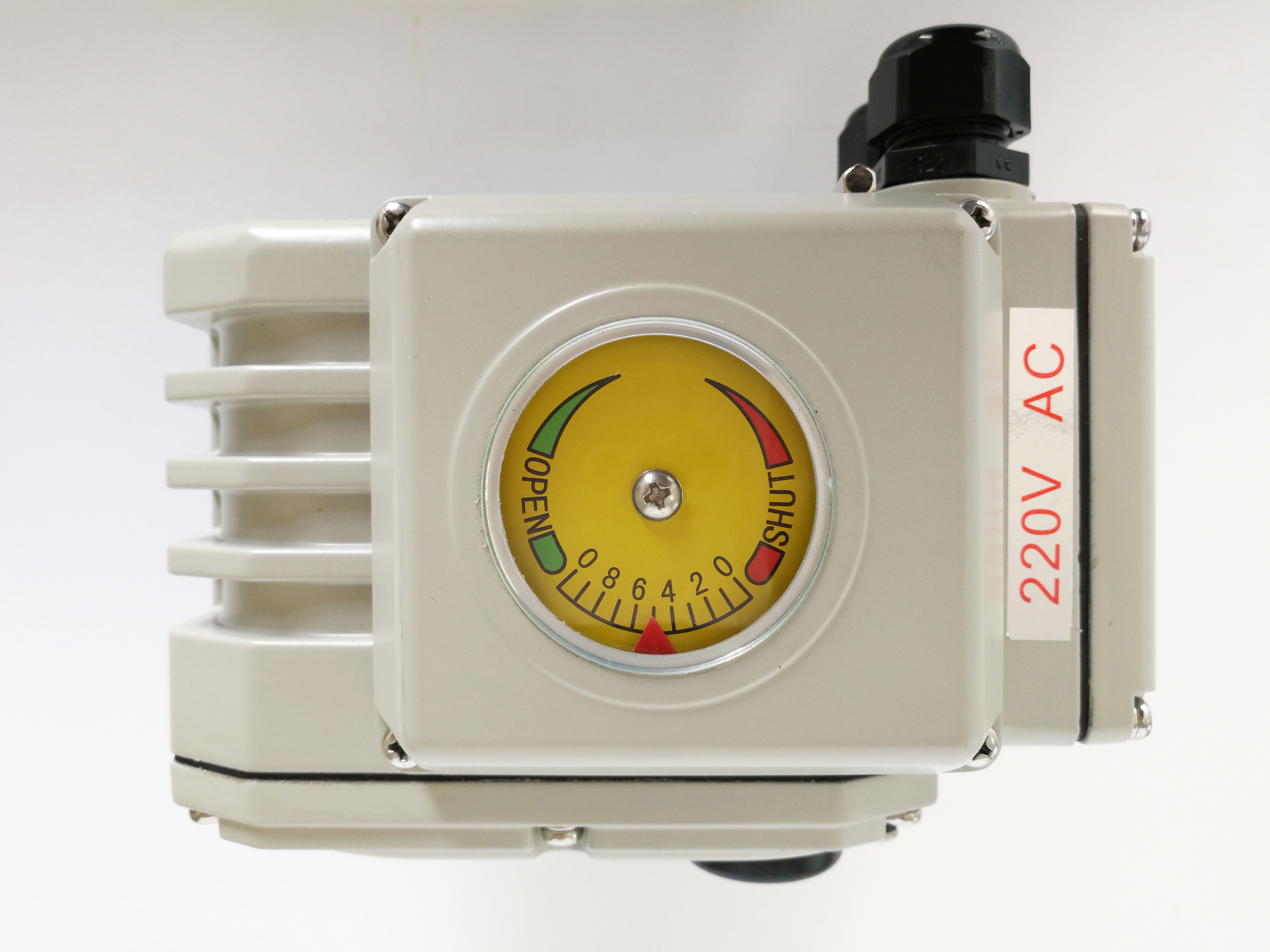

CSA IP67 Compact 90° AC24V 200Nm Smart Electric Actuator

  • CSA IP67 Compact 90° AC24V 200Nm Smart Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02E/05E/10E/20E/40E/60E/100E/160E/250E
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000 PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Installation Angle 360°
Input Signal 4-20mA Or 2-10V / 1-5V Optional Output Signal 4-20mA
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Total Weight 2.5KG To 20KG
Motor Power 10W To 140W Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC
Leave a Message
Product Description

Over torque protection compact smart electric actuator/torque test control

DCL-05E~250E parameters.pdf

Features

  • Quarter turn with mechanical limits
  • Integral design of Motor/control box/housing to make whole actuator compact
  • Over torque protection by torque test function of smart full potted controller
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • Heavy duty motor with thermal overload protection
  • Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
  • Valve position indicator/flat indicator or convex indicator available
  • Manual override with wrench or handwheel
  • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-200E DCL-300E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 2000Nm 3000Nm
Acting Time 20S 30S 30S 30S 45S 30S 90S 110S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.

Description

The DCL Smart Modulating Electric Actuator is integrated with an Electric Positioning System (EPS) positioner, wherein the rotational angle of the output drive shaft maintains a precise linear proportional relationship with the input control signal — available in 4–20 mA, 2–10 V, or 1–5 V signal protocols.

The intelligent controller also features real-time motor current monitoring functionality. In the event of motor stalling, the operating current will experience an abrupt, significant surge. The controller is programmed to cut off the motor power supply precisely 3 seconds after detecting this current surge. This constitutes an electronic over-torque protection mechanism, which offers superior precision compared to traditional mechanical over-torque protection solutions.

All actuators have undergone rigorous third-party certification testing by CSA, in full compliance with both UL and CSA industry standards. The continuous duty cycle rating for the entire product series exceeds 70%. Additionally, the EPS positioner system incorporates an automatic self-calibration function, which effectively eliminates the "hunting" phenomenon (oscillation around the set position) and provides a standard output signal for real-time position monitoring.

CSA IP67 Compact 90° AC24V 200Nm Smart Electric Actuator 0 CSA IP67 Compact 90° AC24V 200Nm Smart Electric Actuator 1
Tags:

DCL smart electric actuator

IP67 Smart Electric Actuator

CSA Quarter turn electric actuator
